Installation Procedure

  1. Install the bulbs into the cluster by inserting the bulb and base assembly, and turning the bulb 1/2 turn clockwise.

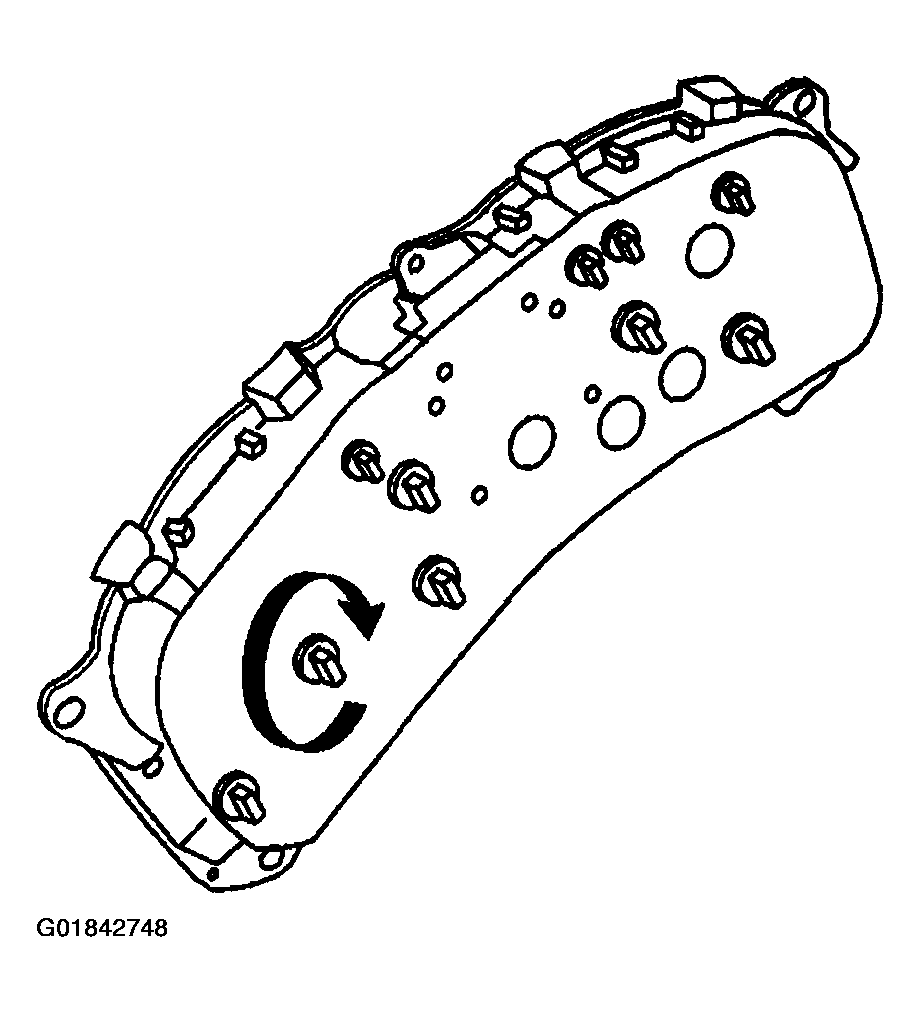

    Fig 1: Installing Bulb & Base Assembly
    G01842748Courtesy of GENERAL MOTORS CORP.
  2. Carefully snap the rear cover plate to the IPC.

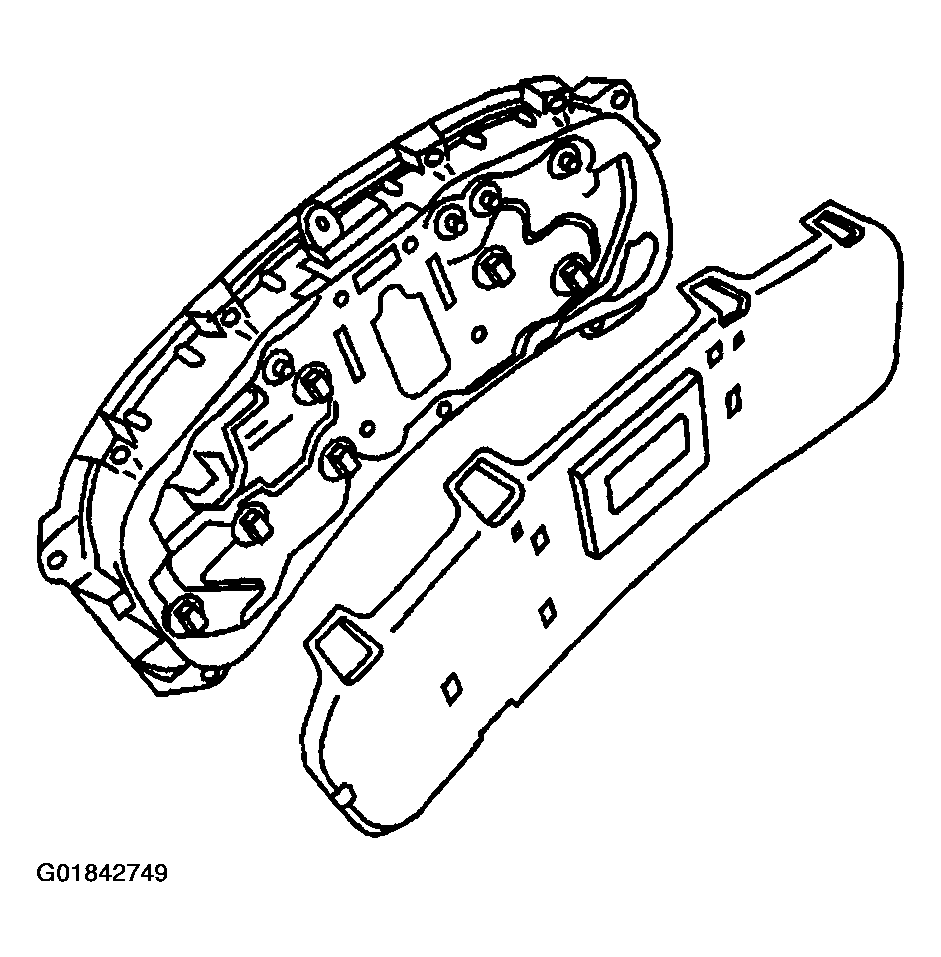

    Fig 2: Identifying IPC Rear Cover Plate
    G01842749Courtesy of GENERAL MOTORS CORP.
  3. Install the IPC. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT in INSTRUMENT PANEL, GAGES & CONSOLE article.
  4. Connect the negative battery cable.
