Removal Procedure

  1. Remove the screws that retain the high mount stop lamp to the roof.
  2. Remove the high mount stop lamp from the vehicle.
  3. Disconnect the electrical connector.

    Pull the body wiring harness connector through the hole in the roof and disconnect.

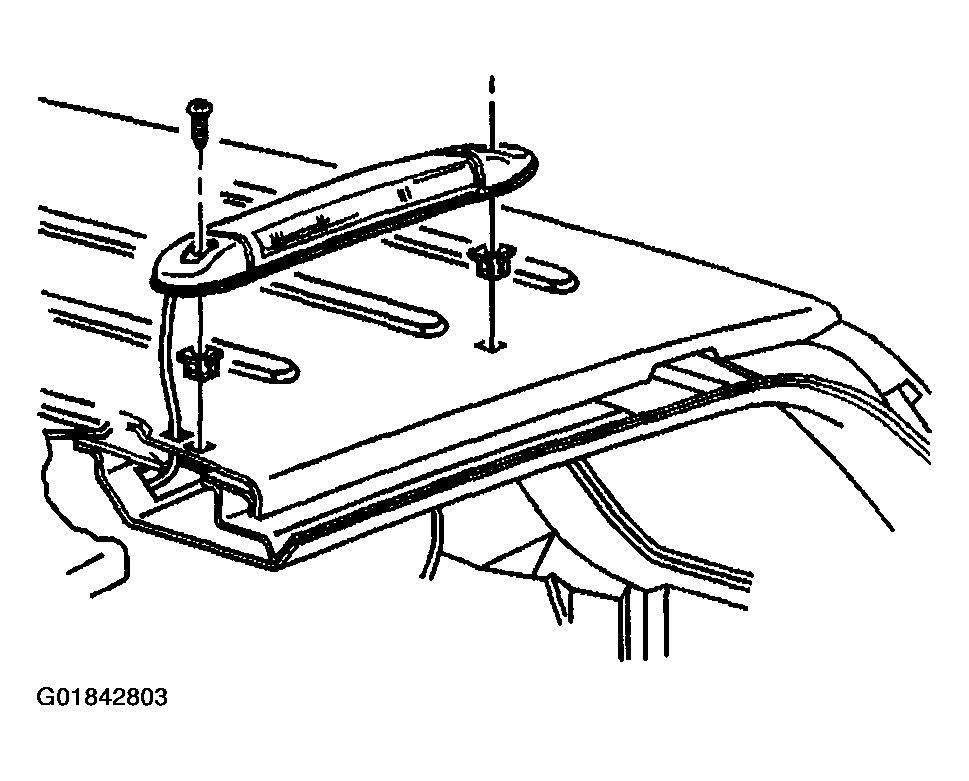

    Fig 1: Locating High Mount Stop Lamp Components (Utility - Roof Mounted)
    G01842803Courtesy of GENERAL MOTORS CORP.
