Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION in GM VEHICLES CAUTIONS & NOTICES article.
  1. Disconnect the battery negative cable.
  2. Squeeze the release tabs in order to remove the dome lamp lens.
  3. Remove the dome lamp bulb.
  4. Remove the screws that retain the dome lamp base to the high mount stop lamp from inside the vehicle.

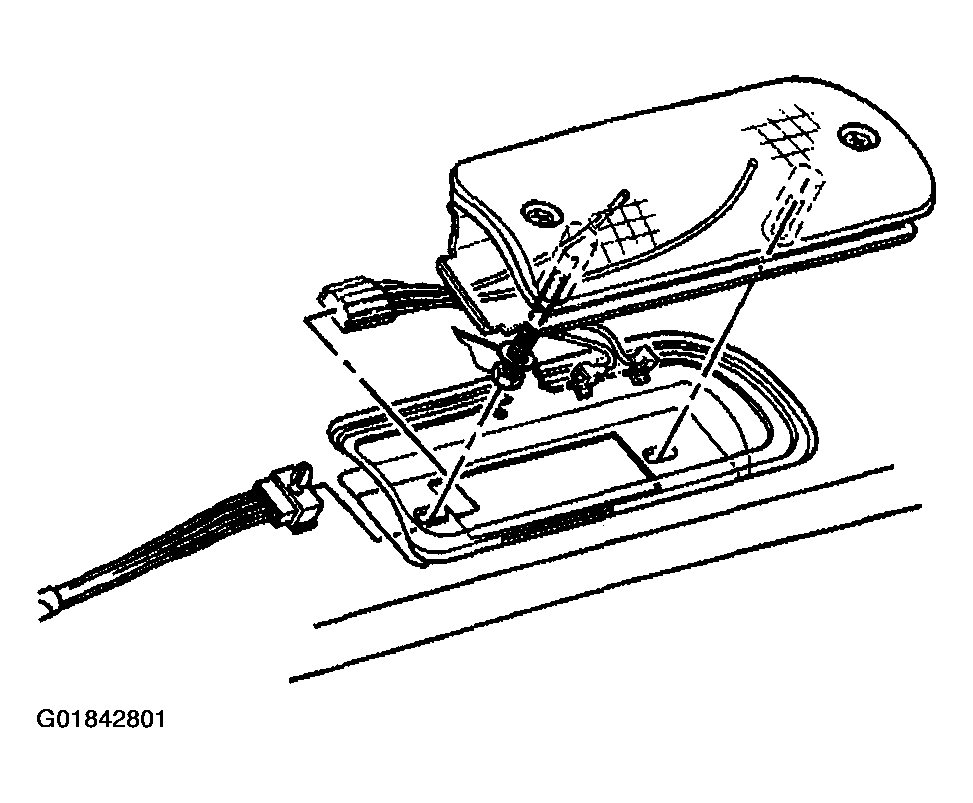

    Fig 1: Identifying High Mounted Stop Lamp Components (Pickup)
    G01842801Courtesy of GENERAL MOTORS CORP.
  5. Remove the dome lamp base from the vehicle.
  6. Remove the body wiring harness from the dome lamp/high mount stop lamp.
  7. Remove the high mount stop lamp from the vehicle.
