Installation Procedure

  1. Install the high mount stop lamp to the vehicle.
  2. Install the body wiring harness to the dome lamp/high mount stop lamp.
  3. Install the dome lamp base to the vehicle.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  4. Install the screws that retain the dome lamp base to the high mount stop lamp from inside the vehicle.

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).

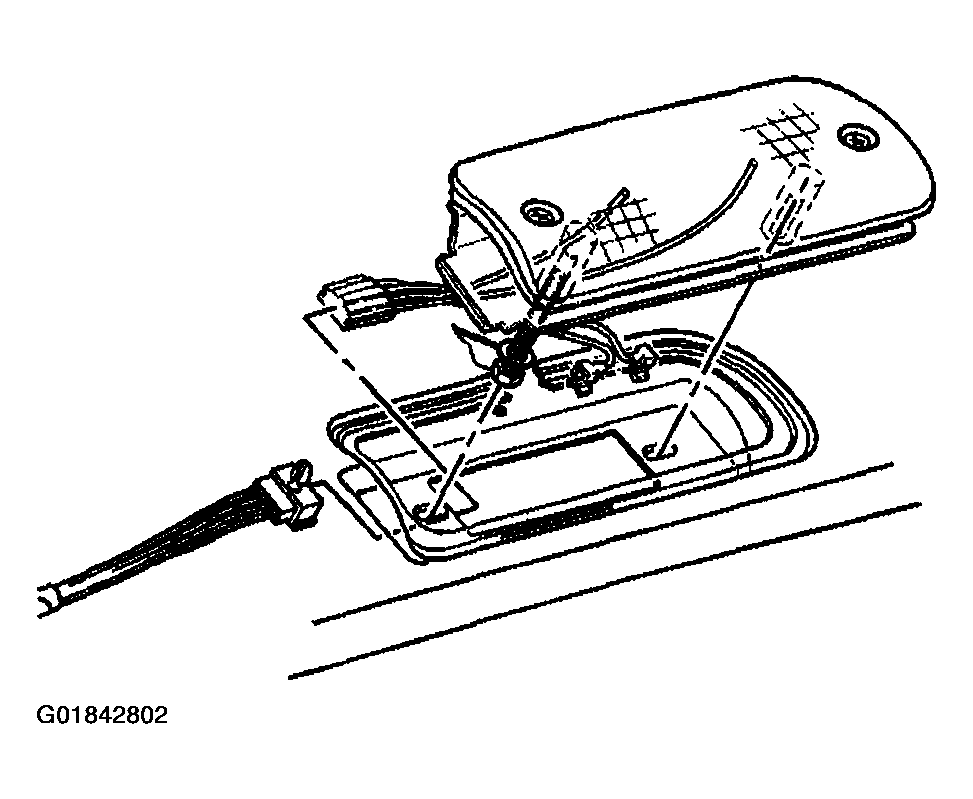

    Fig 1: Identifying High Mounted Stop Lamp Components (Pickup)
    G01842802Courtesy of GENERAL MOTORS CORP.
  5. Install the dome lamp bulb.
  6. Squeeze the lens in order to install the dome lamp lens.
  7. Connect the battery negative cable.
