Removal Procedure

  1. Ensure that the headlamp switch is OFF and that the ignition switch is in the LOCK position.
  2. Remove the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - IP ACCESSORY in INSTRUMENT PANEL, GAGES & CONSOLE article.
  3. Disconnect the electrical connectors.

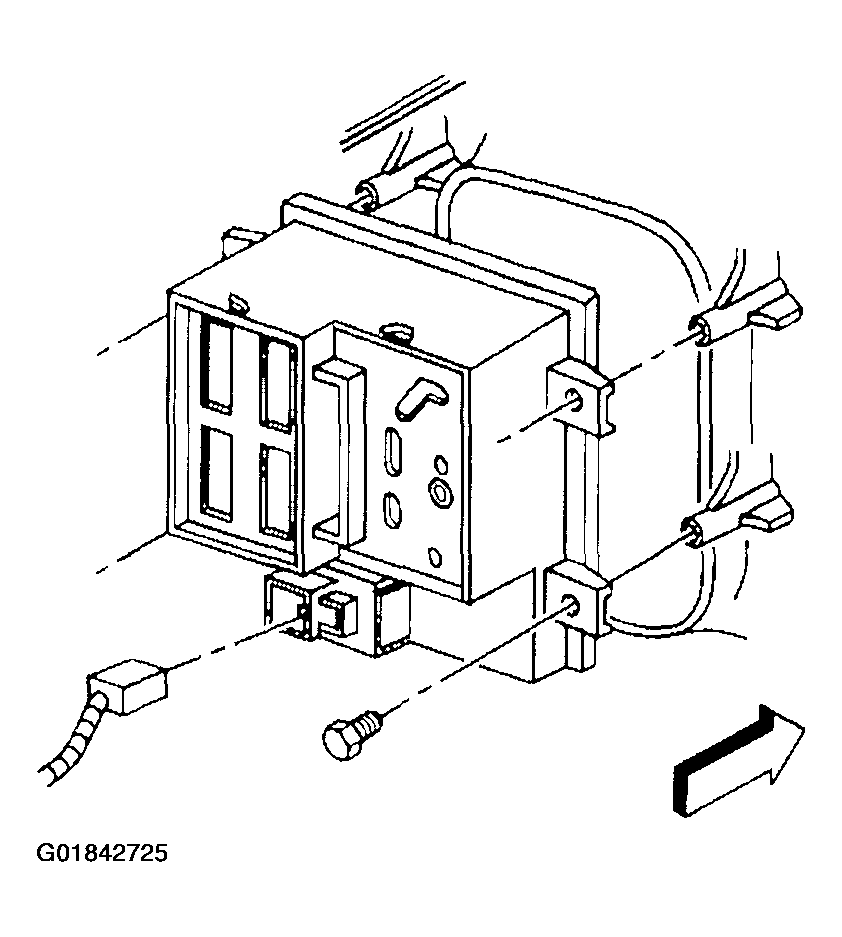

    Fig 1: Locating Headlamp Switch Components
    G01842725Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws that retain the headlamp switch panel to the instrument panel accessory trim plate.
  5. Remove the headlamp switch panel from the instrument panel accessory trim plate.
