Installation Procedure

  1. Install the headlamp switch panel to the instrument panel accessory trim plate.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  2. Install the screws that retain the headlamp switch panel to the instrument cluster bezel.

    Tighten

    Tighten the screws to 1 N.m (9 lb in).

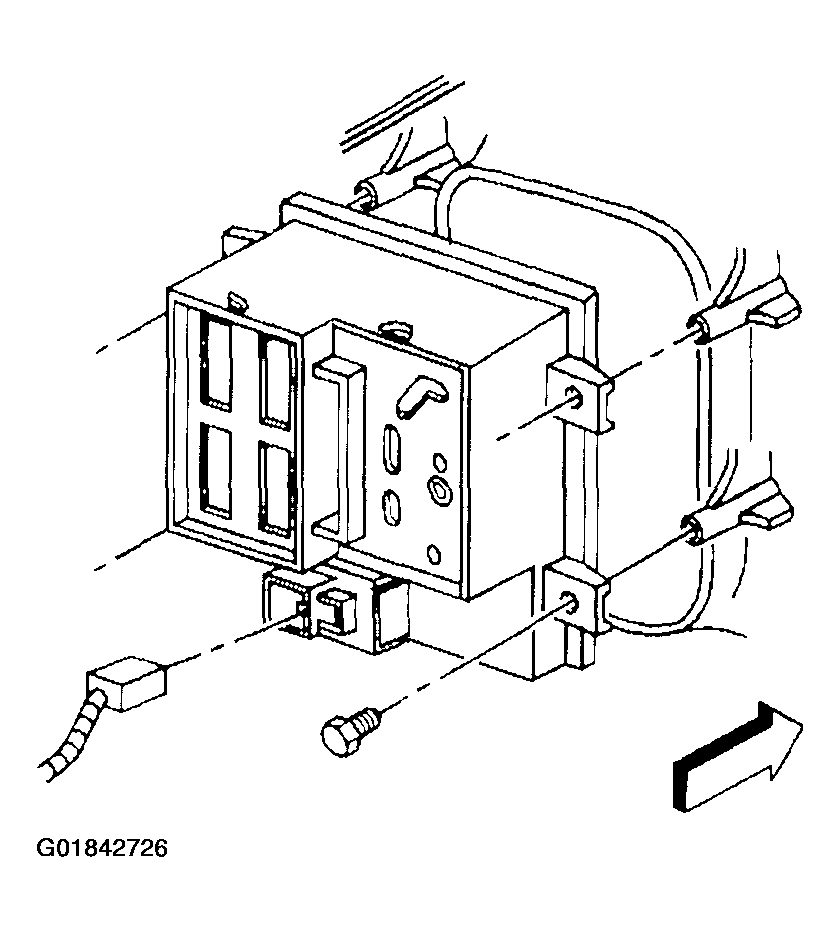

    Fig 1: Locating Headlamp Switch Components
    G01842726Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connectors.
  4. Install the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - IP ACCESSORY in INSTRUMENT PANEL, GAGES & CONSOLE article.
