Installation Procedure

  1. Push in and rotate the bulb 1/4 turn clockwise in order to install the bulb to the headlamp.
  2. Connect the headlamp electrical connectors.

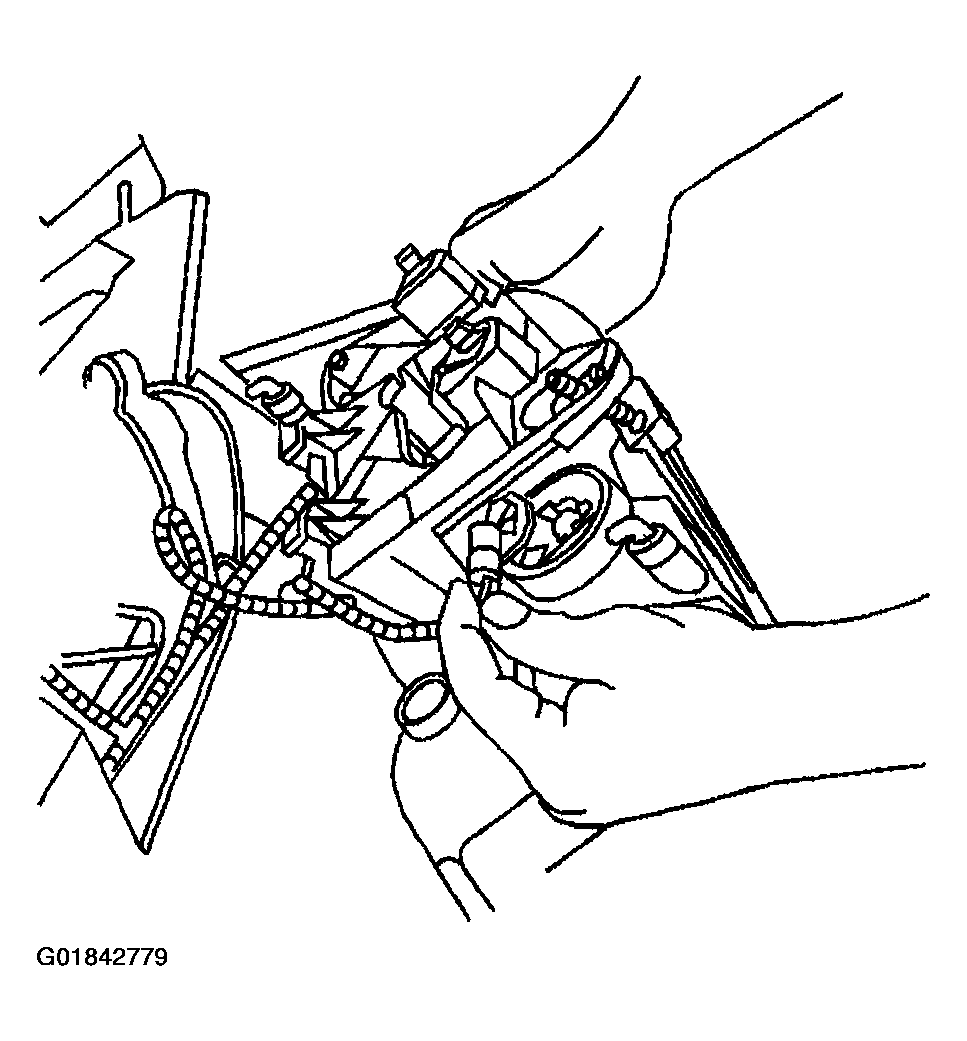

    Fig 1: Locating Headlamp Electrical Connectors
    G01842779Courtesy of GENERAL MOTORS CORP.
  3. Install the headlamp to the vehicle.

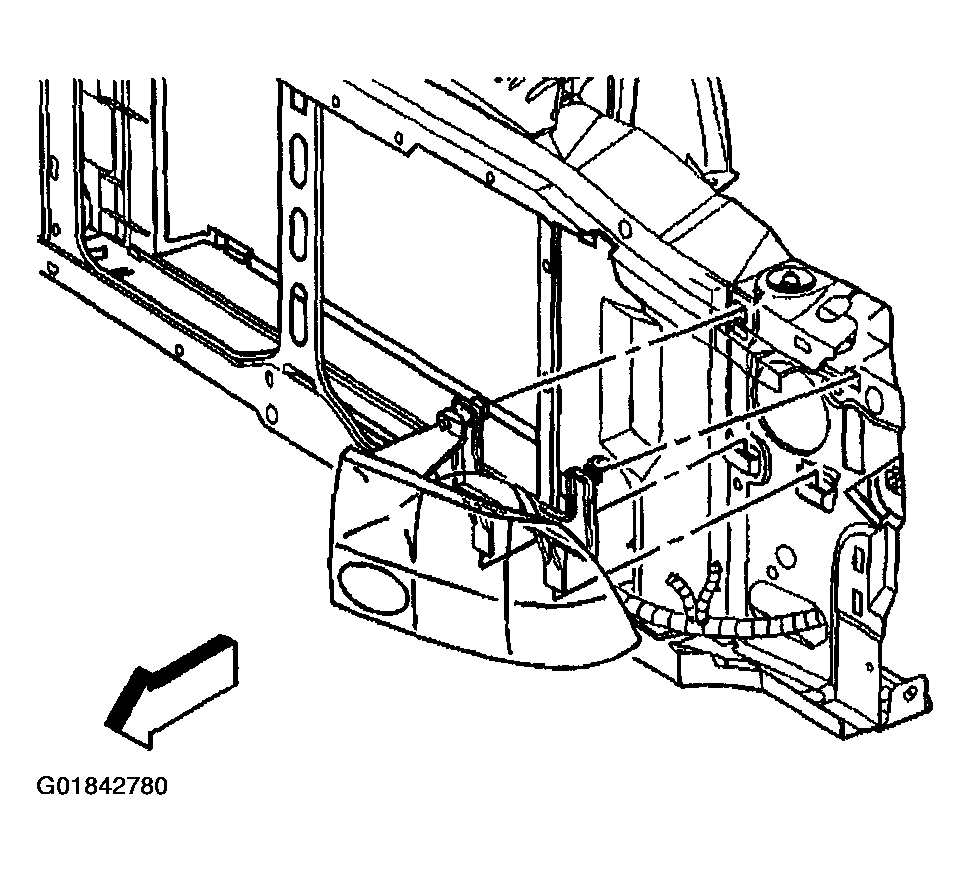

    Fig 2: Removing/Installing Headlamp
    G01842780Courtesy of GENERAL MOTORS CORP.
  4. Install the headlamp retainers by pushing down and inward.

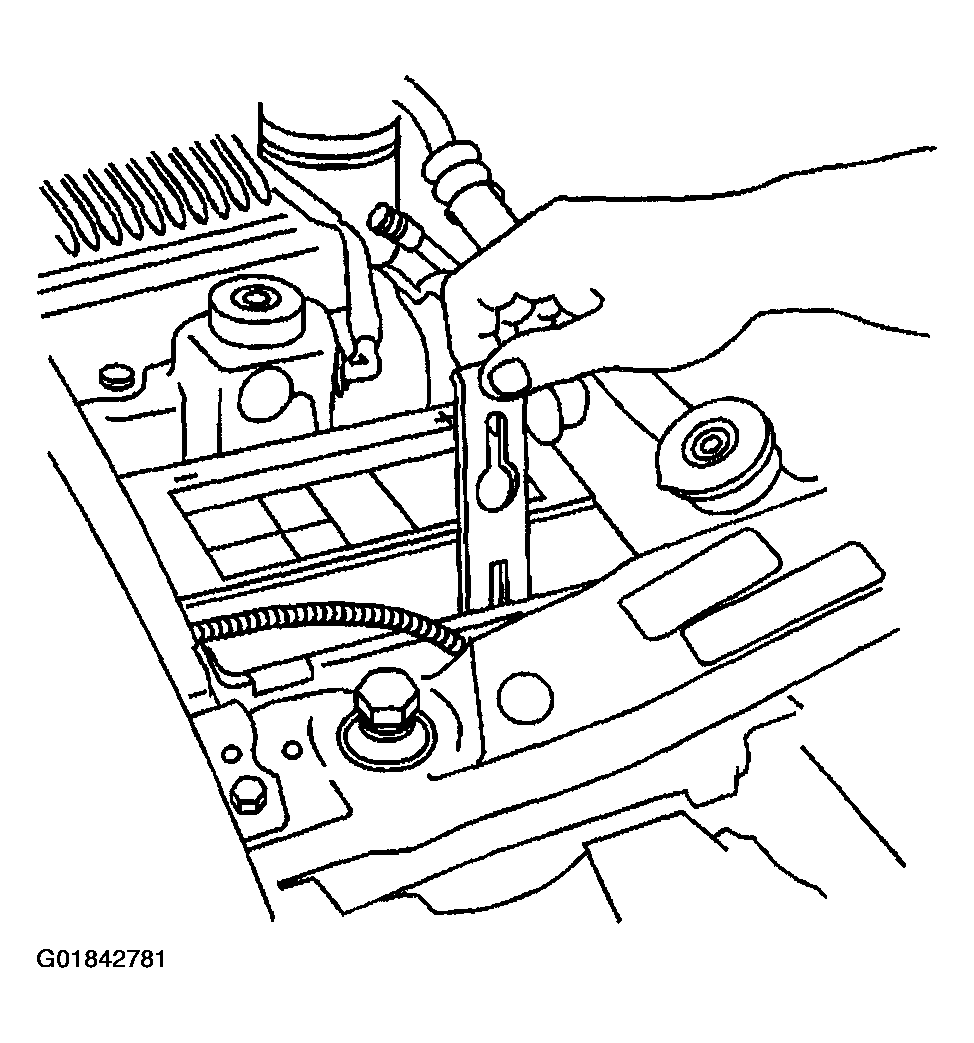

    Fig 3: Installing Headlamp Retainers
    G01842781Courtesy of GENERAL MOTORS CORP.
