Removal Procedure

IMPORTANT: Ensure that the headlamp switch is OFF and that the ignition switch is in the LOCK position.
  1. Remove the headlamp. Refer to HEADLAMP REPLACEMENT .
  2. Remove the two screws that retain the headlamp leveling actuator plunger to the headlamp bracket.
  3. Rotate and remove the headlamp leveling actuator from the headlamp bracket.

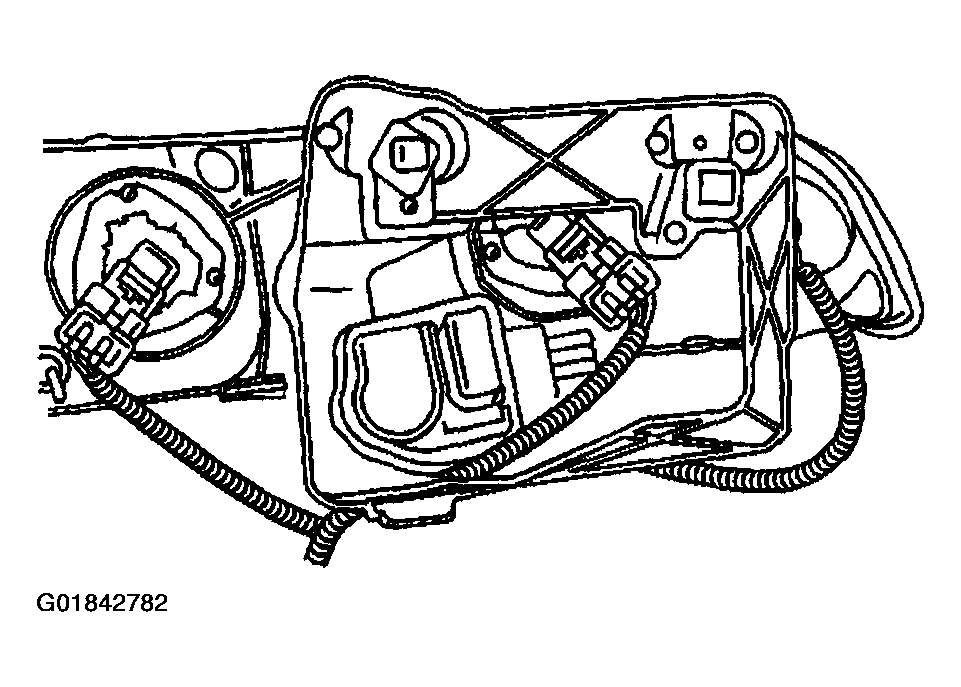

    Fig 1: Identifying Headlamp Leveling Actuator
    G01842782Courtesy of GENERAL MOTORS CORP.
