Removal Procedure

Open the glove box to expose the glove box retaining tab (1).

Fig 1: Locating Glove Box Retaining Tab
Courtesy of GENERAL MOTORS CORP.
Lift the retaining tab and allow the glove box to hang freely.
Using a suitable flat-bladed tool, release the plastic retainer that retains the hazard/turn signal flasher (1) to the C203 body harness connector (2).

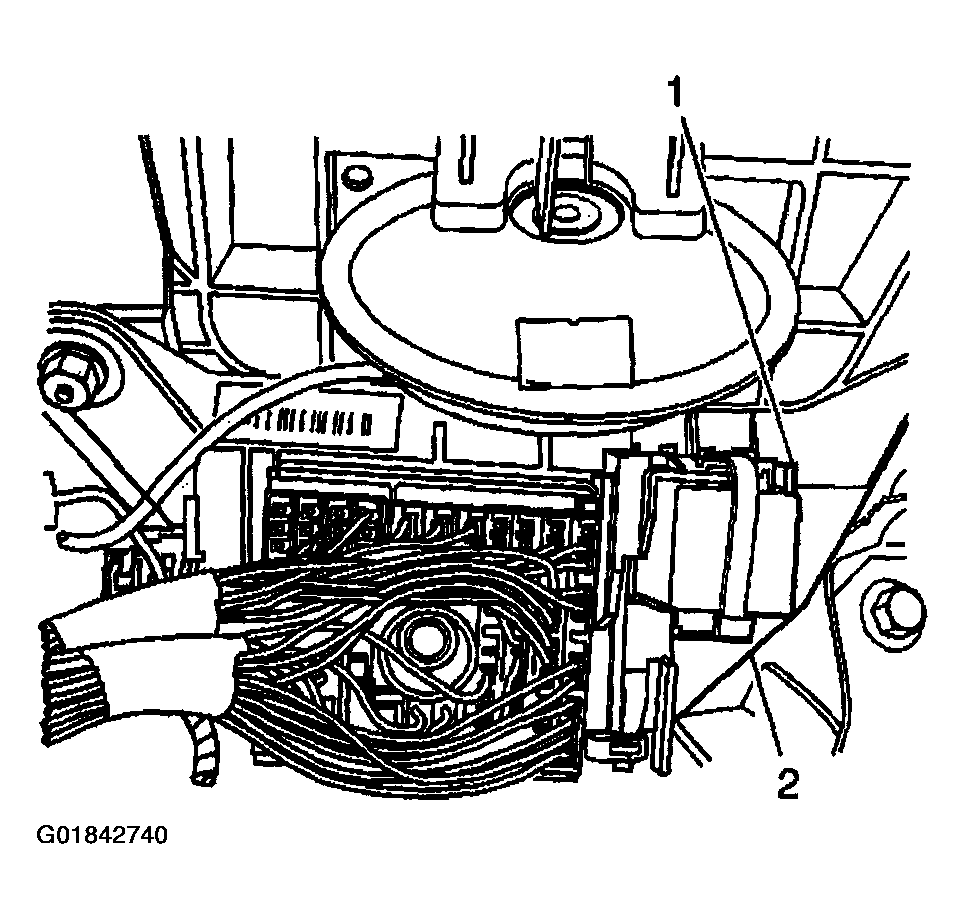

Fig 2: Locating Hazard/Turn Signal Flasher
Courtesy of GENERAL MOTORS CORP.
Remove the hazard/turn signal flasher (1).
