Installation Procedure

  1. Install the hazard/turn signal flasher (1) to the C203 body harness connector (2).

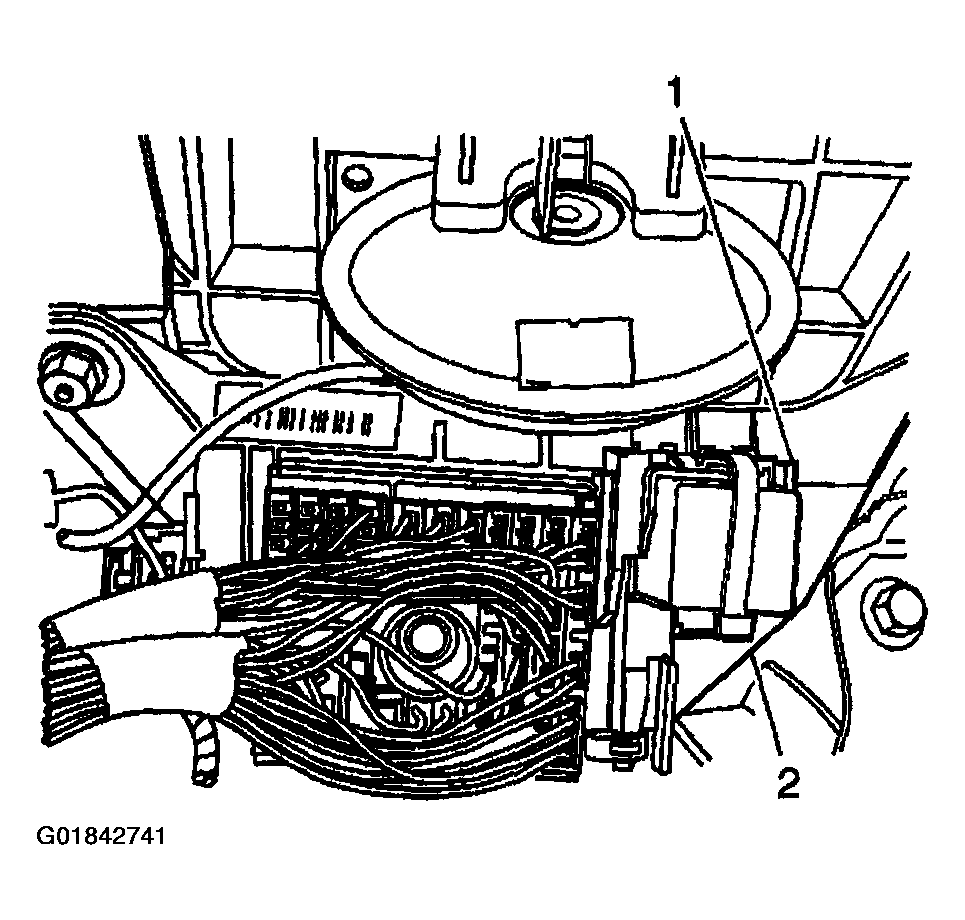

    Fig 1: Locating Hazard/Turn Signal Flasher
    G01842741Courtesy of GENERAL MOTORS CORP.
  2. Install the plastic retainer and ensure the hazard/turn signal flasher will not work its way loose over time.
  3. Lift the glove box retaining tab (1) to install the glove box to its original position.
    Fig 2: Locating Glove Box Retaining Tab
    G01842742Courtesy of GENERAL MOTORS CORP.
  4. Close the glove box.
