Installation Procedure

  1. Install the bulb to the front foglamp base.
  2. Install the front foglamp to the turn signal lamp assembly.
  3. Install the front foglamp adjustment screw.
  4. Install the turn signal lamp assembly with the front foglamp to the grille.

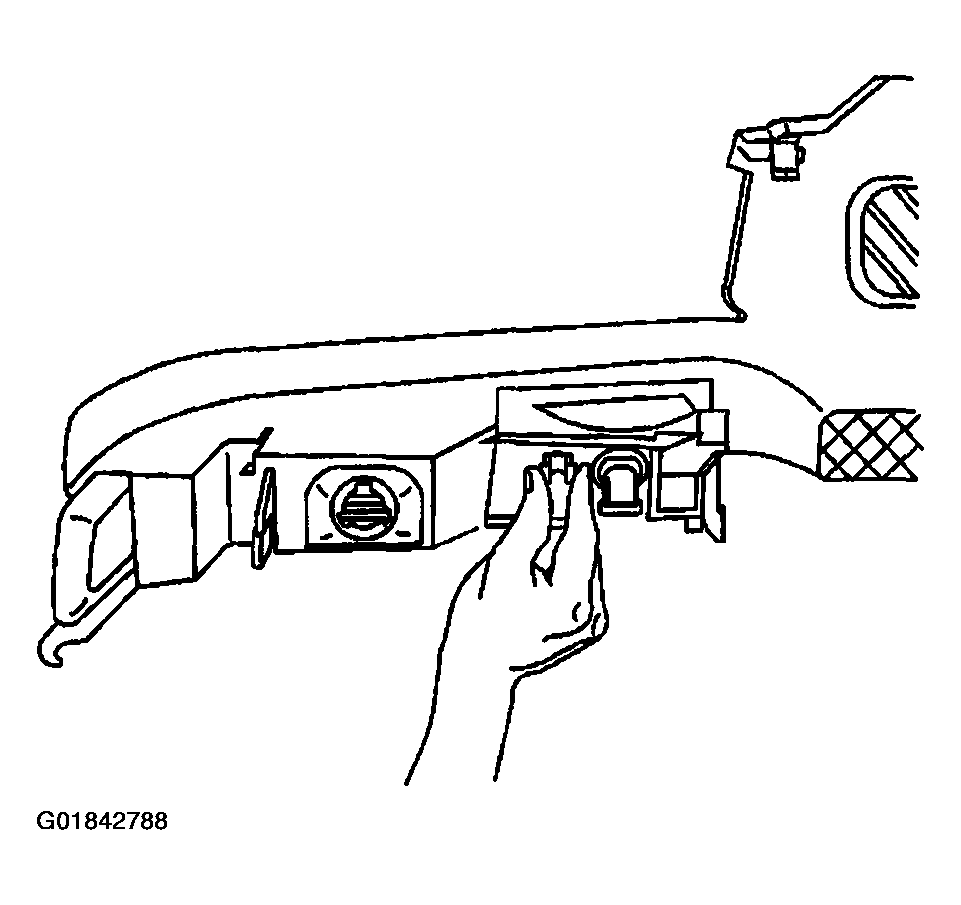

    Fig 1: Locating Front Fog Lamp - Park/Turn Signal Assembly Retainer
    G01842788Courtesy of GENERAL MOTORS CORP.
  5. Install the grille. Refer to GRILLE REPLACEMENT (GMC) or GRILLE REPLACEMENT (CHEVROLET) in EXTERIOR TRIM article.
  6. Install the headlamp. Refer to HEADLAMP REPLACEMENT .
  7. Adjust the front foglamp. Refer to FOG LAMP AIMING PROCEDURE .
