Removal Procedure

  1. Ensure that the headlamp switch is in the OFF position.
  2. Ensure that the ignition switch is in the LOCK position.
  3. Open the endgate or liftgate.
  4. Remove the screws that retain the tail lamp assembly to the vehicle.

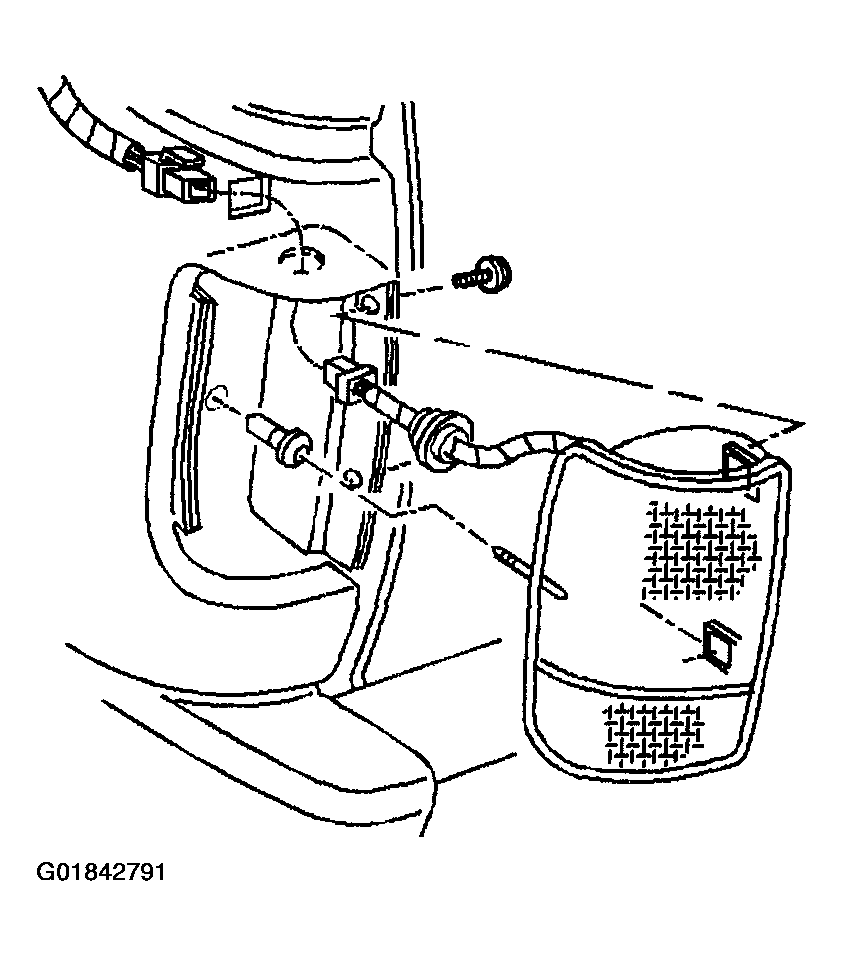

    Fig 1: Identifying Rear Foglamp Assembly Components
    G01842791Courtesy of GENERAL MOTORS CORP.
  5. Rotate the fog lamp bulb socket 1/4 turn counter-clockwise in order to remove the bulb socket from the tail lamp assembly.
  6. Remove the bulb from the socket.
