Removal Procedure

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in GENERAL INFORMATION.
  2. Ensure that the foglamp switch is in the OFF position.
  3. Disconnect the electrical connector.
  4. Remove the push-pins.

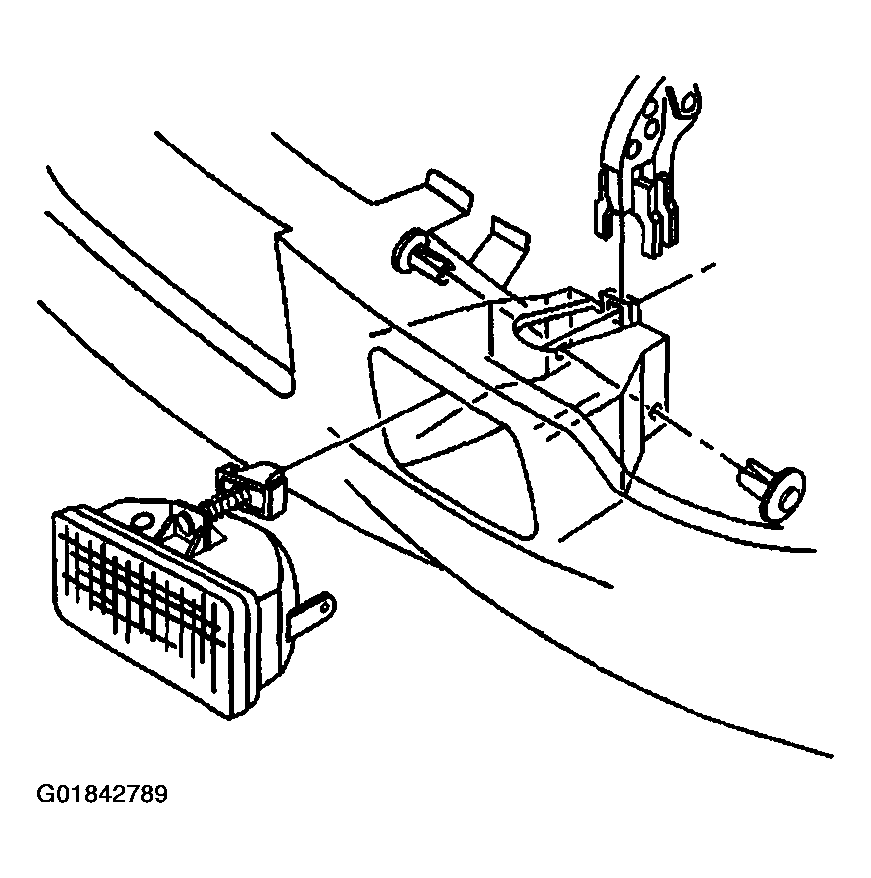

    Fig 1: Identifying Foglamp Assembly Components
    G01842789Courtesy of GENERAL MOTORS CORP.
  5. Remove the adjustment screw.
  6. Remove the foglamp from the vehicle.
