Installation Procedure

  1. Install the foglamp to the vehicle.
  2. Install the adjustment screws.
  3. Install the push-pins.

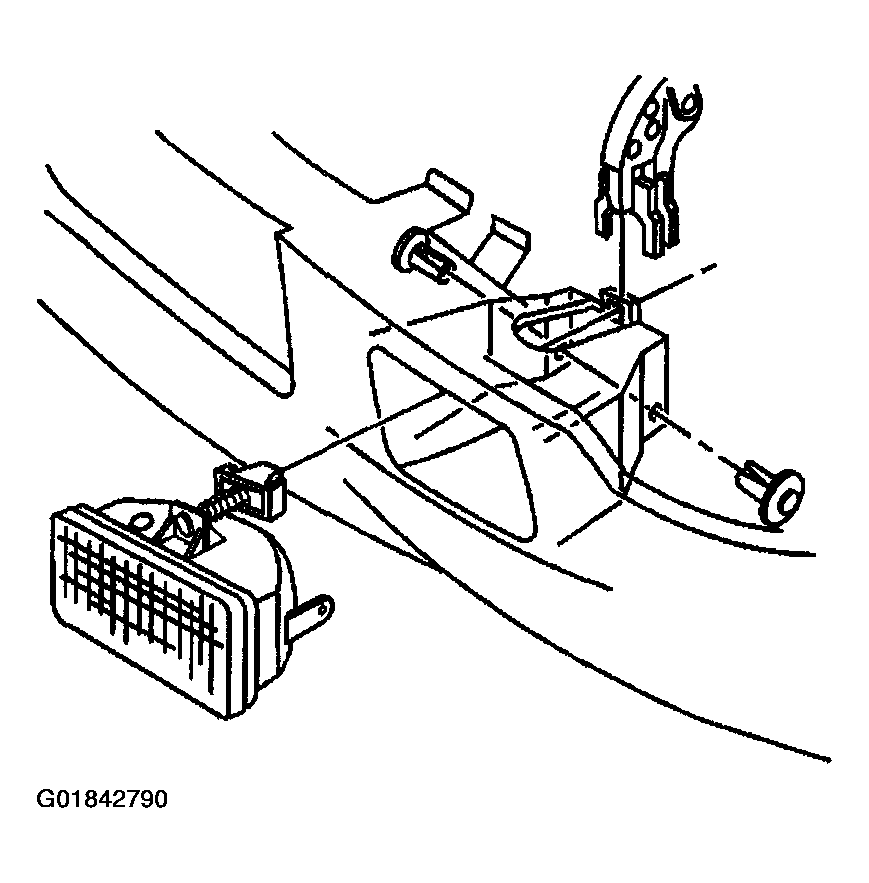

    Fig 1: Identifying Foglamp Assembly Components
    G01842790Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector.
  5. Lower the vehicle.
  6. Re-aim the fog lights. Refer to FOG LAMP AIMING PROCEDURE .
