Removal Procedure

  1. Open the hood.
  2. Remove the protective cover from the underhood fuse block.

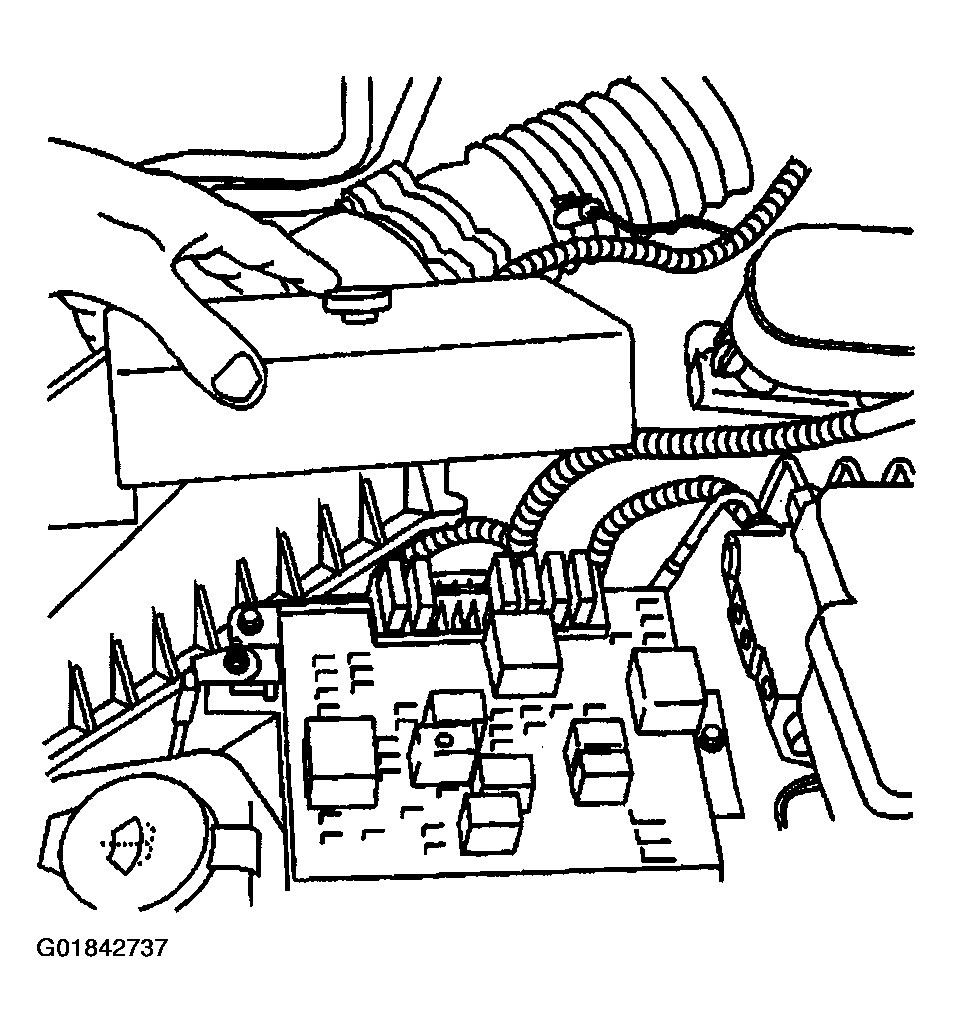

    Fig 1: Identifying Underhood Fuse Block Protective Cover
    G01842737Courtesy of GENERAL MOTORS CORP.
  3. Remove the fog lamp relay from the underhood fuse block.
