Installation Procedure

  1. Install the fog lamp relay to the underhood fuse block.
  2. Install the protective cover to the underhood fuse block.

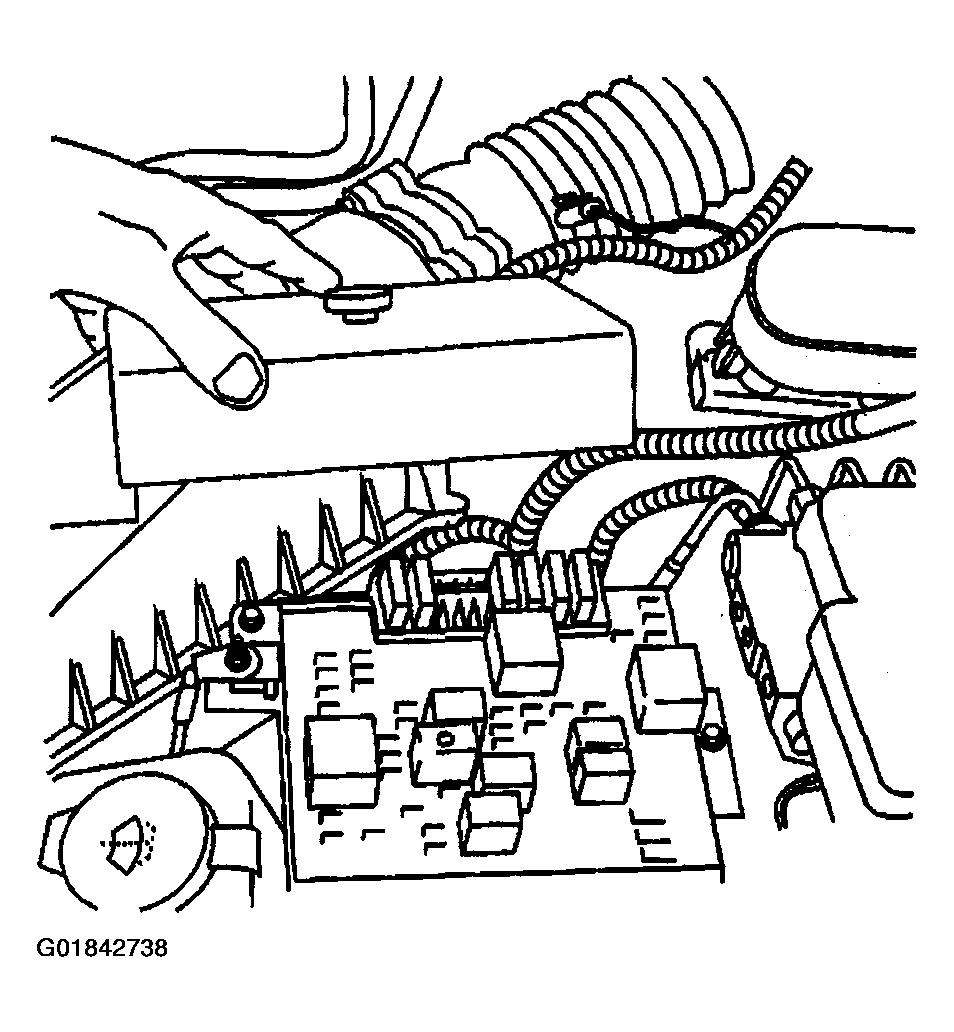

    Fig 1: Identifying Underhood Fuse Block Protective Cover
    G01842738Courtesy of GENERAL MOTORS CORP.
  3. Close the hood.
