Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION in GM VEHICLES CAUTIONS & NOTICES article.

Disconnect the battery negative cable.
Use a flat bladed tool in order to remove the door jamb switch from the rear door hinge-pillar.

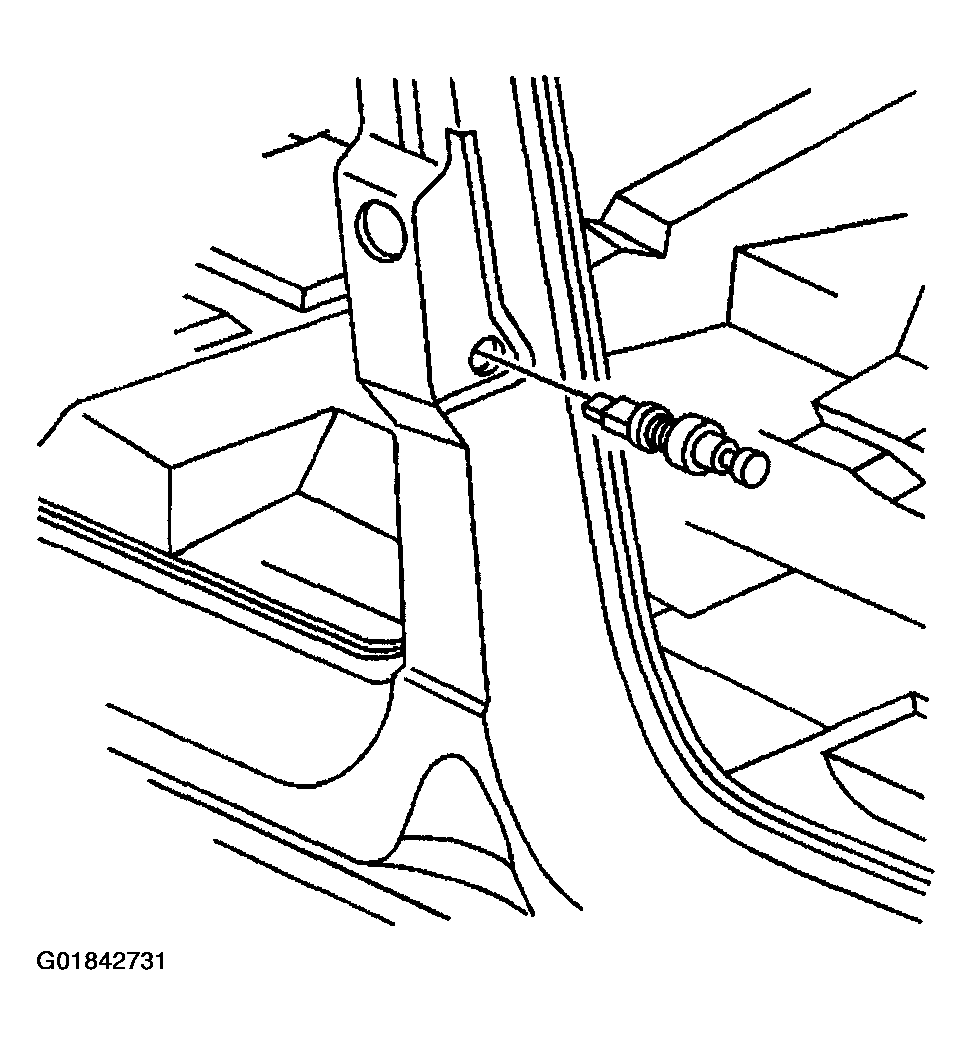

Fig 1: Locating Rear Door Jamb Switch
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector.
Tape the wires to the body in order to prevent them from dropping into the rear door hinge-pillar.
