Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION in GM VEHICLES CAUTIONS & NOTICES article.
  1. Disconnect the battery negative cable.
  2. Remove the instrument panel sound insulator (right side only). Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in INSTRUMENT PANEL, GAGES & CONSOLE article.
  3. Remove the instrument panel sound insulator (left side only). Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in INSTRUMENT PANEL, GAGES & CONSOLE article.
  4. Reach up and disconnect the electrical connector.
  5. Squeeze the locking tabs in order to remove the door jamb switch from the vehicle.
    Fig 1: Locating Right Door Jamb Switch
    G01842727Courtesy of GENERAL MOTORS CORP.

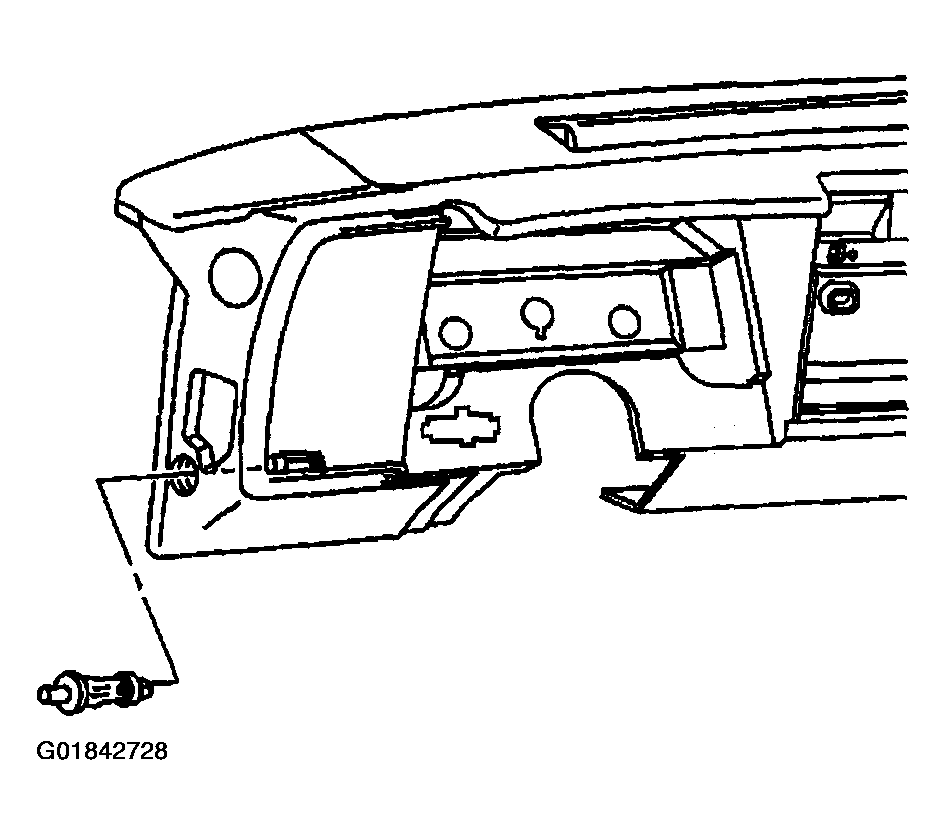

    Fig 2: Locating Left Door Jamb Switch
    G01842728Courtesy of GENERAL MOTORS CORP.
