Installation Procedure

  1. Install the dome lamp base to the vehicle.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  2. Install the screws that retain the dome lamp base to the high mount stoplamp from inside of the vehicle.

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).

  3. Install the dome lamp bulb.

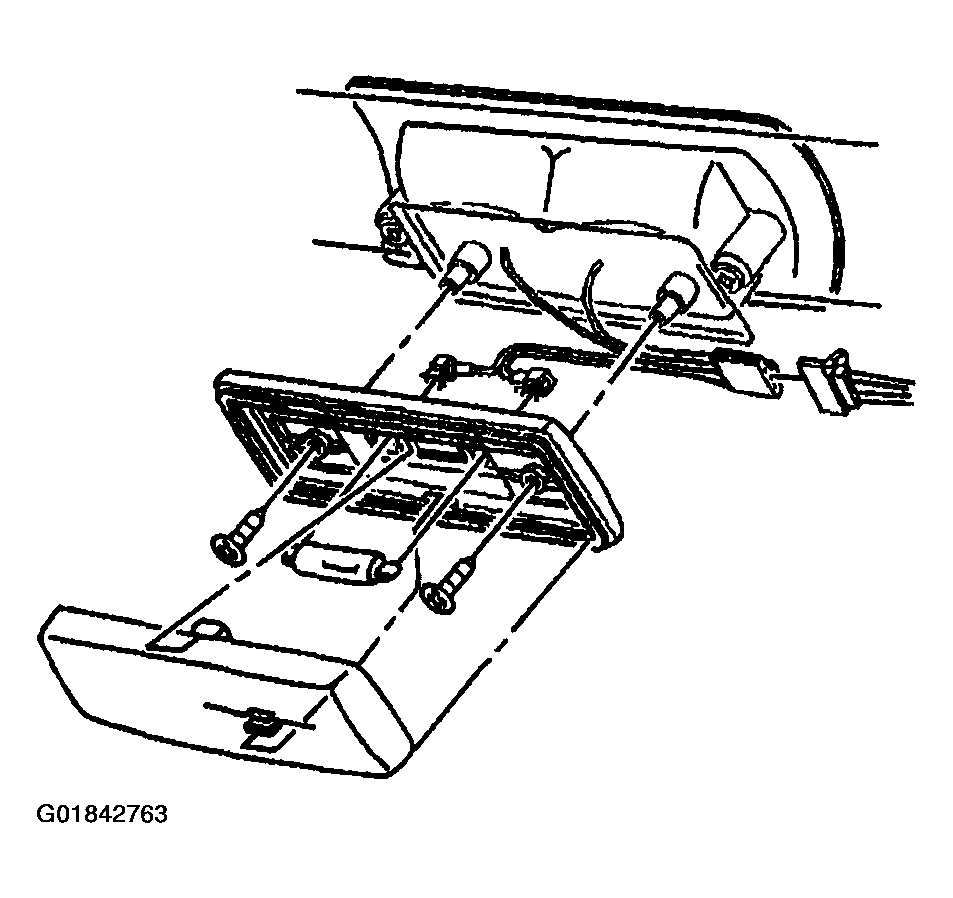

    Fig 1: Identifying Dome Lamp Assembly Components
    G01842763Courtesy of GENERAL MOTORS CORP.
  4. Install the dome lamp lens.

    Squeeze the lens in order to engage the tabs.

  5. Install the battery negative cable.
