Removal Procedure

On utility vehicles, 2 different lamps are used. One type of dome lamp is incorporated to the overhead console. On utility vehicles without an overhead console, a separate unit is used.

1. Disconnect the battery negative cable.
2. Use a flat-bladed tool in order to remove the dome lamp lens from the overhead console.

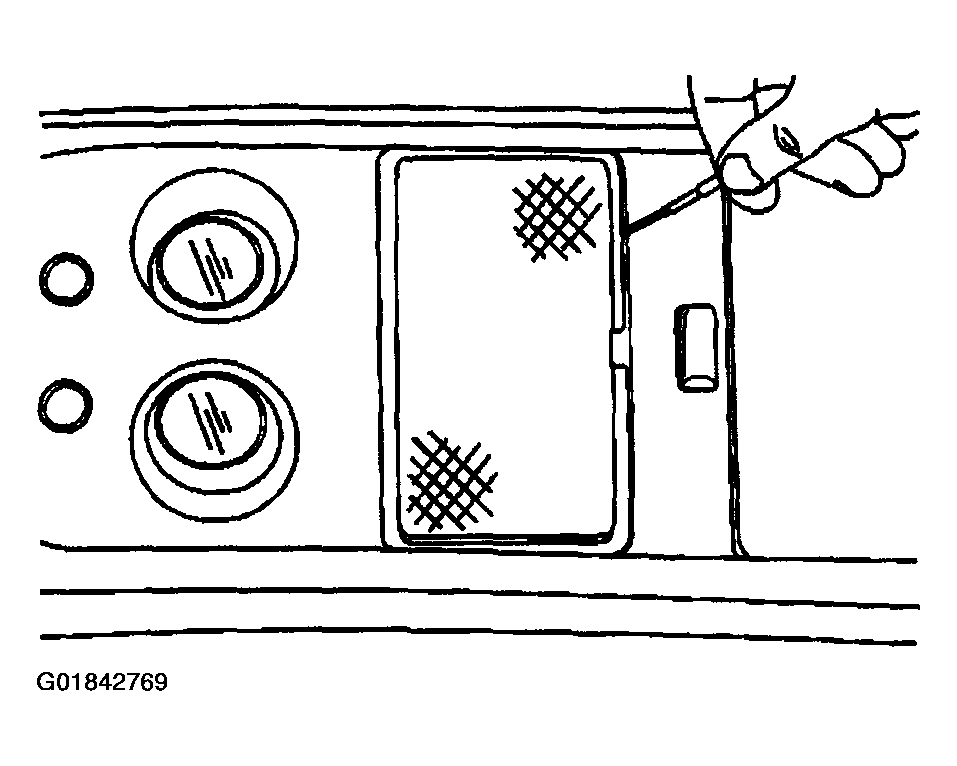

   Fig 1: Removing Overhead Console Dome Lamp Lens

   Courtesy of GENERAL MOTORS CORP.
3. Remove the bulb from the overhead console.
   Fig 2: Locating Overhead Console Bulb

   Courtesy of GENERAL MOTORS CORP.
