Home >> Chevrolet >> 2002 >> Blazer 4D Utility, 4WD, Part Time >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting Systems >> Repair Instructions >> Dome Lamp Bulb Replacement (With Sunroof) >> Removal Procedure

Removal Procedure

  1. Remove the dome lamp lens by carefully prying it out with a flat-bladed tool.
  2. Remove the bulb from the socket by pulling it down.

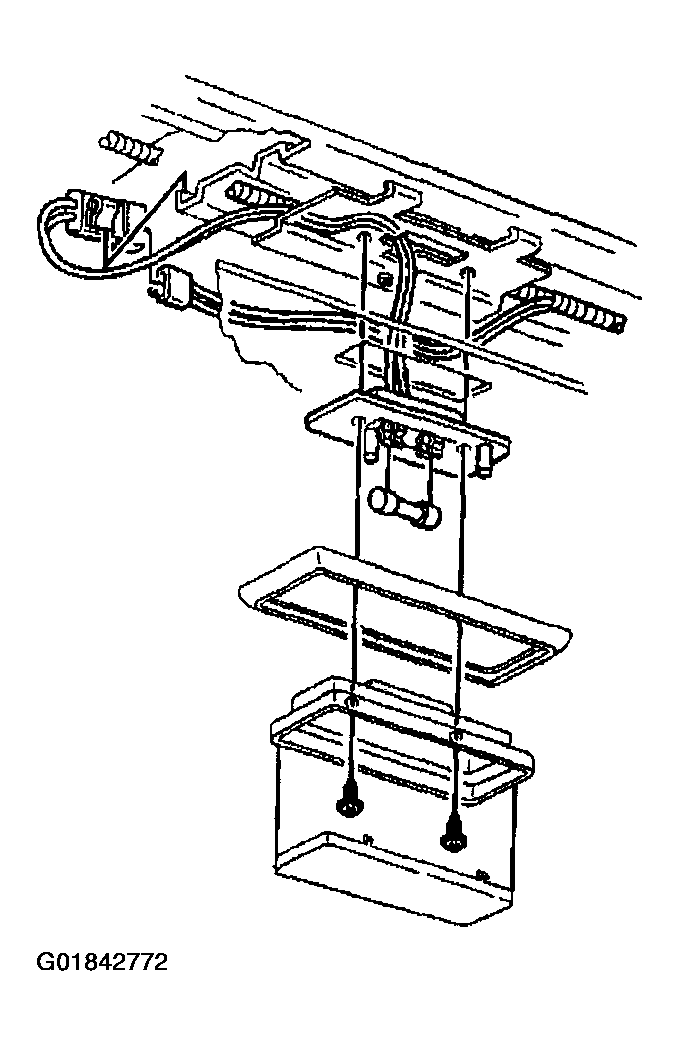

    Fig 1: Identifying Dome Lamp Assembly Components
    G01842772Courtesy of GENERAL MOTORS CORP.
