Removal Procedure

  1. Remove the front speaker grille from the vehicle. Refer to SPEAKER REPLACEMENT - FRONT in ENTERTAINMENT article.

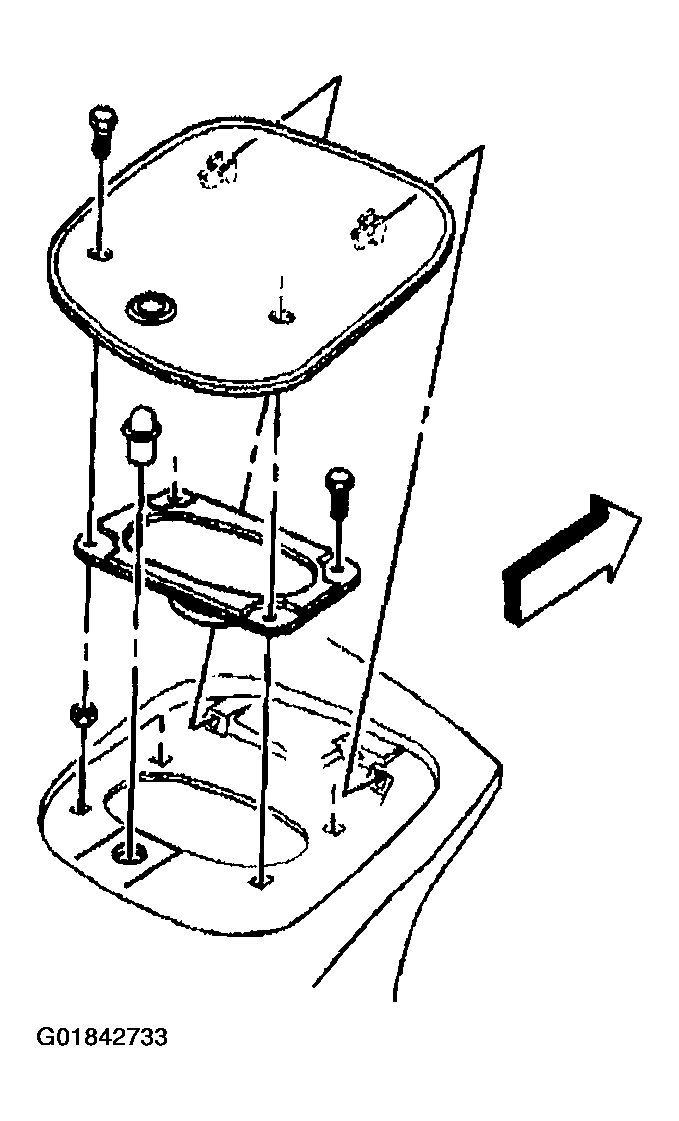

    Fig 1: Locating Front Speaker Grill & Ambient Light Sensor
    G01842733Courtesy of GENERAL MOTORS CORP.
  2. Turn the sensor counter-clockwise 1/4 turn in order to remove.
    Fig 2: Identifying Ambient Light Sensor
    G01842734Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connection from the DRL ambient light sensor.
