Removal Procedure

  1. Gently pry the lens from the bulb housing.

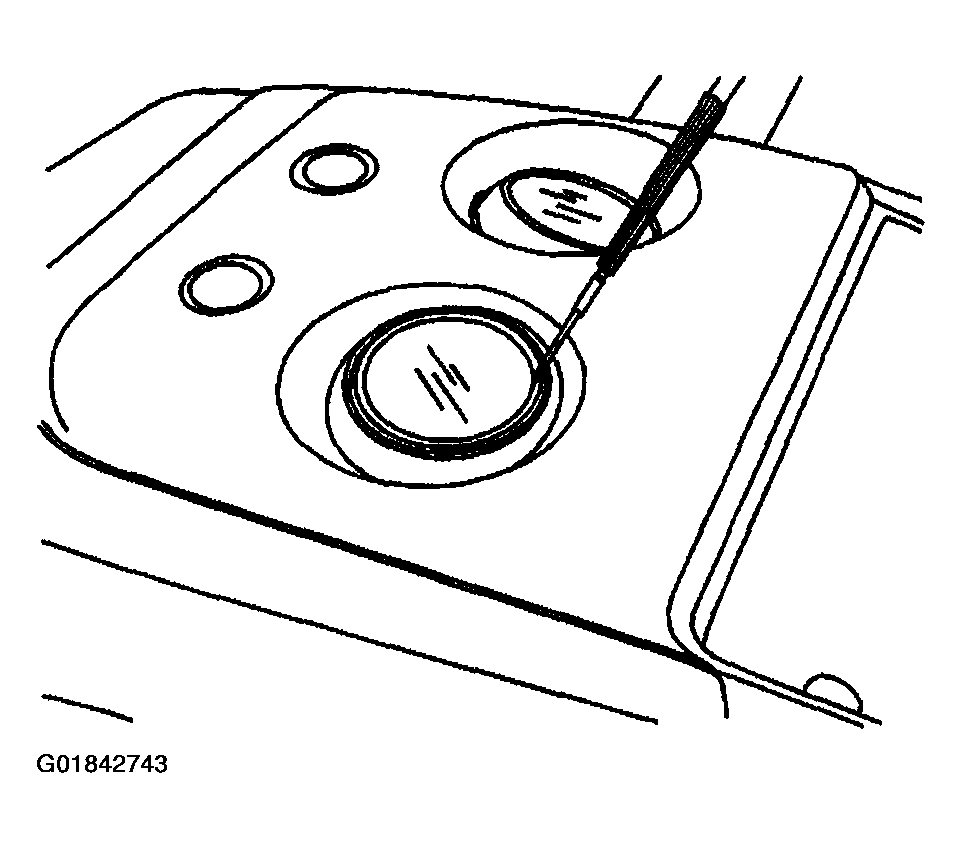

    Fig 1: Locating Bulb Housing Lens
    G01842743Courtesy of GENERAL MOTORS CORP.
  2. Release the locking tabs in order to remove the bulb and socket from the lens.
  3. Pull the bulb straight out of the socket.
