Installation Procedure

  1. Install the dome lamp assembly to the roof rear header garnish molding by pressing the assembly into position.
  2. Connect the electrical connector.
  3. Install the rear window garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR UPPER in INTERIOR TRIM article.
  4. Connect the battery negative cable.

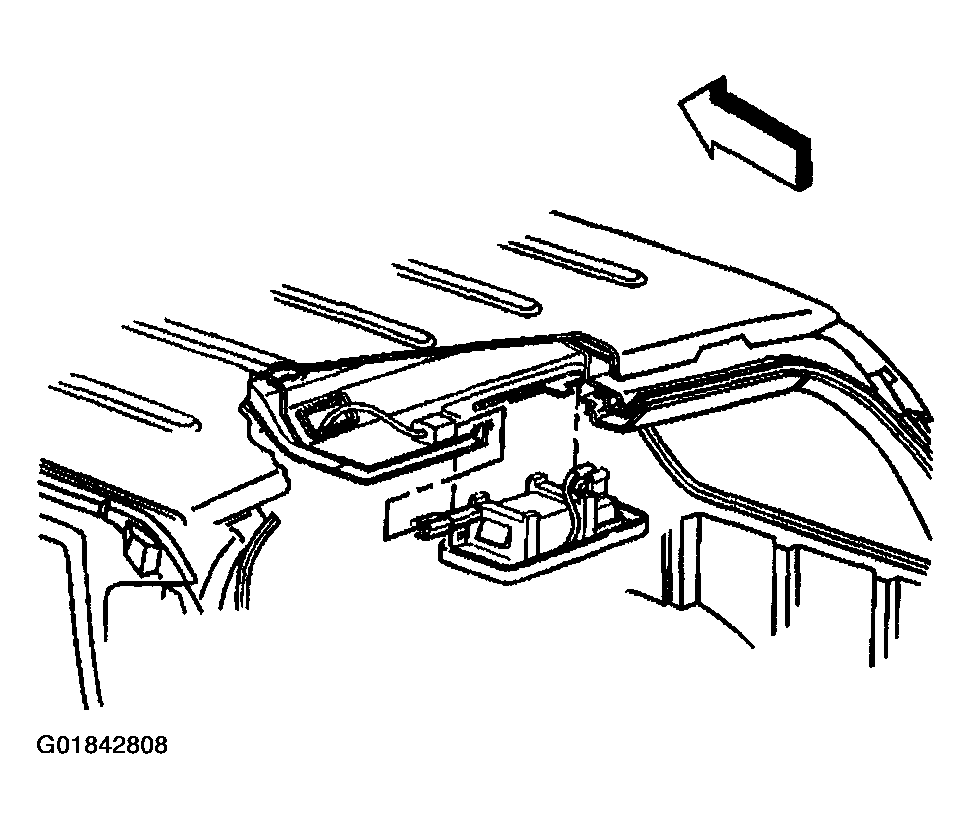

    Fig 1: Identifying Cargo Lamp Assembly Components
    G01842808Courtesy of GENERAL MOTORS CORP.
