Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION in GM VEHICLES CAUTIONS & NOTICES article.
  1. Disconnect the battery negative cable.
  2. Remove the ash tray housing. Refer to ASHTRAY REPLACEMENT in INSTRUMENT PANEL, GAGES & CONSOLE article.
  3. Open the ash tray and remove the liner.
  4. Remove the bulb and socket assembly from the ash tray housing.
  5. Remove the bulb from the socket.

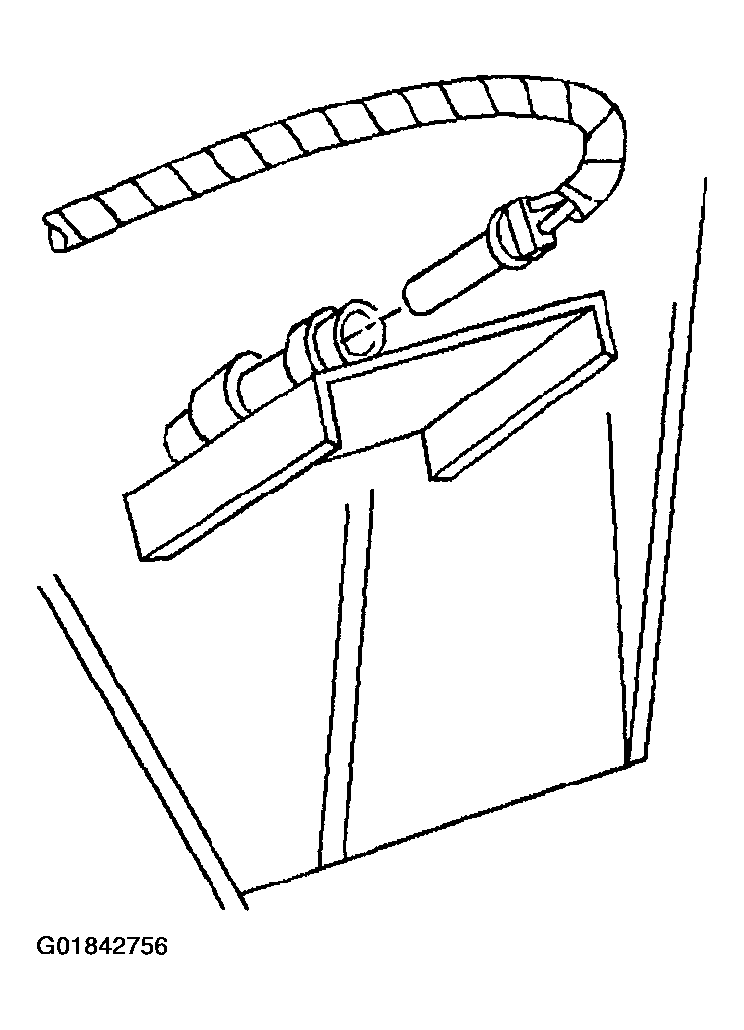

    Fig 1: Identifying Bulb & Socket
    G01842756Courtesy of GENERAL MOTORS CORP.
