Installation Procedure

  1. Install the bulb to the socket.

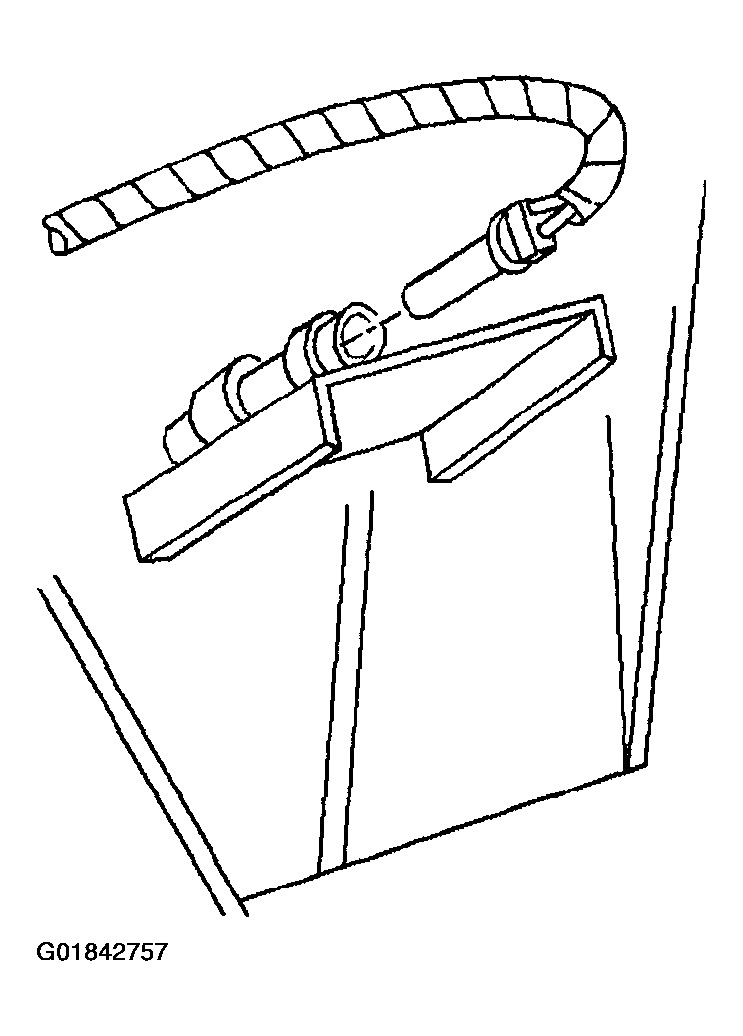

    Fig 1: Identifying Bulb & Socket
    G01842757Courtesy of GENERAL MOTORS CORP.
  2. Install the bulb and socket assembly to the ash tray housing.
  3. Install the ash tray liner.
  4. Install the ashtray housing to the instrument panel. Refer to ASHTRAY REPLACEMENT in INSTRUMENT PANEL, GAGES & CONSOLE article.
  5. Connect the battery negative cable.
