Turn Signal Lamps &/Or Indicators Inoperative

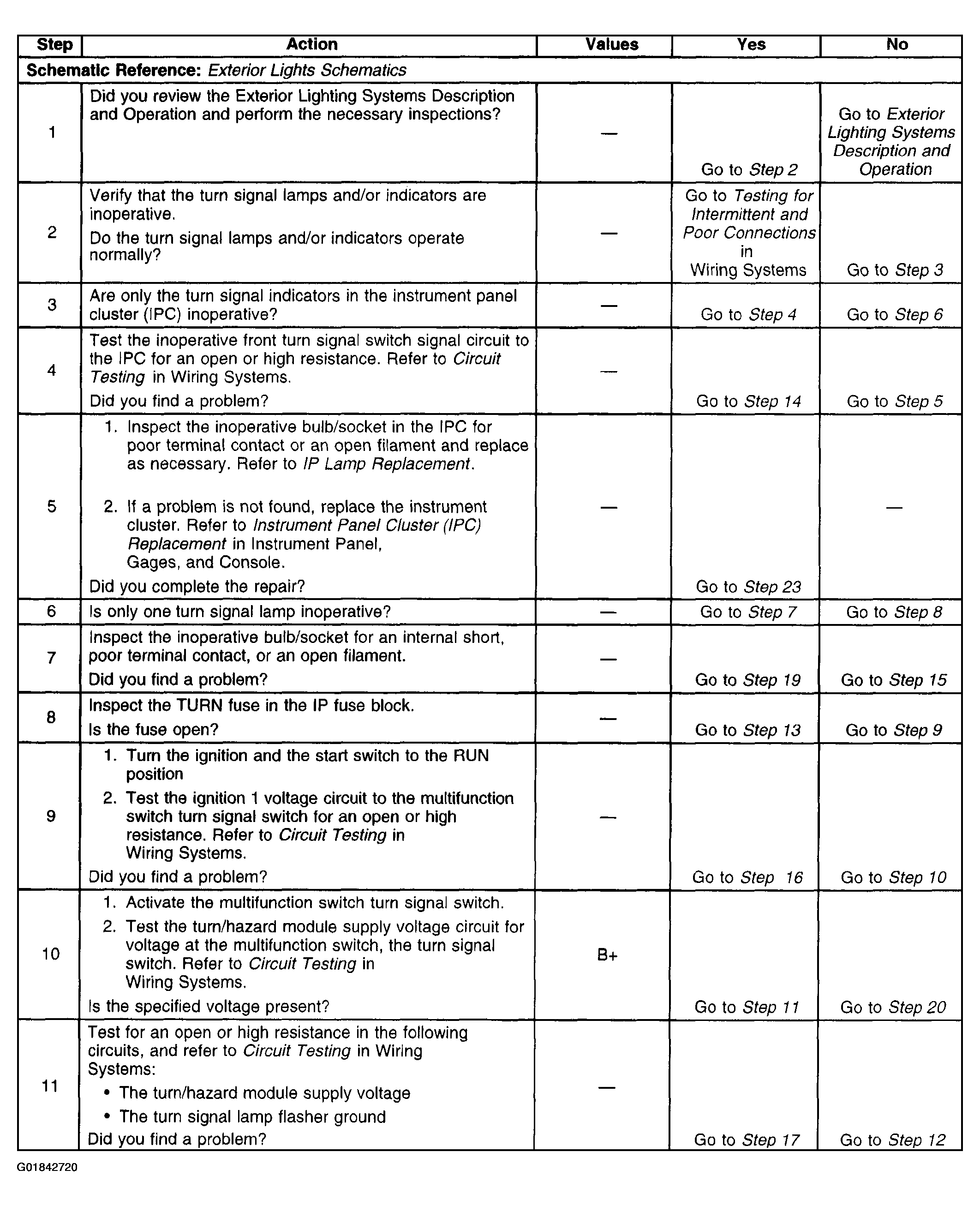

Fig 1: Turn Signal Lamps &/Or Indicators Inoperative (Steps 1-11)
Courtesy of GENERAL MOTORS CORP.

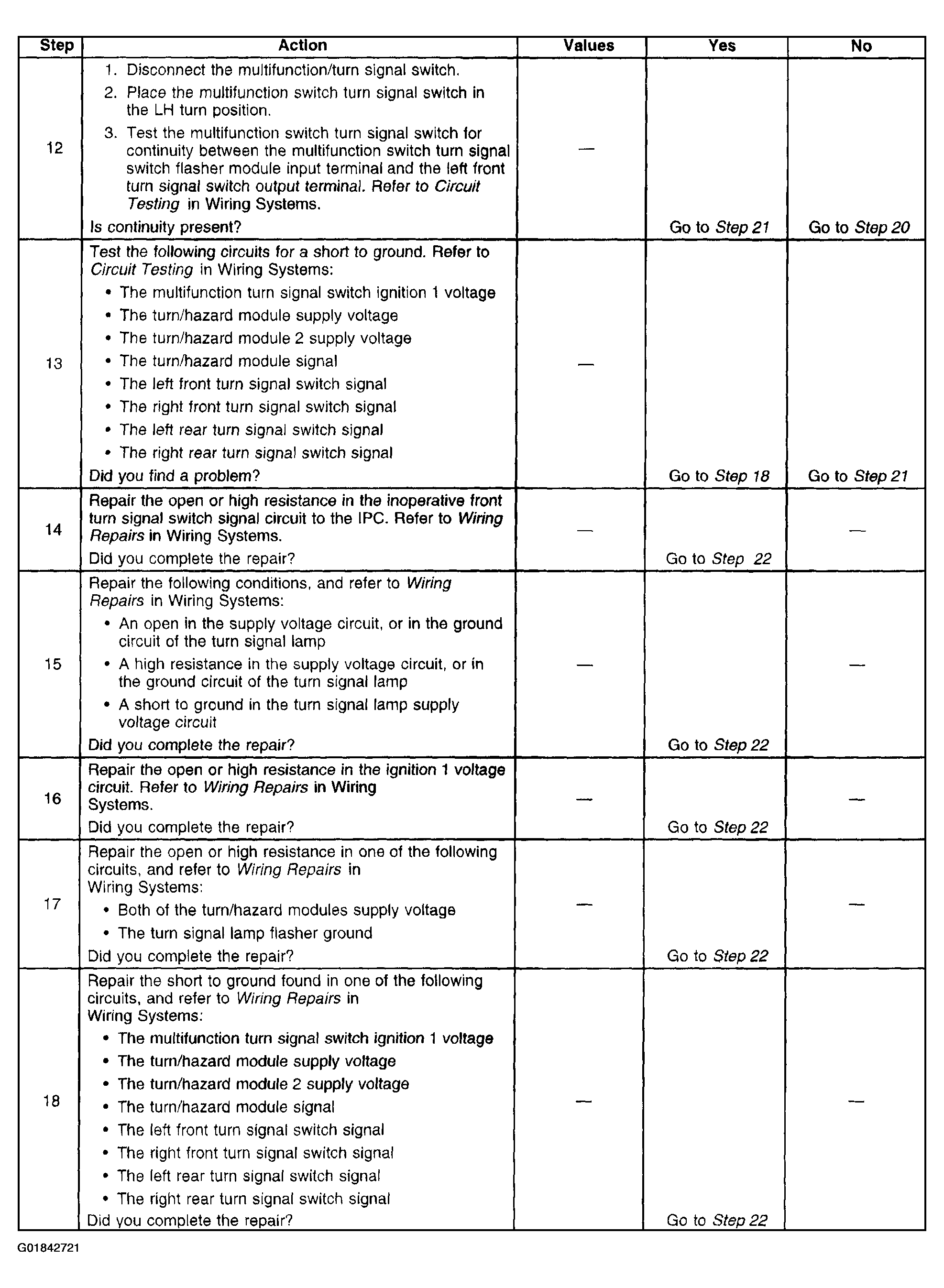

Fig 2: Turn Signal Lamps &/Or Indicators Inoperative (Steps 12-18)
Courtesy of GENERAL MOTORS CORP.

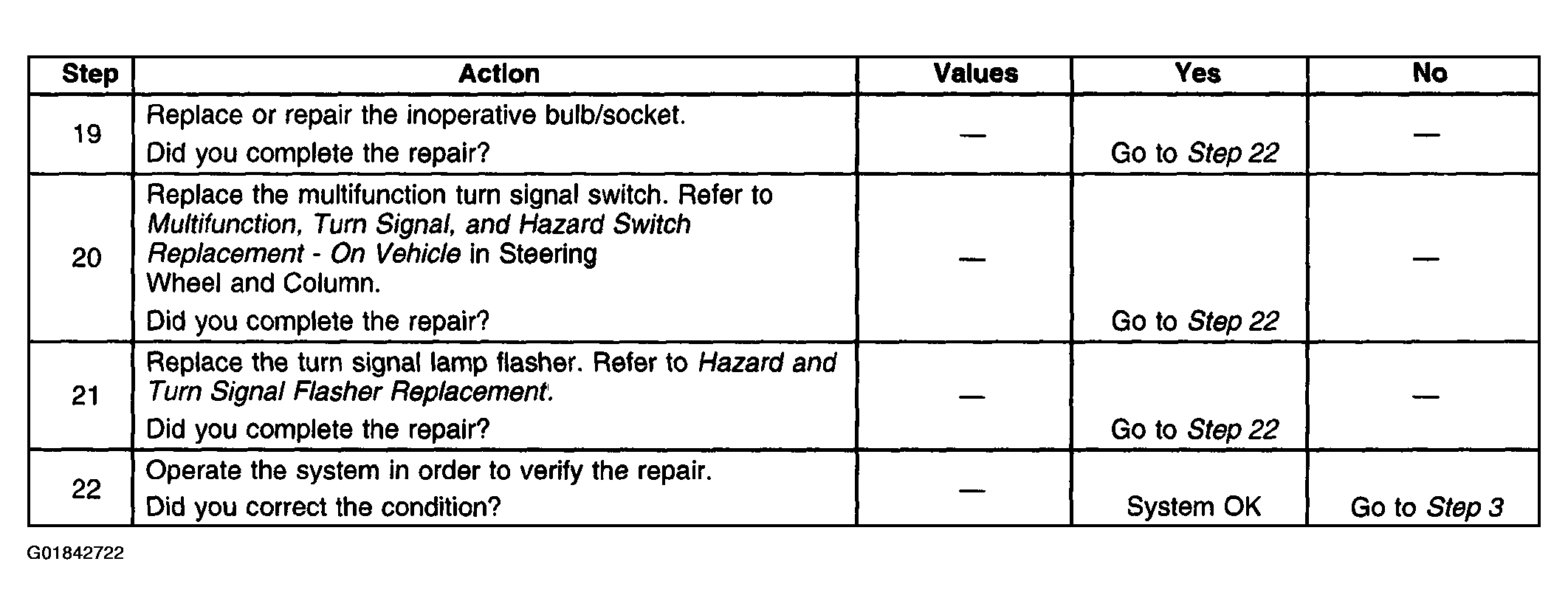

Fig 3: Turn Signal Lamps &/Or Indicators Inoperative (Steps 19-22)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
