Stop Lamps Inoperative (Domestic)
Stop Lamps Inoperative (Domestic)

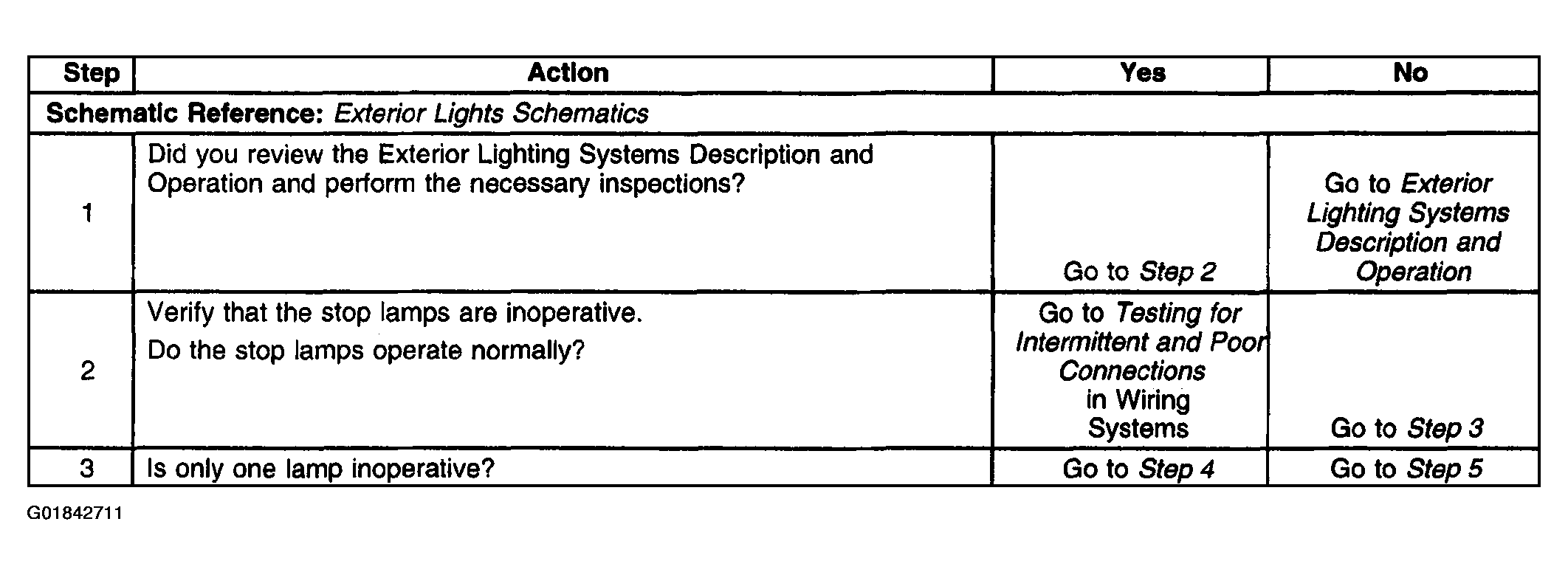

Fig 1: Stop Lamps Inoperative (Domestic) (Steps 1-3)
Courtesy of GENERAL MOTORS CORP.

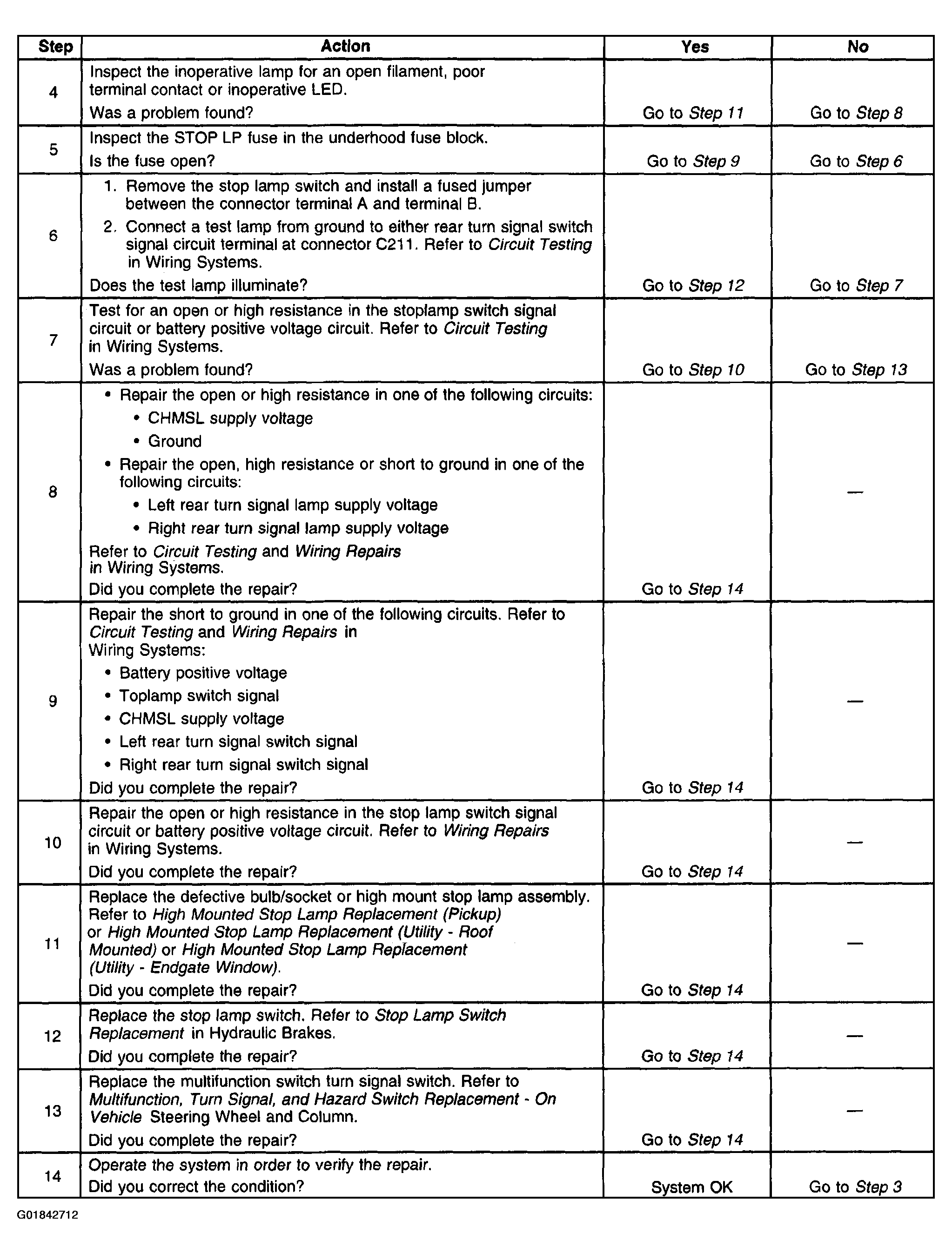

Fig 2: Stop Lamps Inoperative (Domestic) (Steps 4-14)
Courtesy of GENERAL MOTORS CORP.
