Interior Backlighting Inoperative

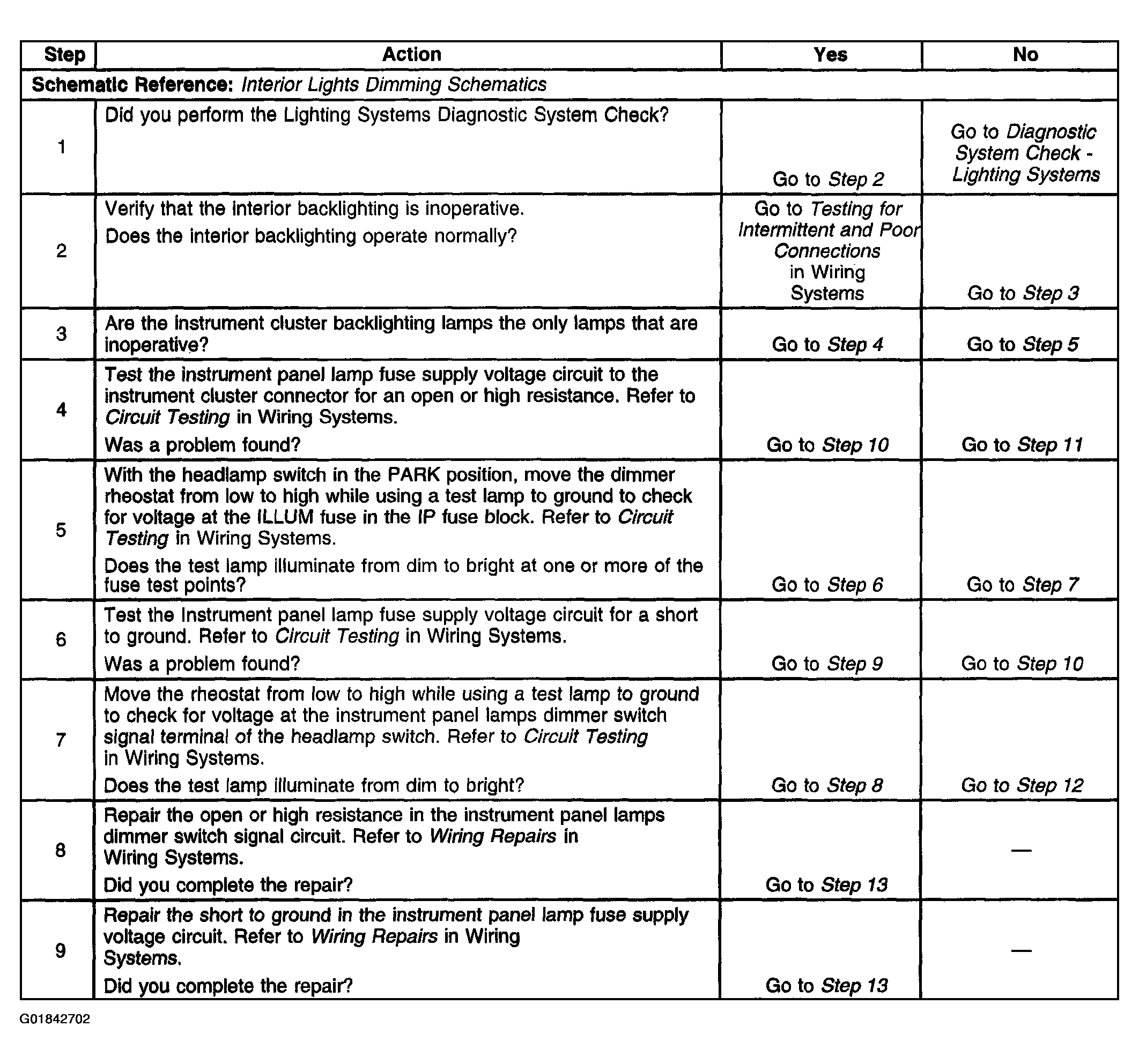

Fig 1: Interior Backlighting Inoperative (Steps 1-9)
G01842702Courtesy of GENERAL MOTORS CORP.

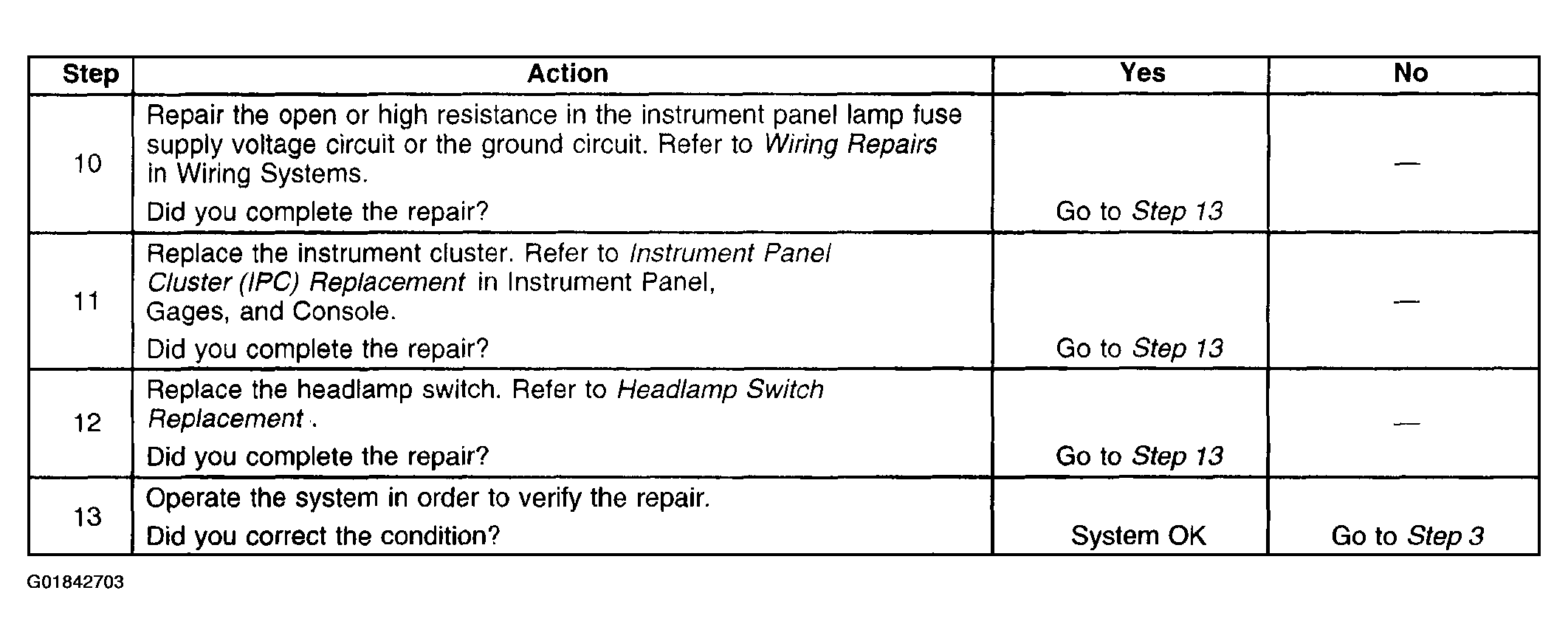

Fig 2: Interior Backlighting Inoperative (Steps 10-13)
G01842703Courtesy of GENERAL MOTORS CORP.
