Interior Backlighting Does Not Dim

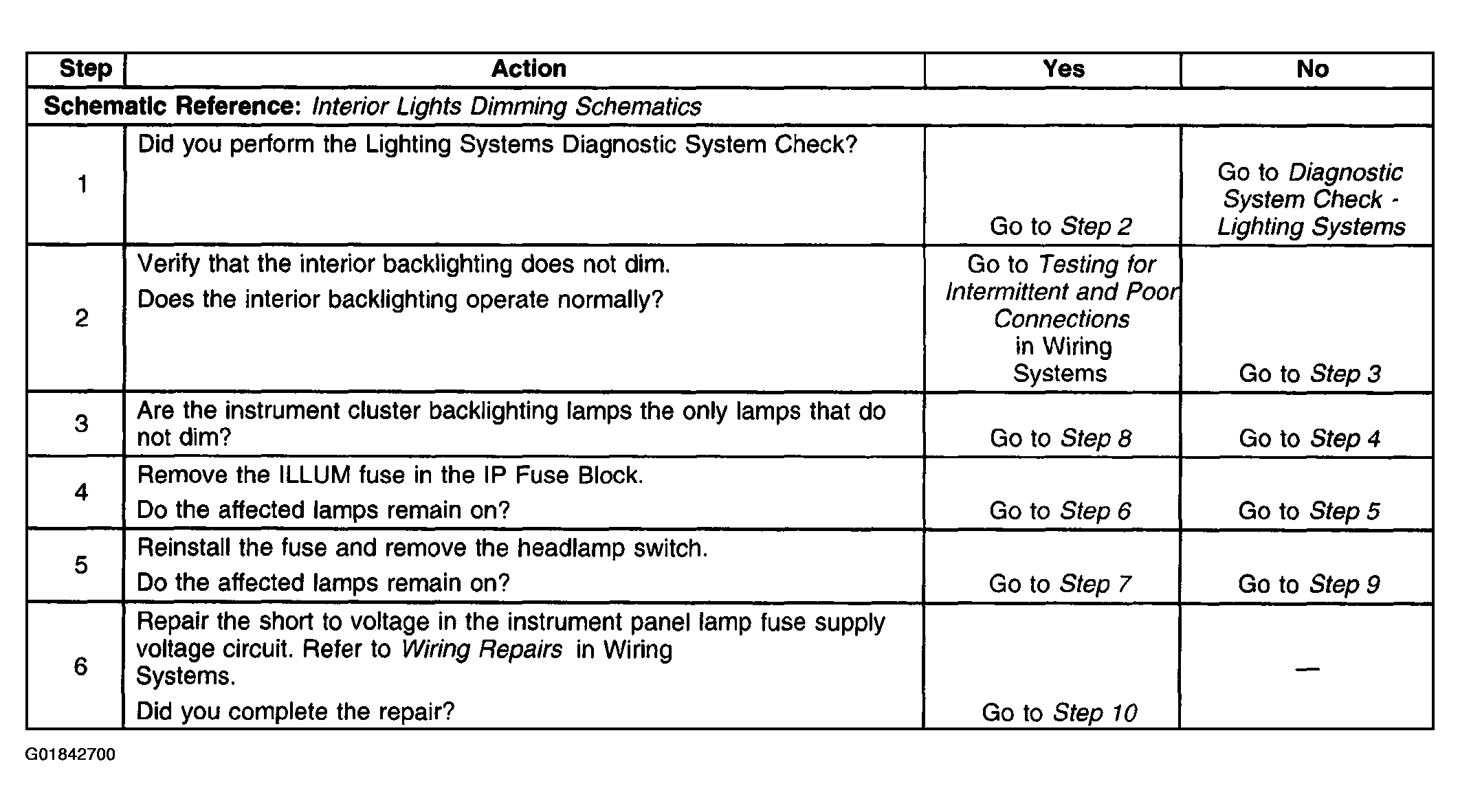

Fig 1: Interior Backlighting Does Not Dim (Steps 1-6)
G01842700Courtesy of GENERAL MOTORS CORP.

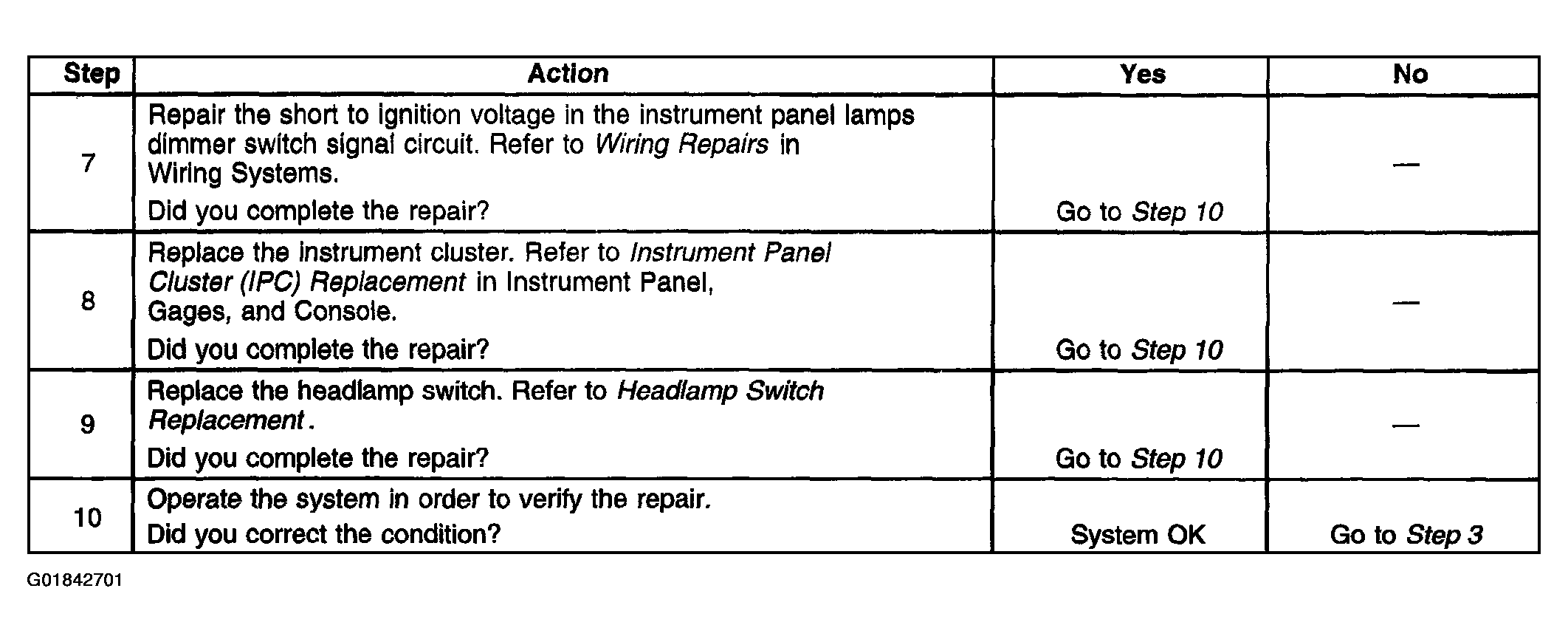

Fig 2: Interior Backlighting Does Not Dim (Steps 7-10)
G01842701Courtesy of GENERAL MOTORS CORP.
