IP Compartment Lamp Always On
IP Compartment Lamp Always On

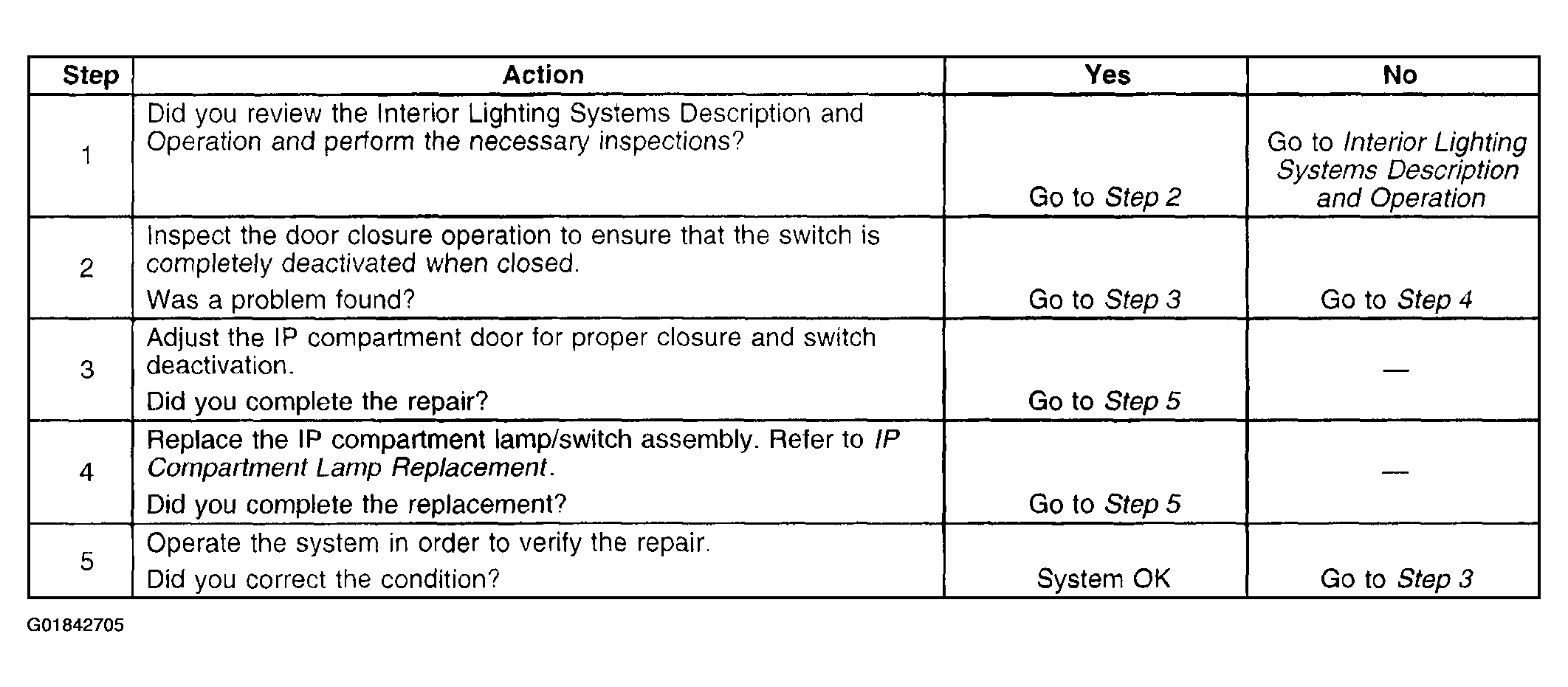

Fig 1: IP Compartment Lamp Always On (Steps 1-5)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
