Headlight Leveling Inoperative
Headlight Leveling Inoperative

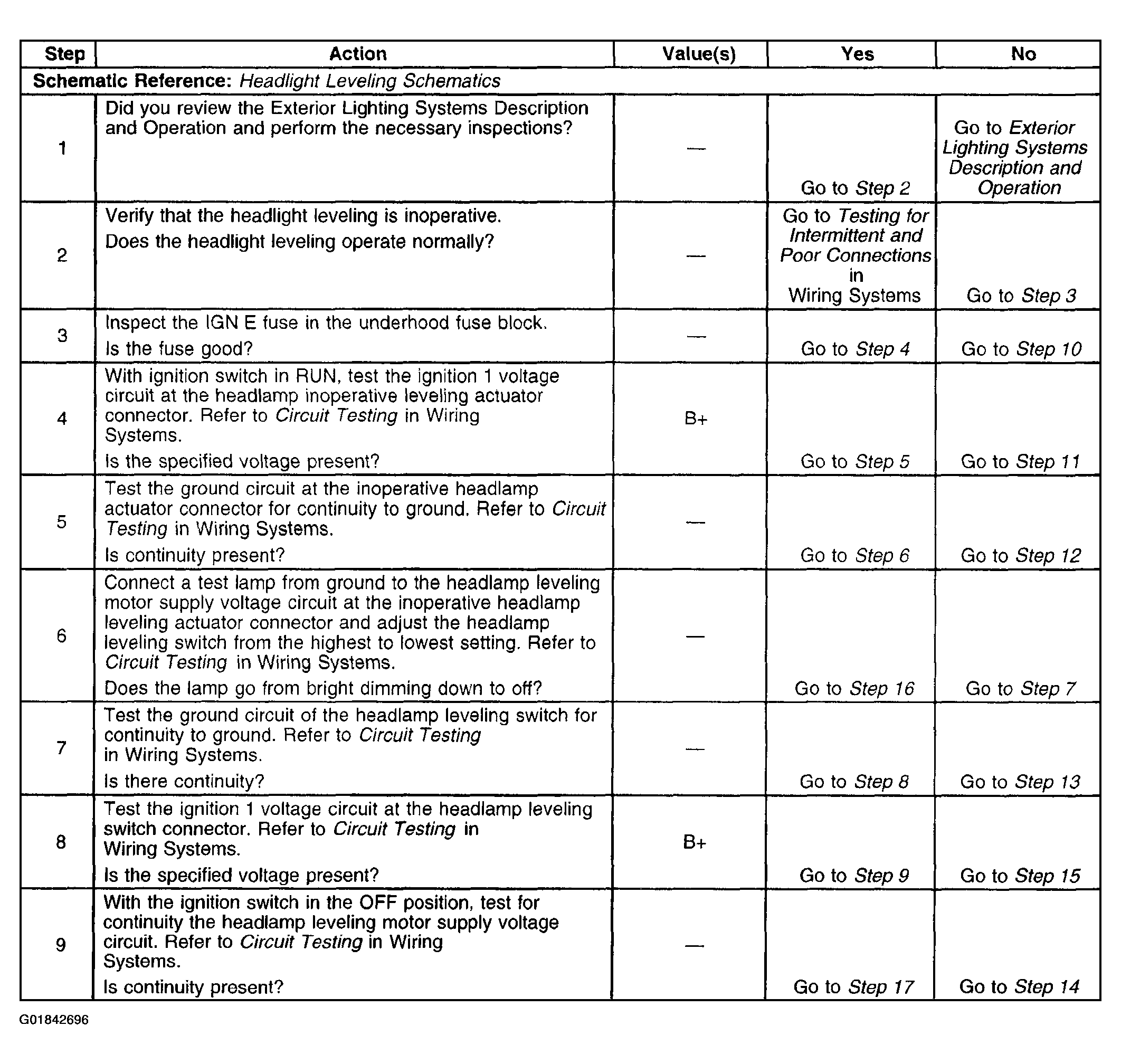

Fig 1: Headlight Leveling Inoperative (Steps 1-9)
Courtesy of GENERAL MOTORS CORP.

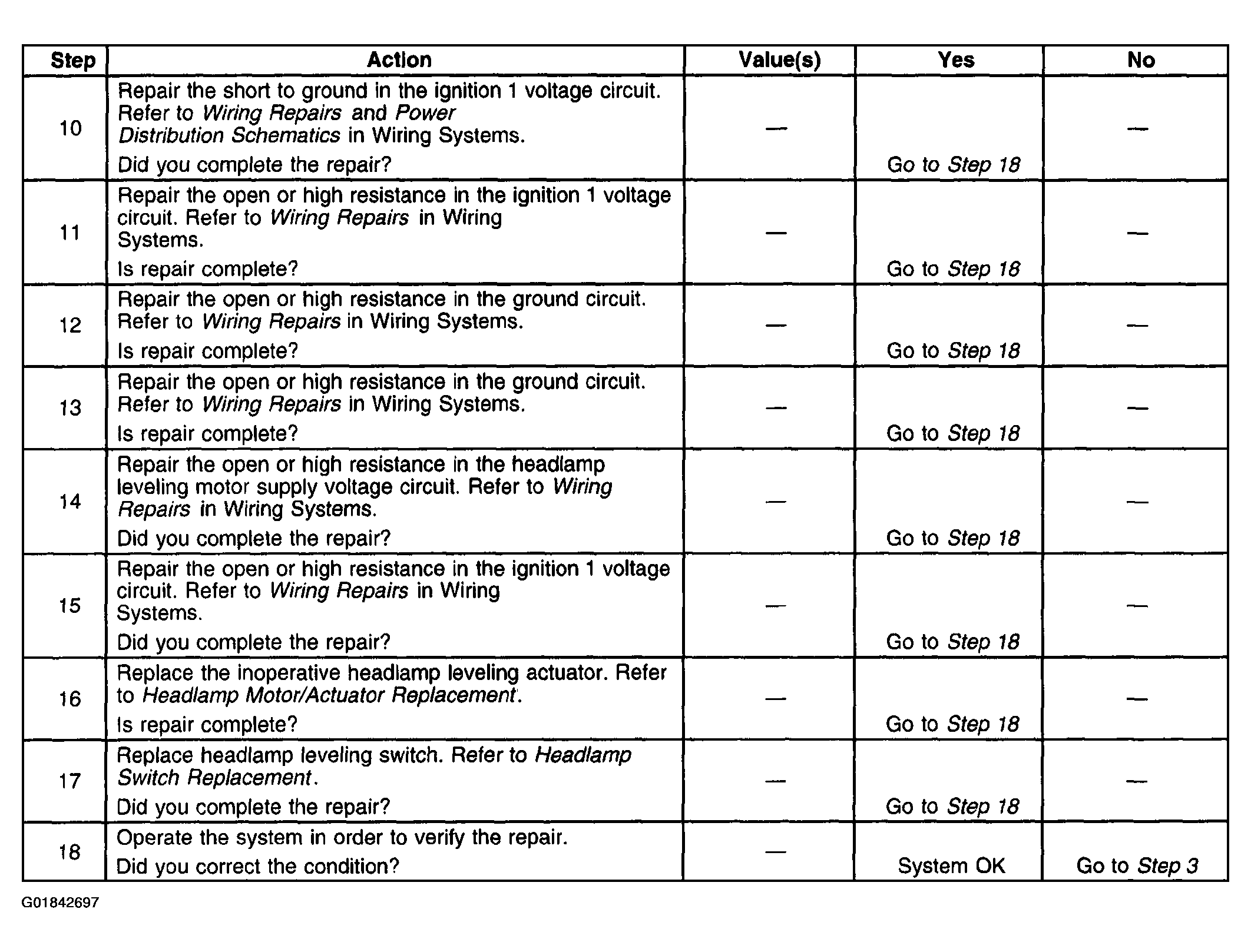

Fig 2: Headlight Leveling Inoperative (Steps 10-18)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
