Headlamps Inoperative - Low & High Beams

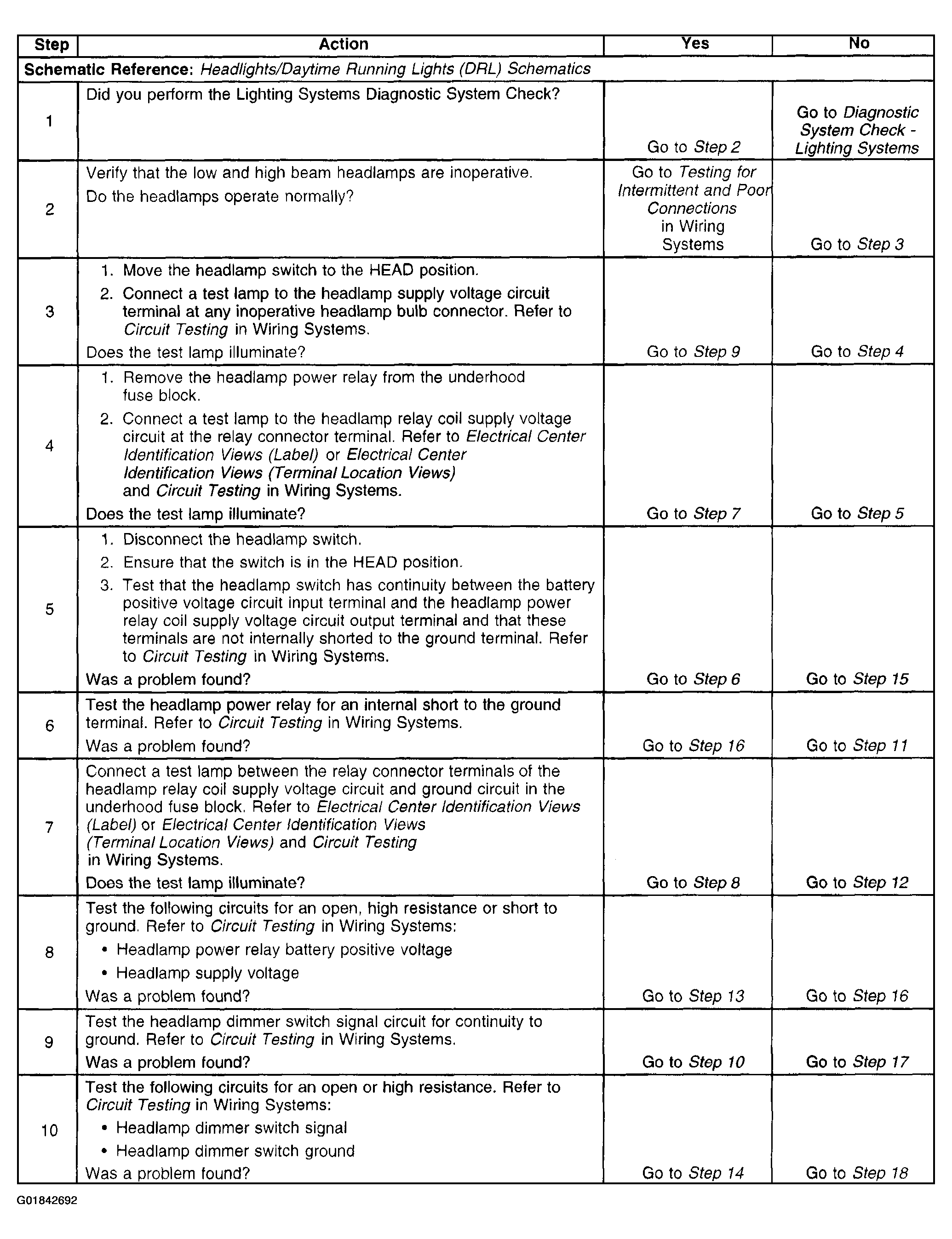

Fig 1: Headlamps Inoperative - Low & High Beams (Steps 1-10)
G01842692Courtesy of GENERAL MOTORS CORP.

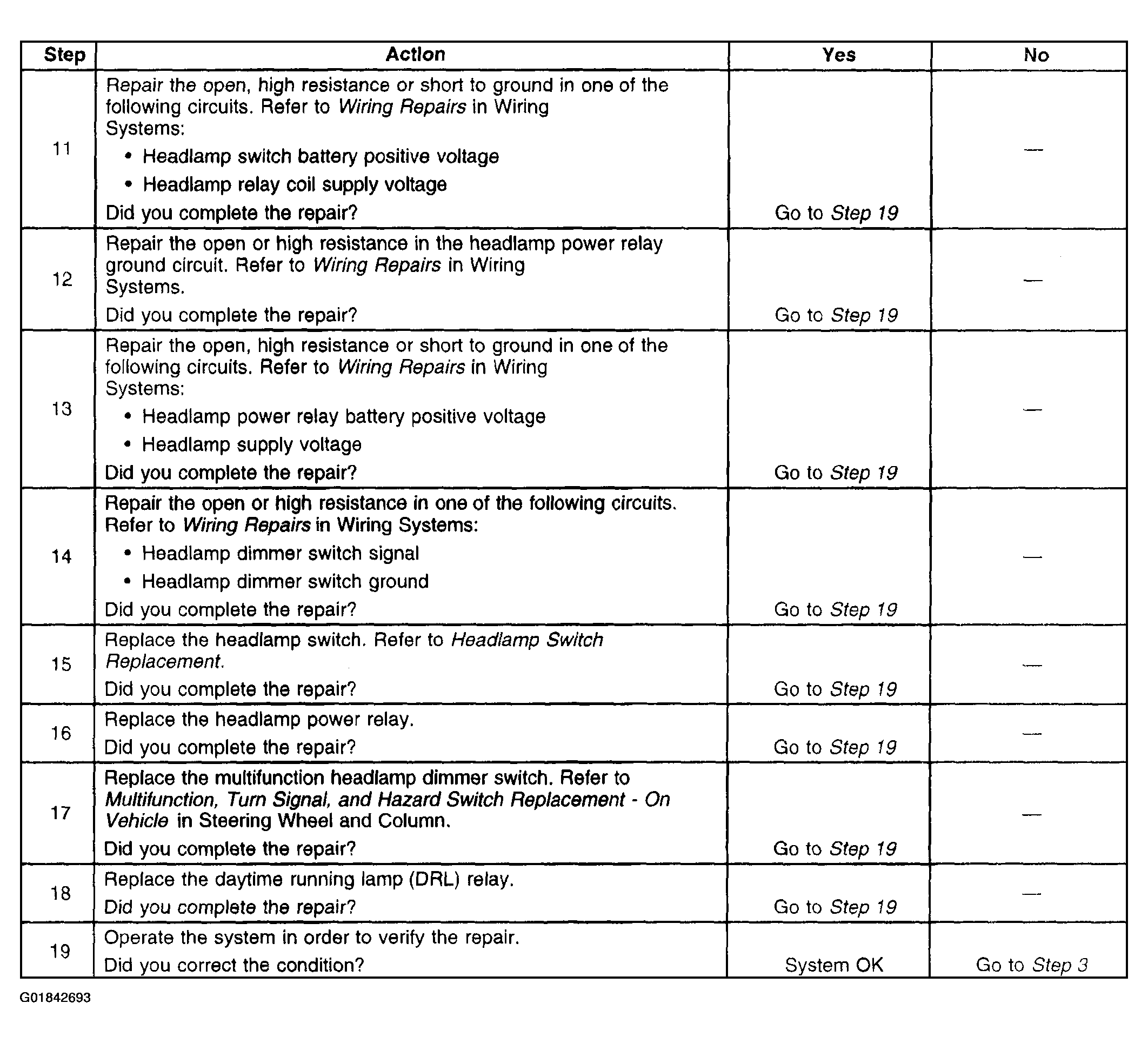

Fig 2: Headlamps Inoperative - Low & High Beams (Steps 11-19)
G01842693Courtesy of GENERAL MOTORS CORP.
