Headlamps Inoperative - Low & High Beams (Except ZR2)

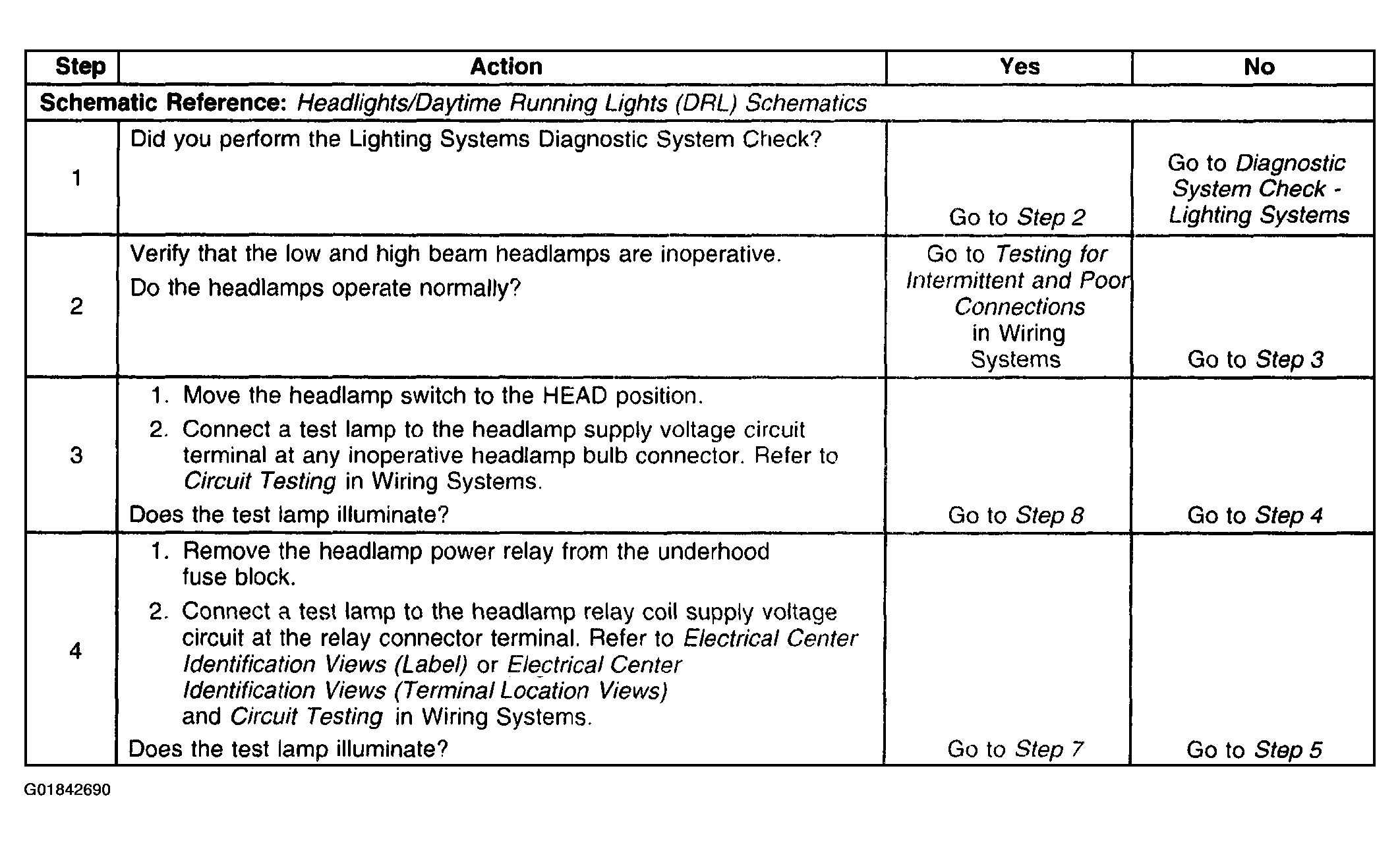

Fig 1: Headlamps Inoperative - Low & High Beams (Except ZR2) (Steps 1-4)

Courtesy of GENERAL MOTORS CORP.

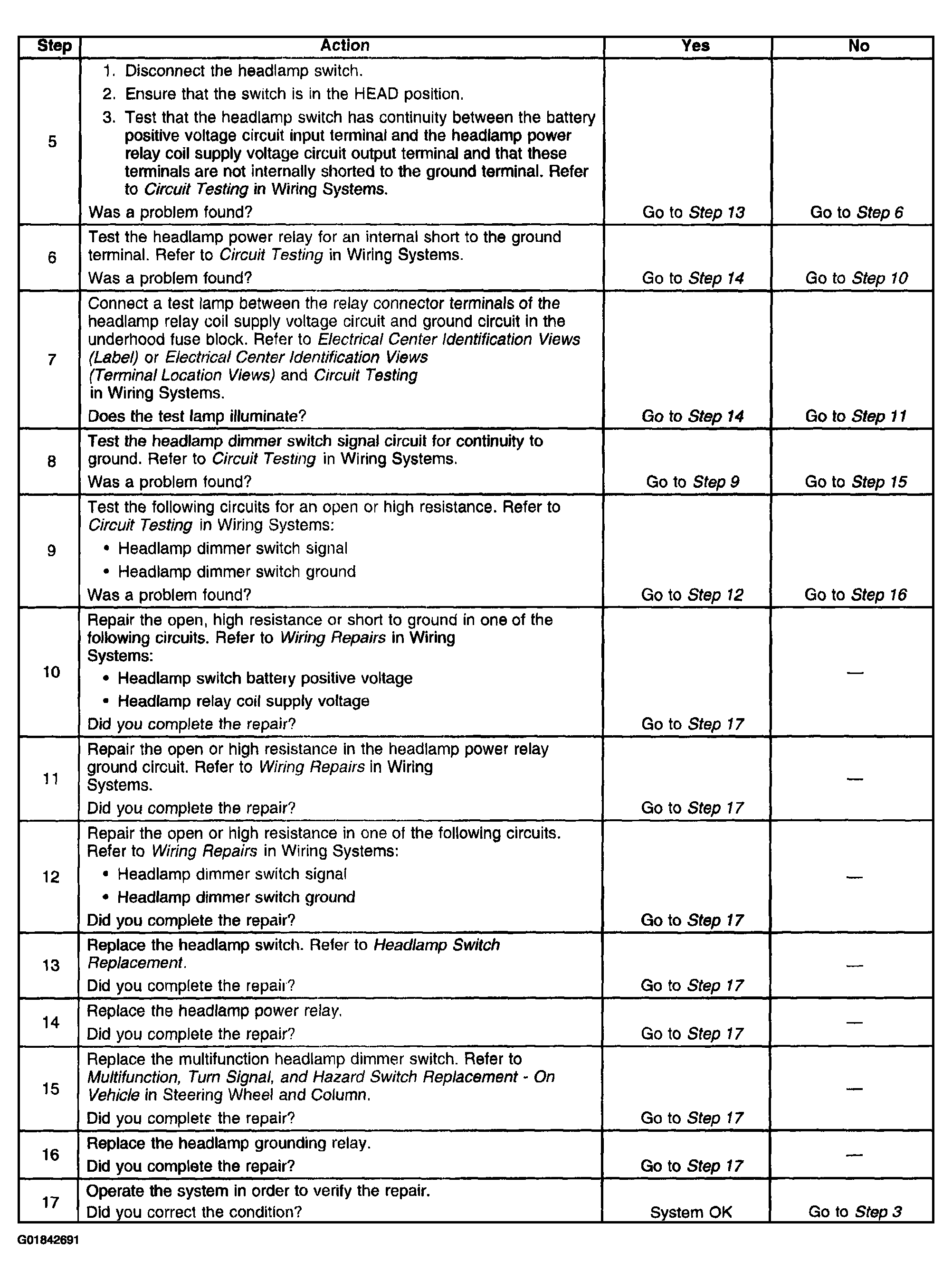

Fig 2: Headlamps Inoperative - Low & High Beams (Except ZR2) (Steps 5-17)

Courtesy of GENERAL MOTORS CORP.
