Hazard Lamps Inoperative
Hazard Lamps Inoperative

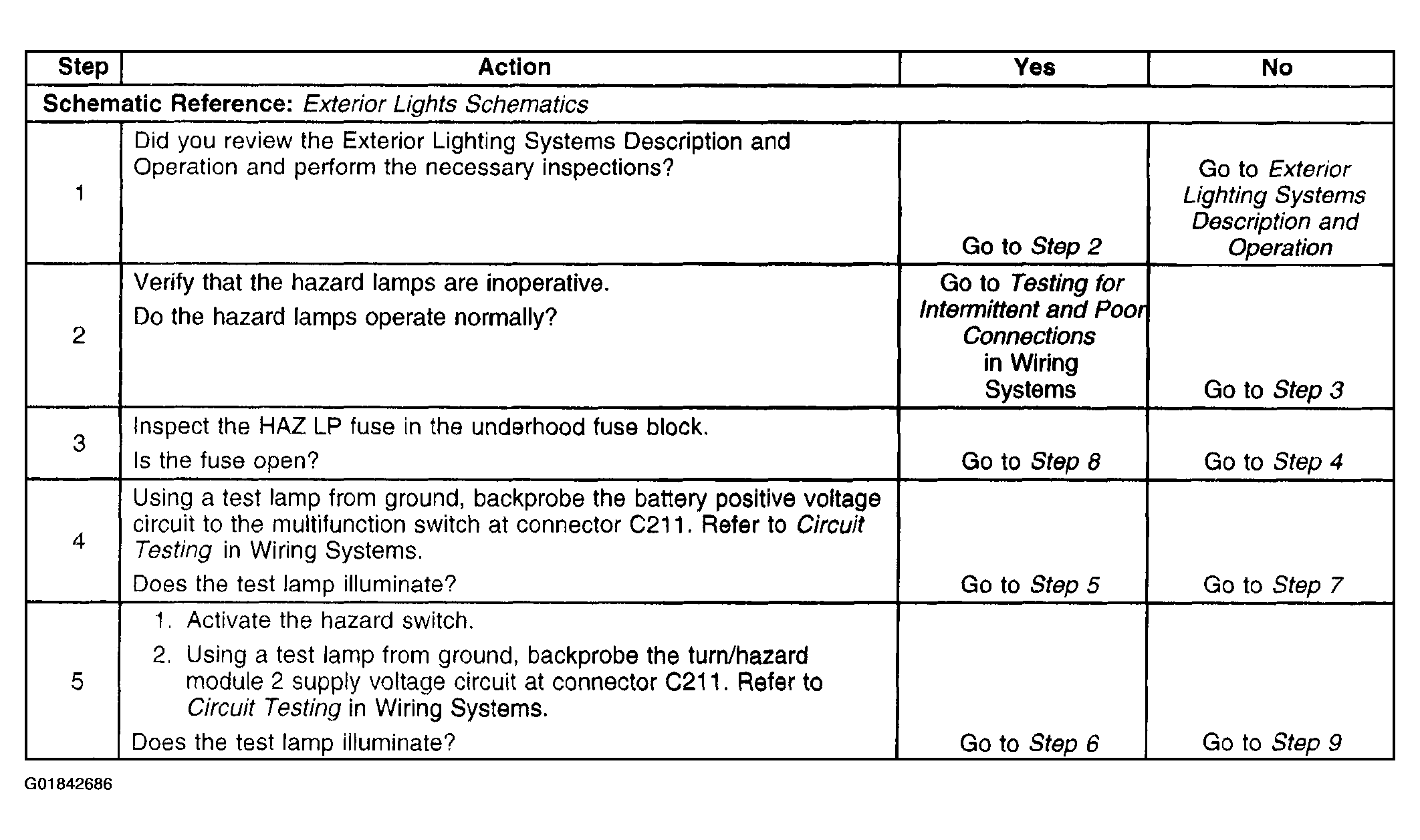

Fig 1: Hazard Lamps Inoperative (Steps 1-5)
Courtesy of GENERAL MOTORS CORP.

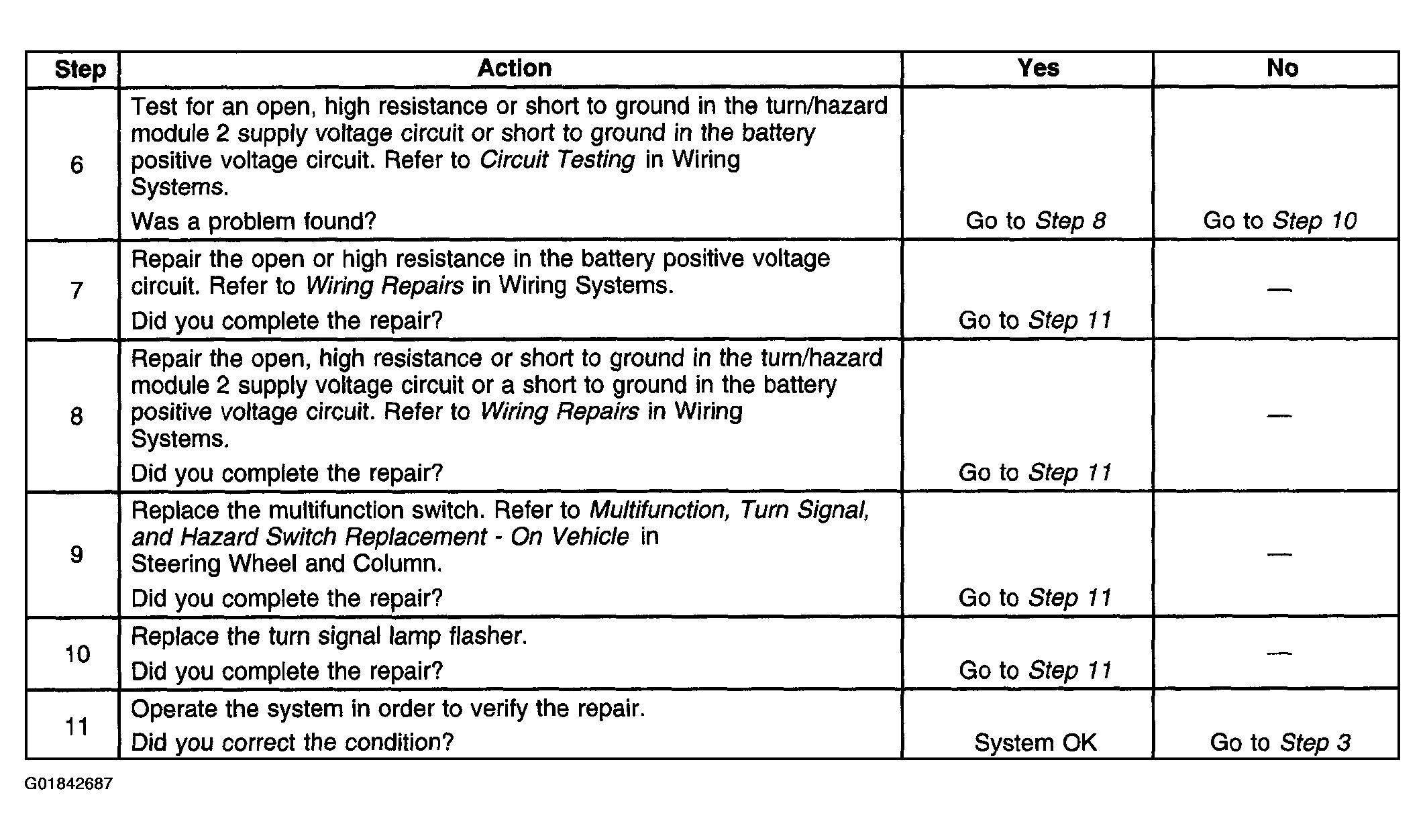

Fig 2: Hazard Lamps Inoperative (Steps 6-11)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
