Fog Lamps Always On

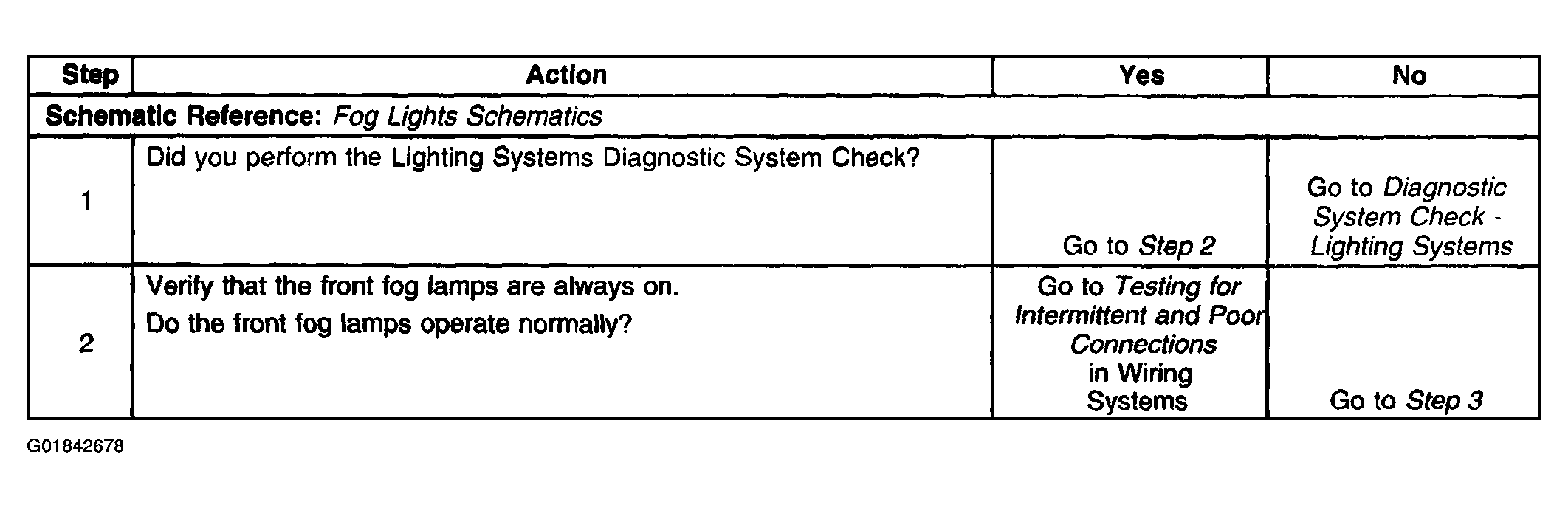

Fig 1: Fog Lamps Always On (Steps 1-2)

G01842678

Courtesy of GENERAL MOTORS CORP.

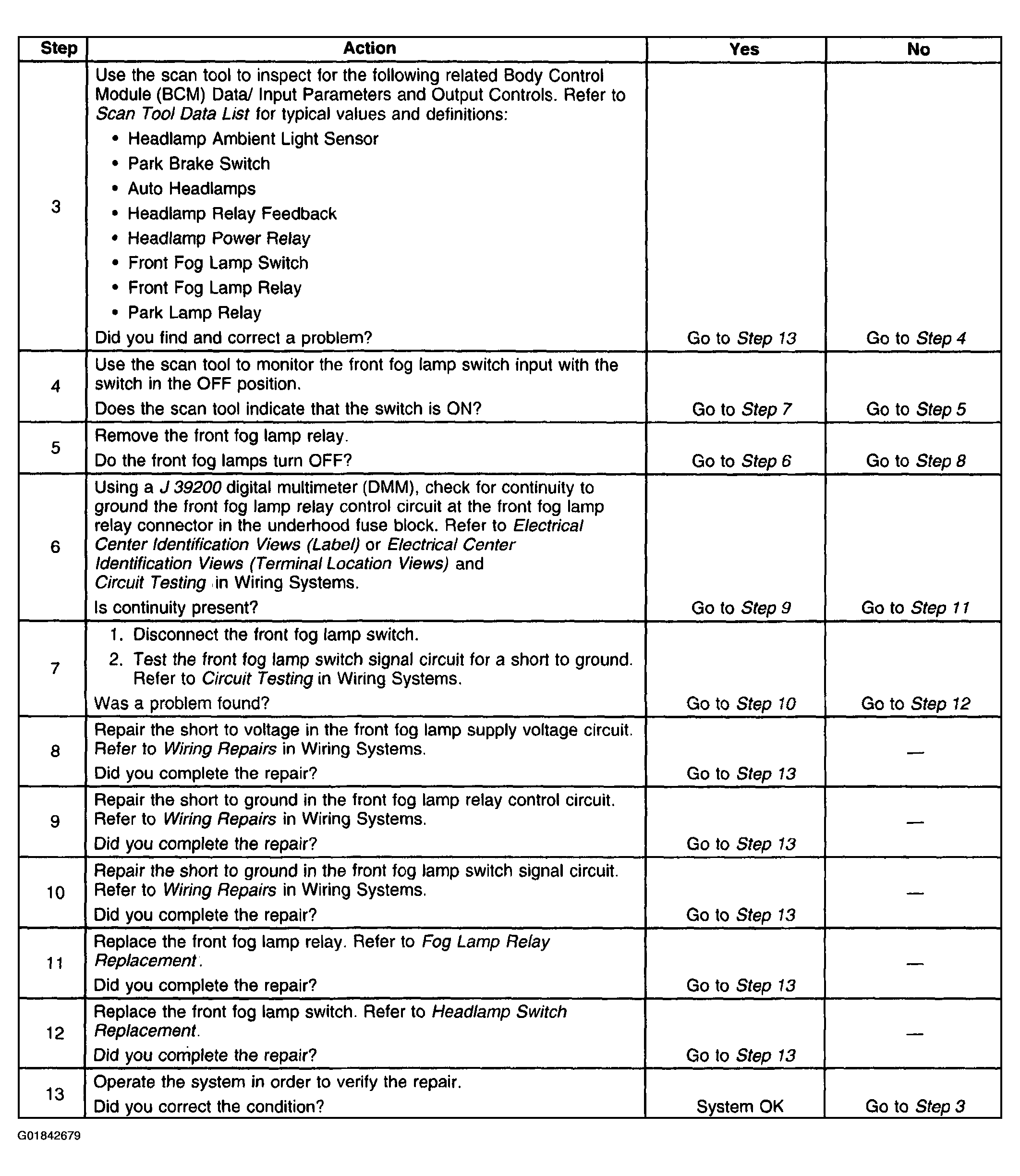

Fig 2: Fog Lamps Always On (Steps 3-13)

G01842679

Courtesy of GENERAL MOTORS CORP.
