Fog Lamp Indicator Always On
Fog Lamp Indicator Always On

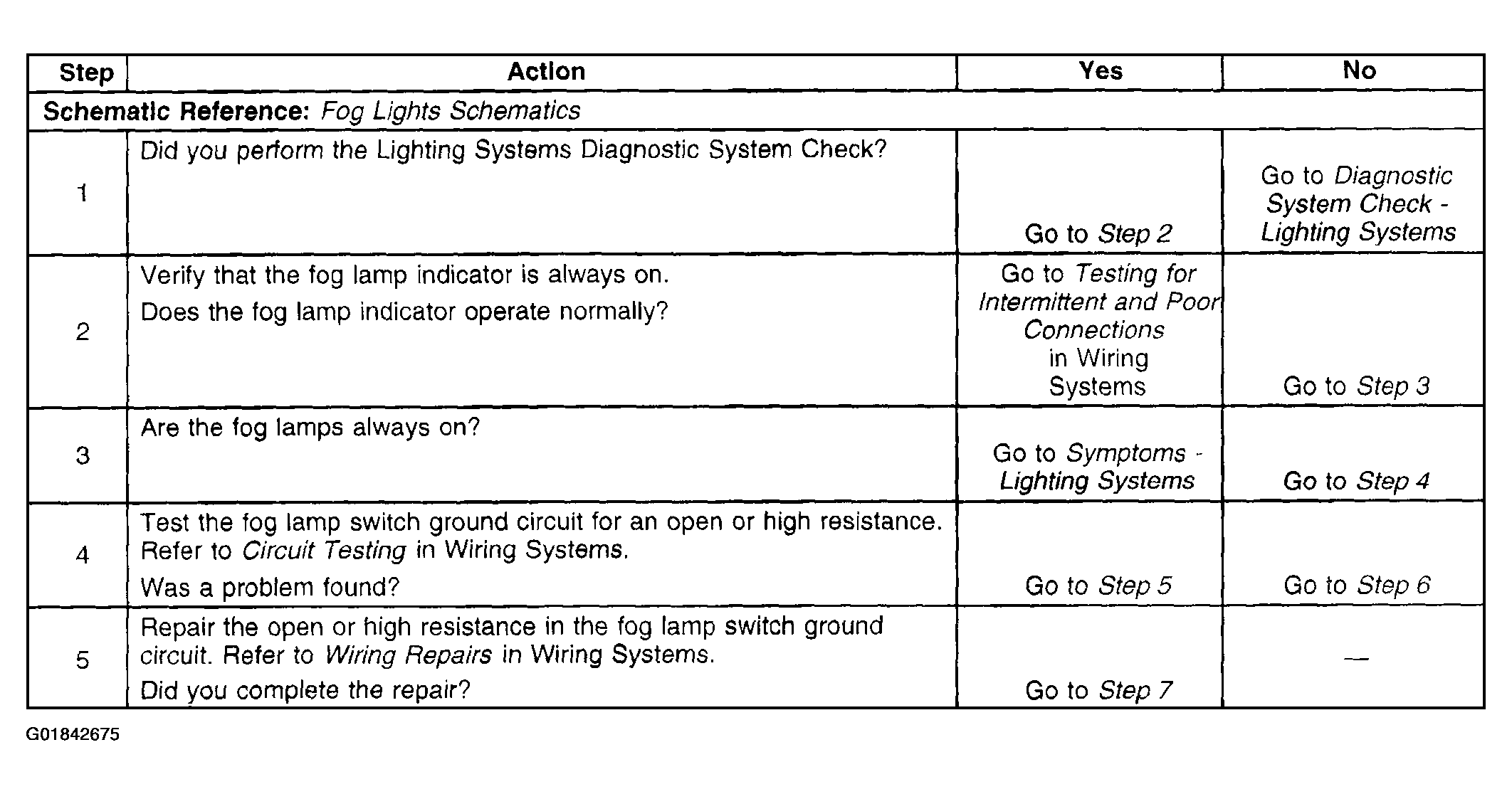

Fig 1: Fog Lamp Indicator Always On (Steps 1-5)
Courtesy of GENERAL MOTORS CORP.

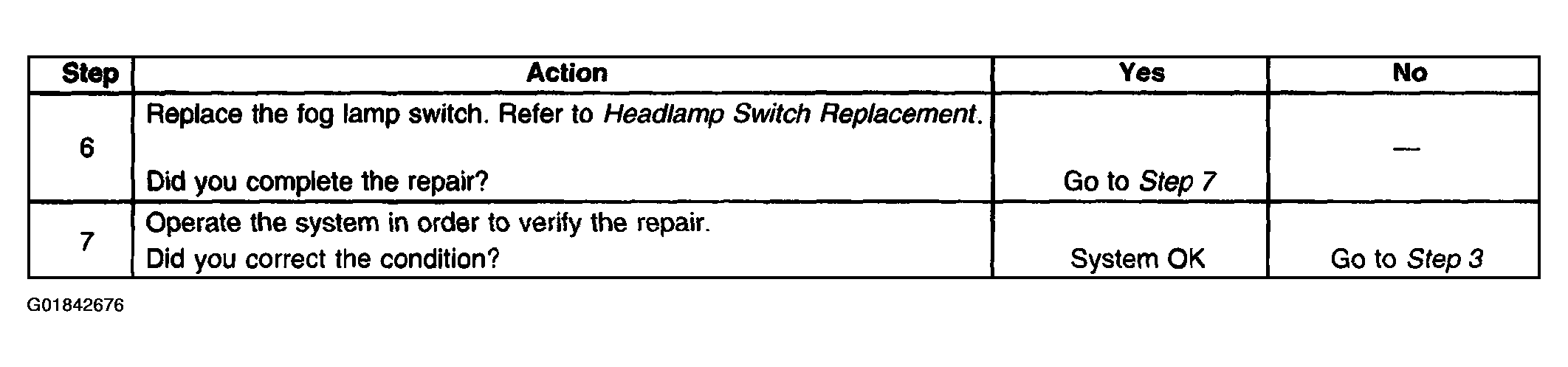

Fig 2: Fog Lamp Indicator Always On (Steps 6-7)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
