Daytime Running Lamps (DRL) On With Park Brake Applied

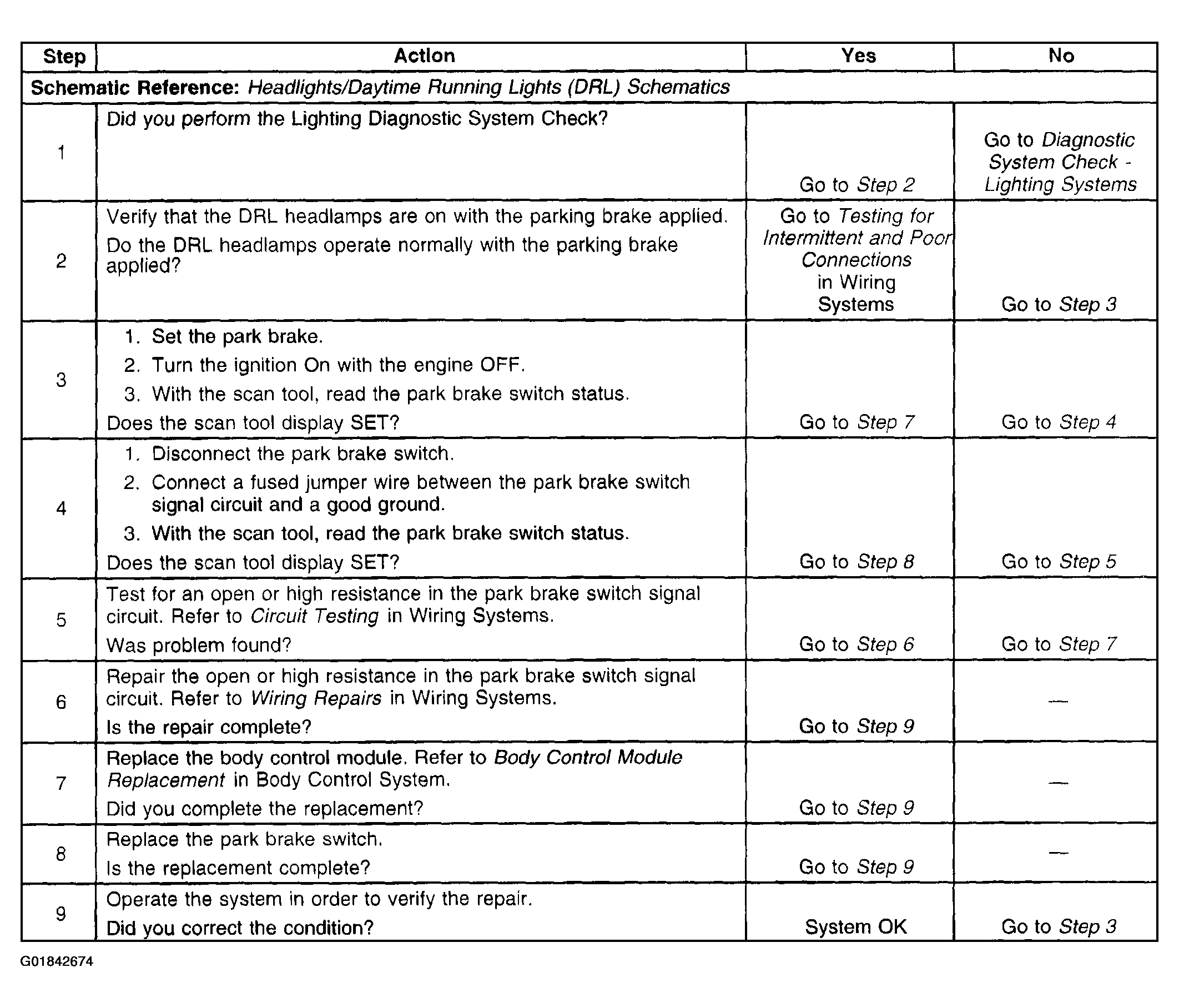

Fig 1: Daytime Running Lamps (DRL) On with Park Brake Applied (Steps 1-9)

G01842674

Courtesy of GENERAL MOTORS CORP.
