Daytime Running Lamps (DRL) Inoperative (ZR2)

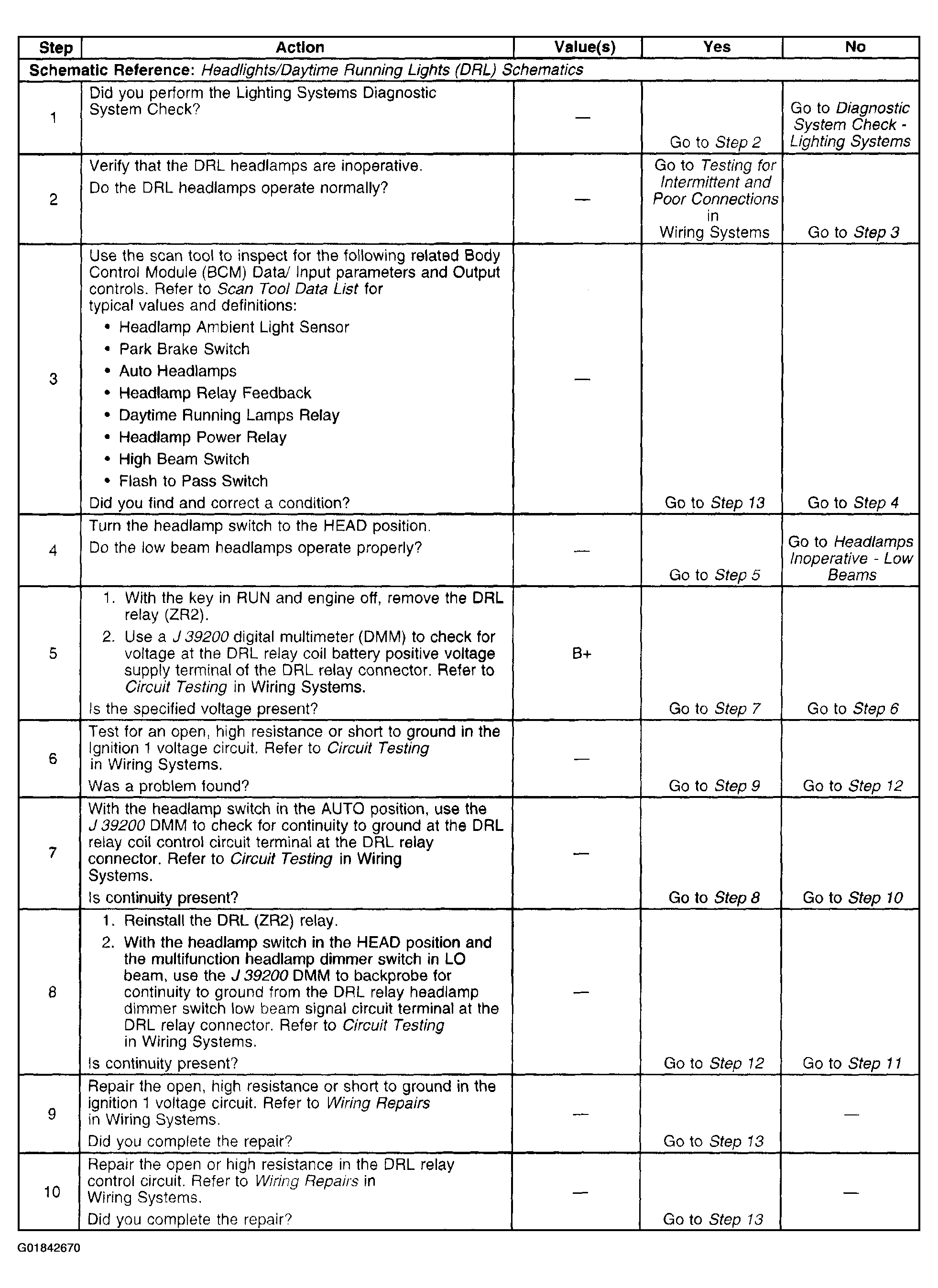

Fig 1: Daytime Running Lamps (DRL) Inoperative (ZR2) (Steps 1-10)
G01842670Courtesy of GENERAL MOTORS CORP.

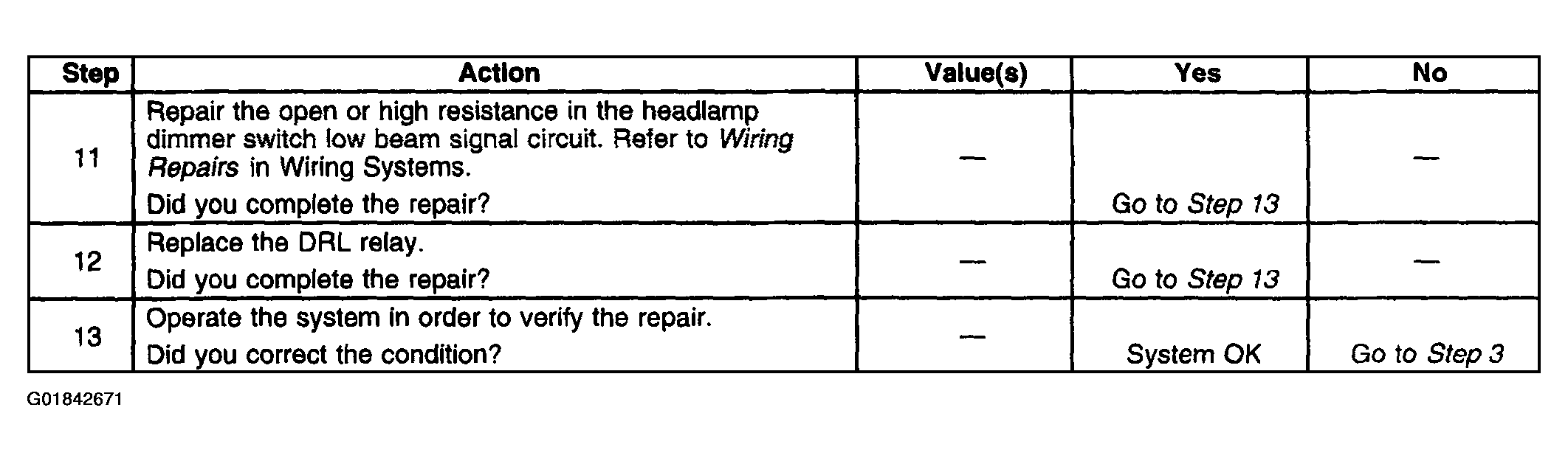

Fig 2: Daytime Running Lamps (DRL) Inoperative (ZR2) (Steps 11-13)
G01842671Courtesy of GENERAL MOTORS CORP.
