Courtesy Lamps Inoperative

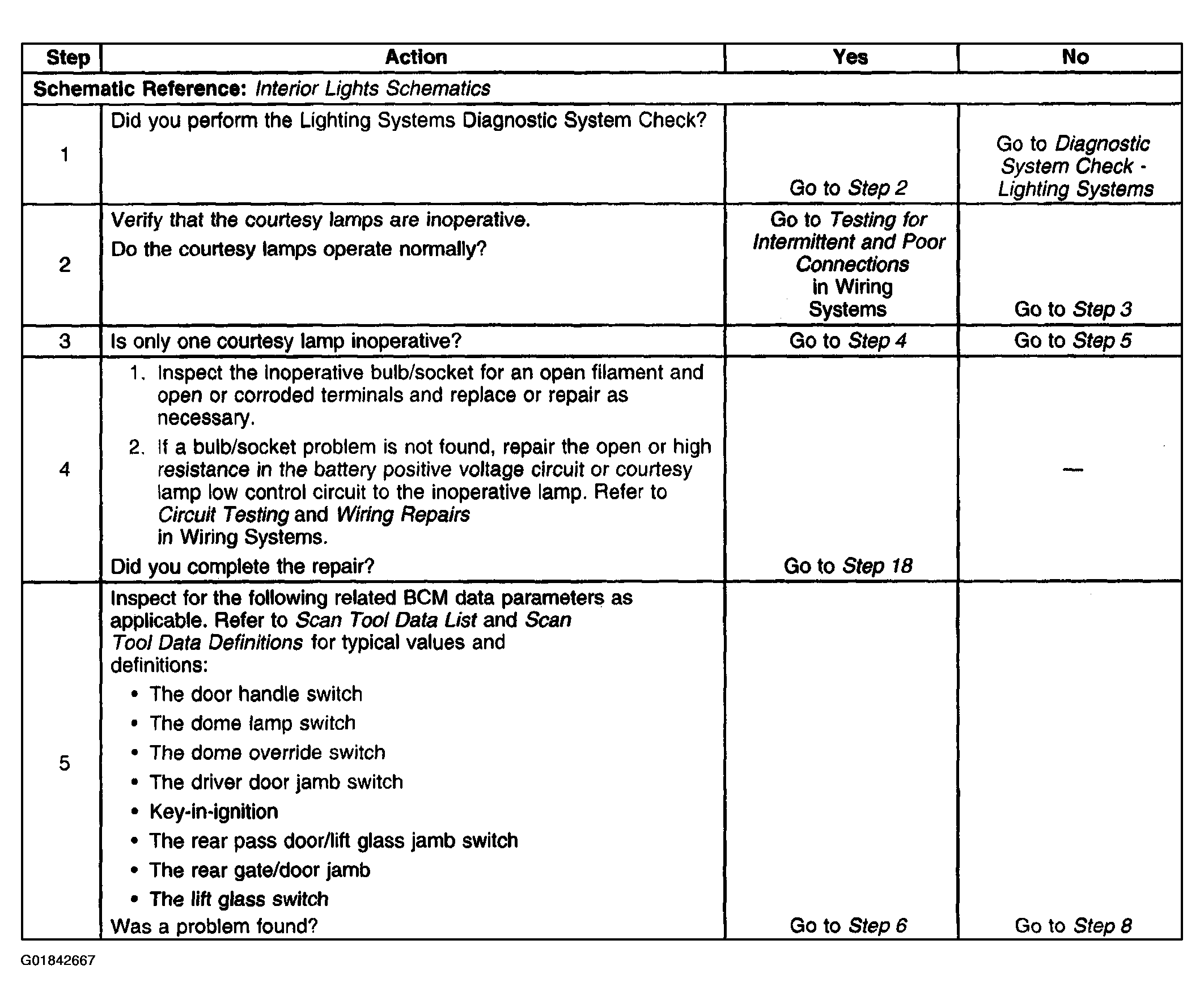

Fig 1: Courtesy Lamps Inoperative (Steps 1-5)

G01842667

Courtesy of GENERAL MOTORS CORP.

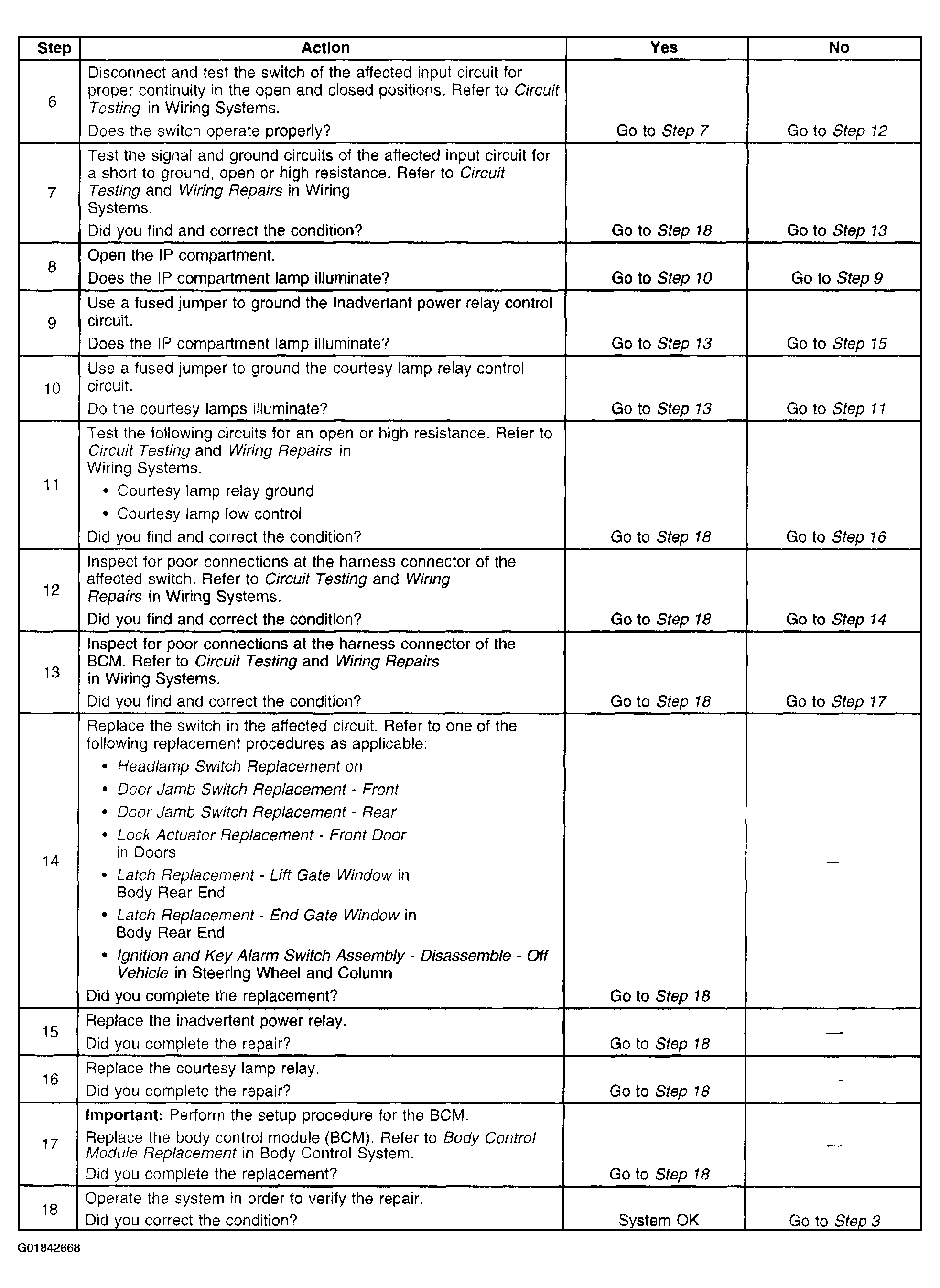

Fig 2: Courtesy Lamps Inoperative (Steps 6-18)

G01842668

Courtesy of GENERAL MOTORS CORP.
