Courtesy Lamps Always On

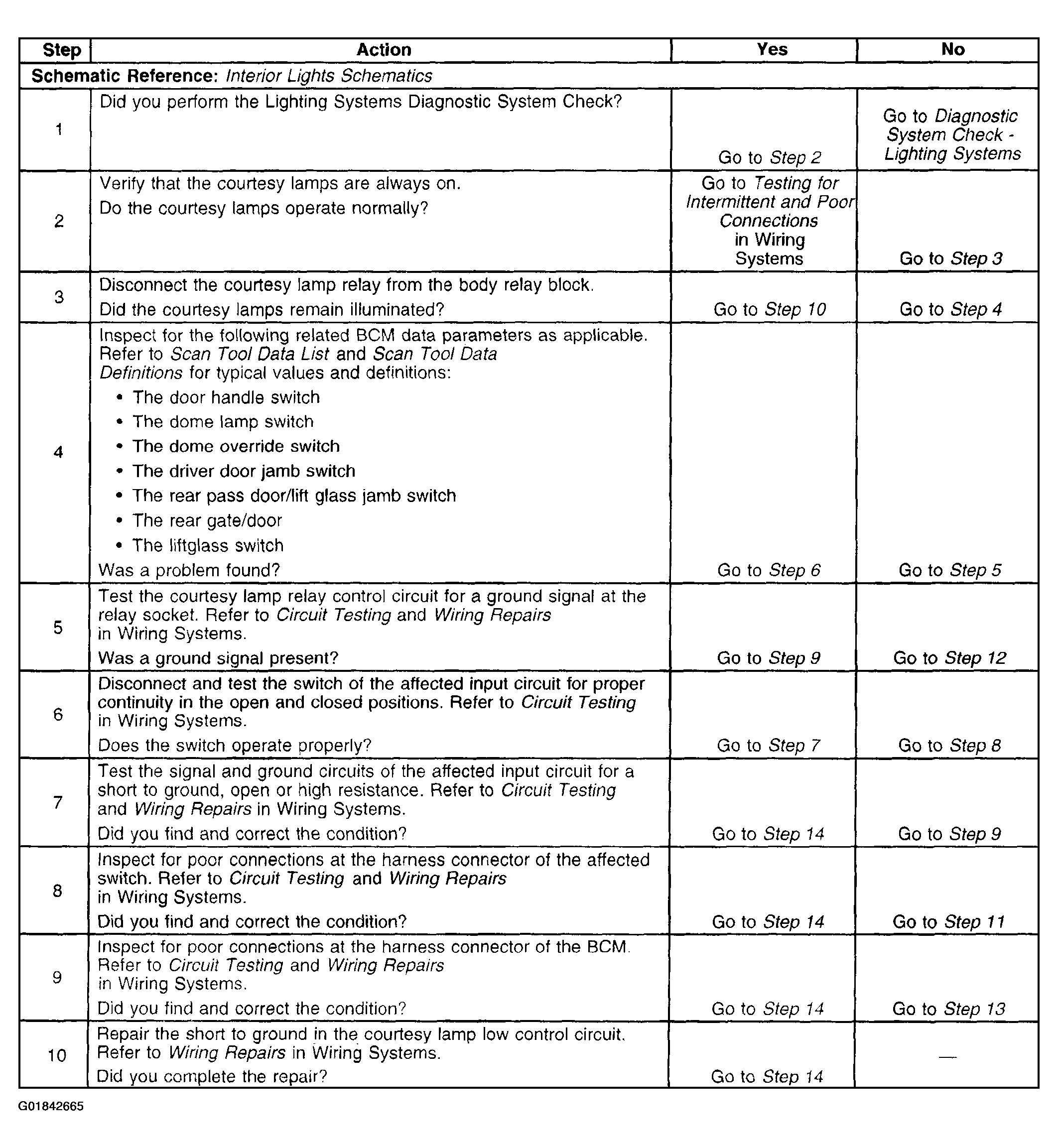

Fig 1: Courtesy Lamps Always On (Steps 1-10)

G01842665

Courtesy of GENERAL MOTORS CORP.

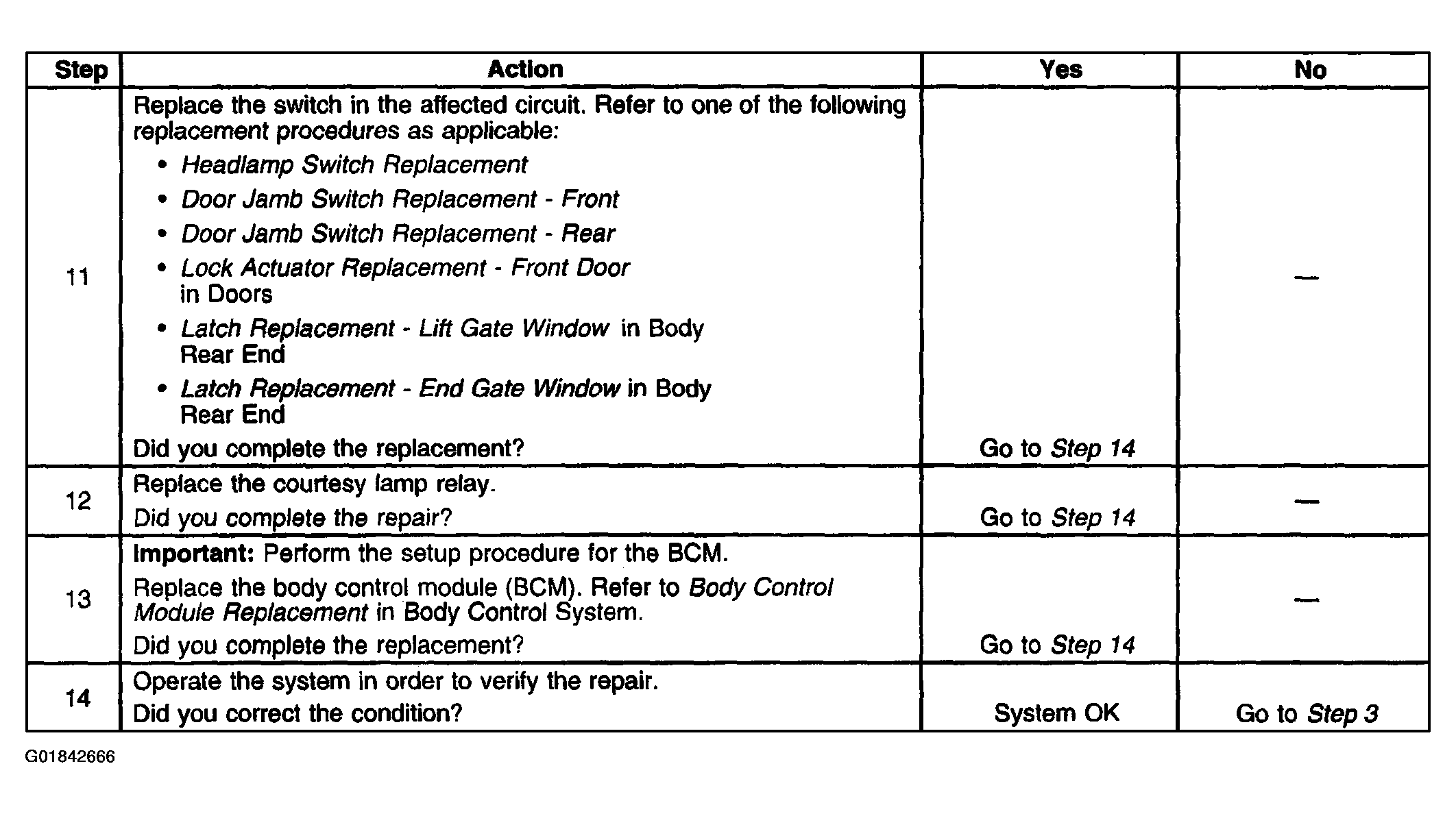

Fig 2: Courtesy Lamps Always On (Steps 11-14)

G01842666

Courtesy of GENERAL MOTORS CORP.
