Backup Lamps Inoperative

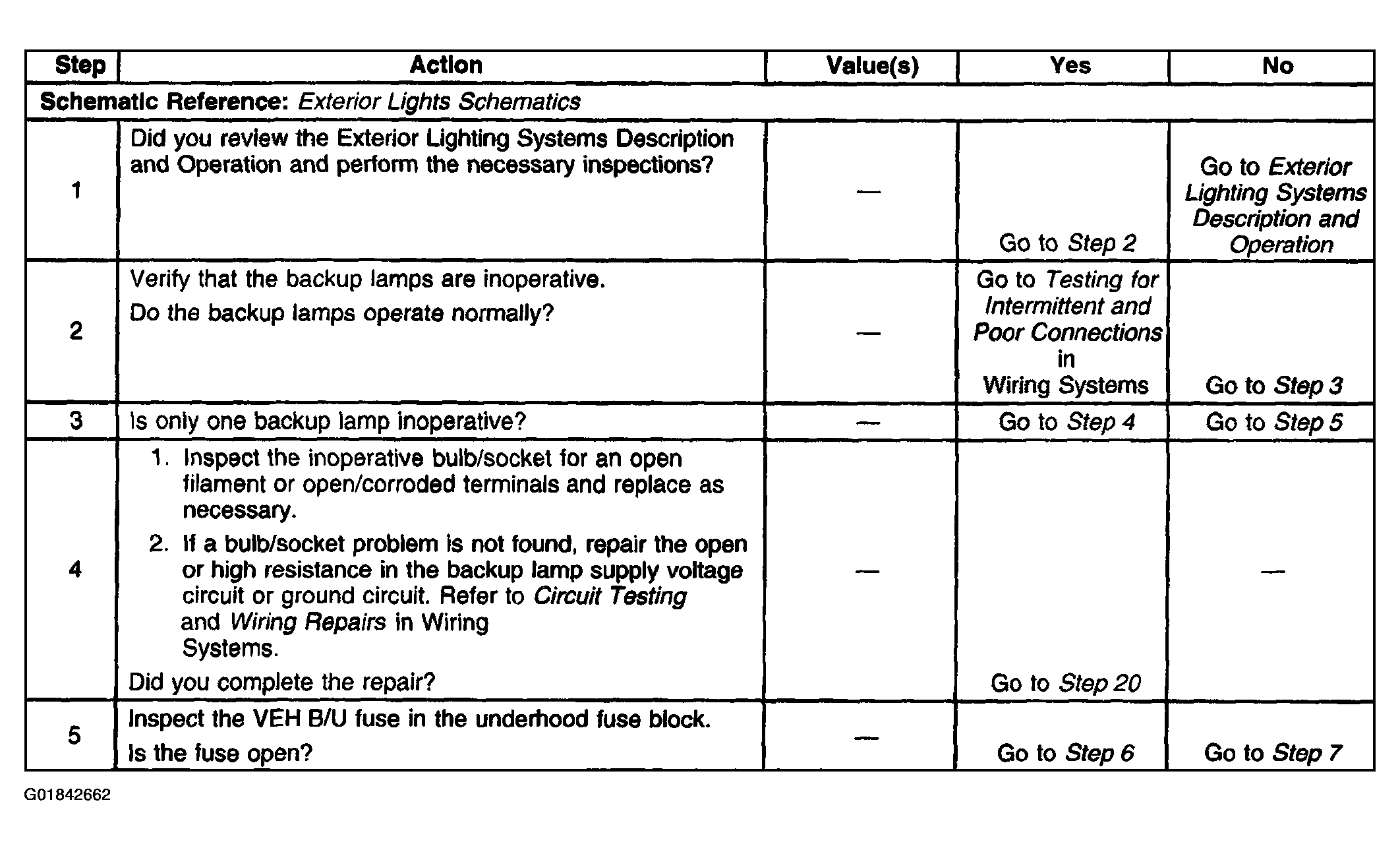

Fig 1: Backup Lamps Inoperative (Steps 1-5)
G01842662Courtesy of GENERAL MOTORS CORP.

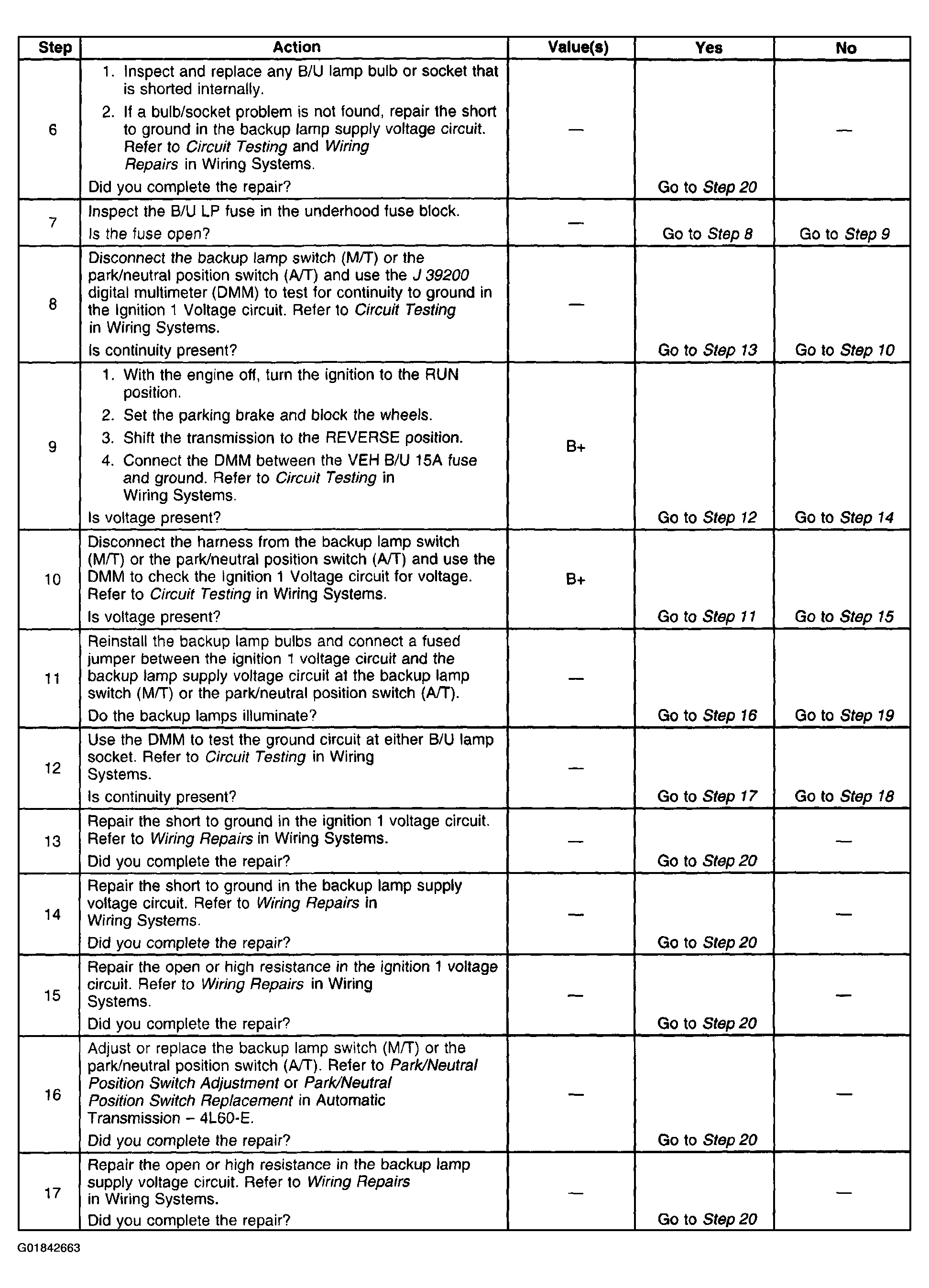

Fig 2: Backup Lamps Inoperative (Steps 6-17)
G01842663Courtesy of GENERAL MOTORS CORP.

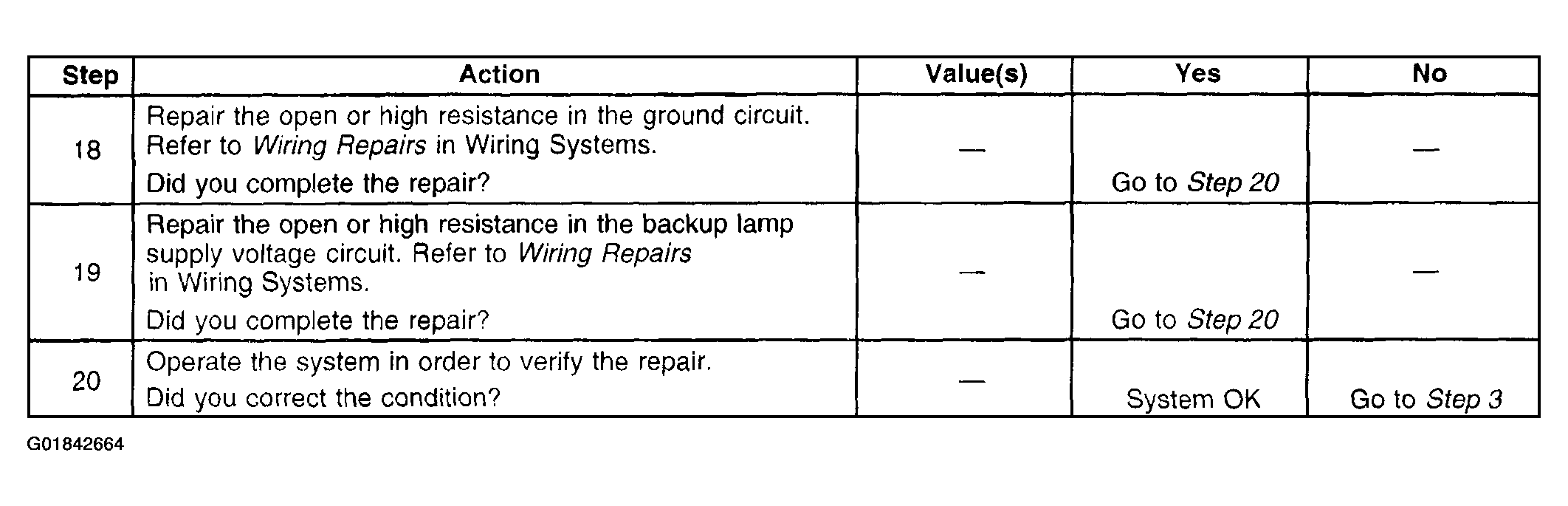

Fig 3: Backup Lamps Inoperative (Steps 18-20)
G01842664Courtesy of GENERAL MOTORS CORP.
