Test Description

The numbers below refer to the step numbers on the diagnostic table.

1. 2

   OFF is the normal state of the switch before activation.
2. 4

   OFF is the normal state of the switch before activation.
3. 5

   This step tests for a short to ground on the signal circuit.
4. 8

   After replacement of the BCM you must calibrate the new module for proper operation.

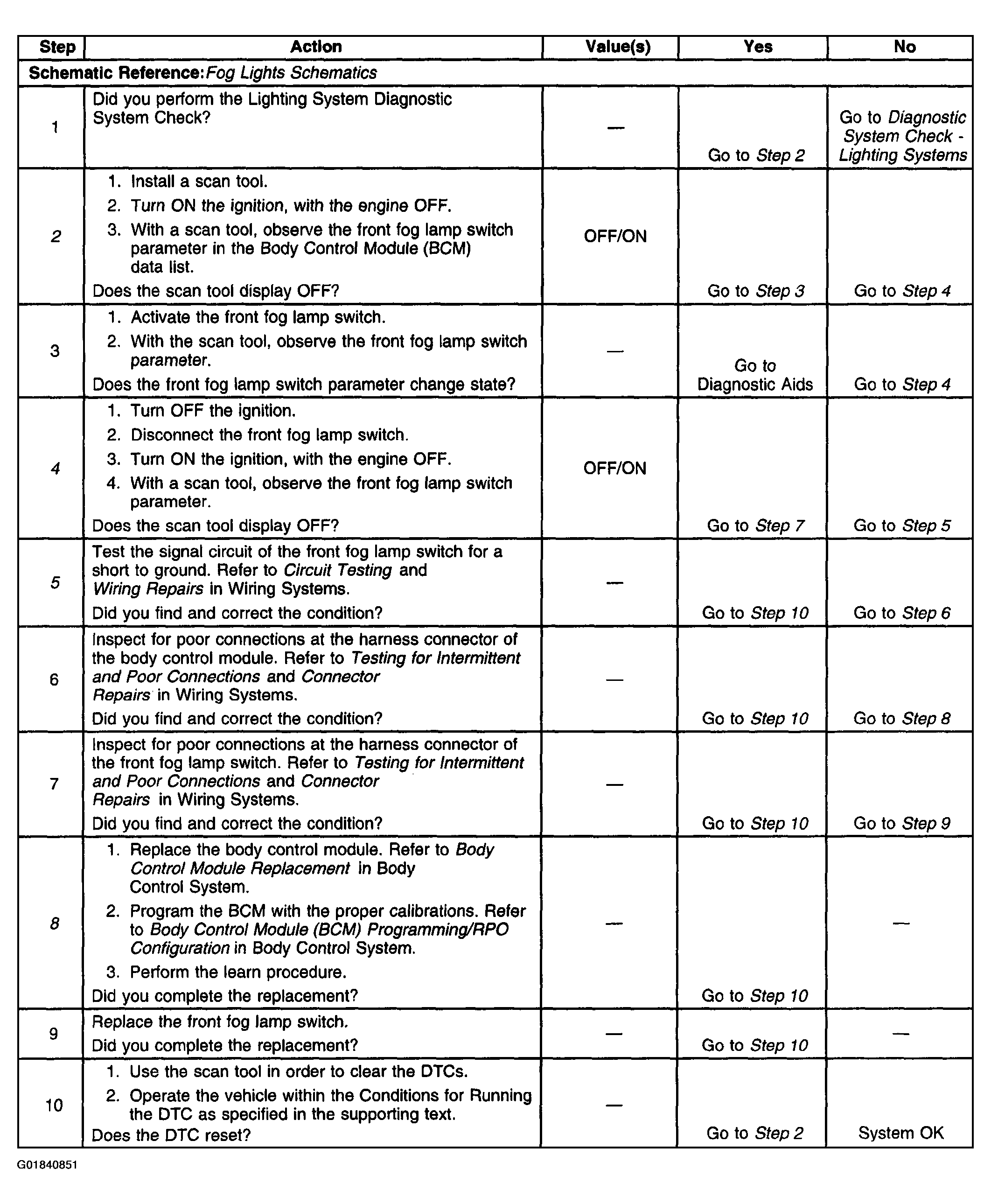

Fig 1: DTC B2527 Diagnostic Table (Steps 1-10)
Courtesy of GENERAL MOTORS CORP.
