Turn Signal Lamp
Turn Signal Lamp

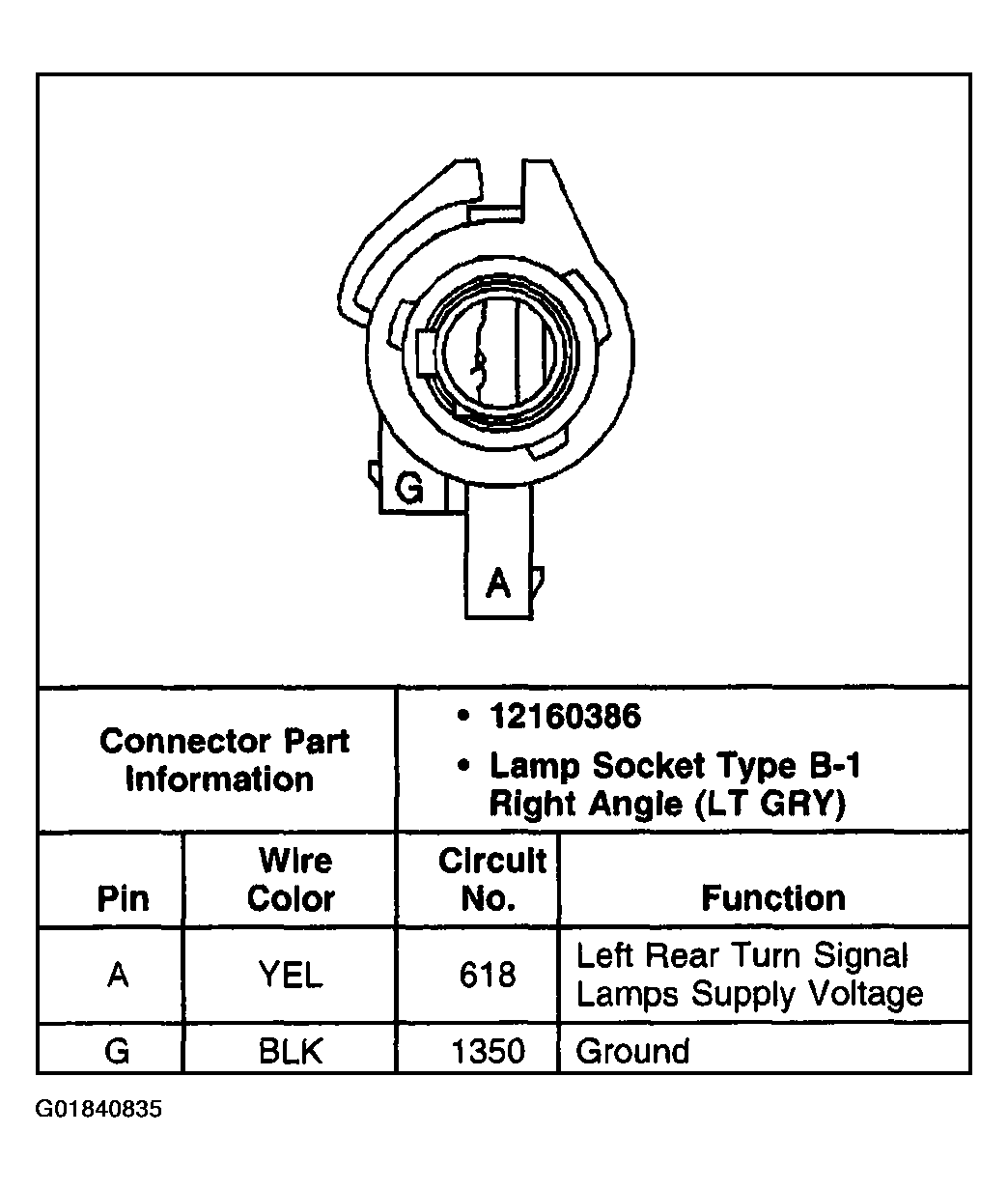

Fig 1: Turn Signal Lamp - Left Rear (Export Only)
Courtesy of GENERAL MOTORS CORP.

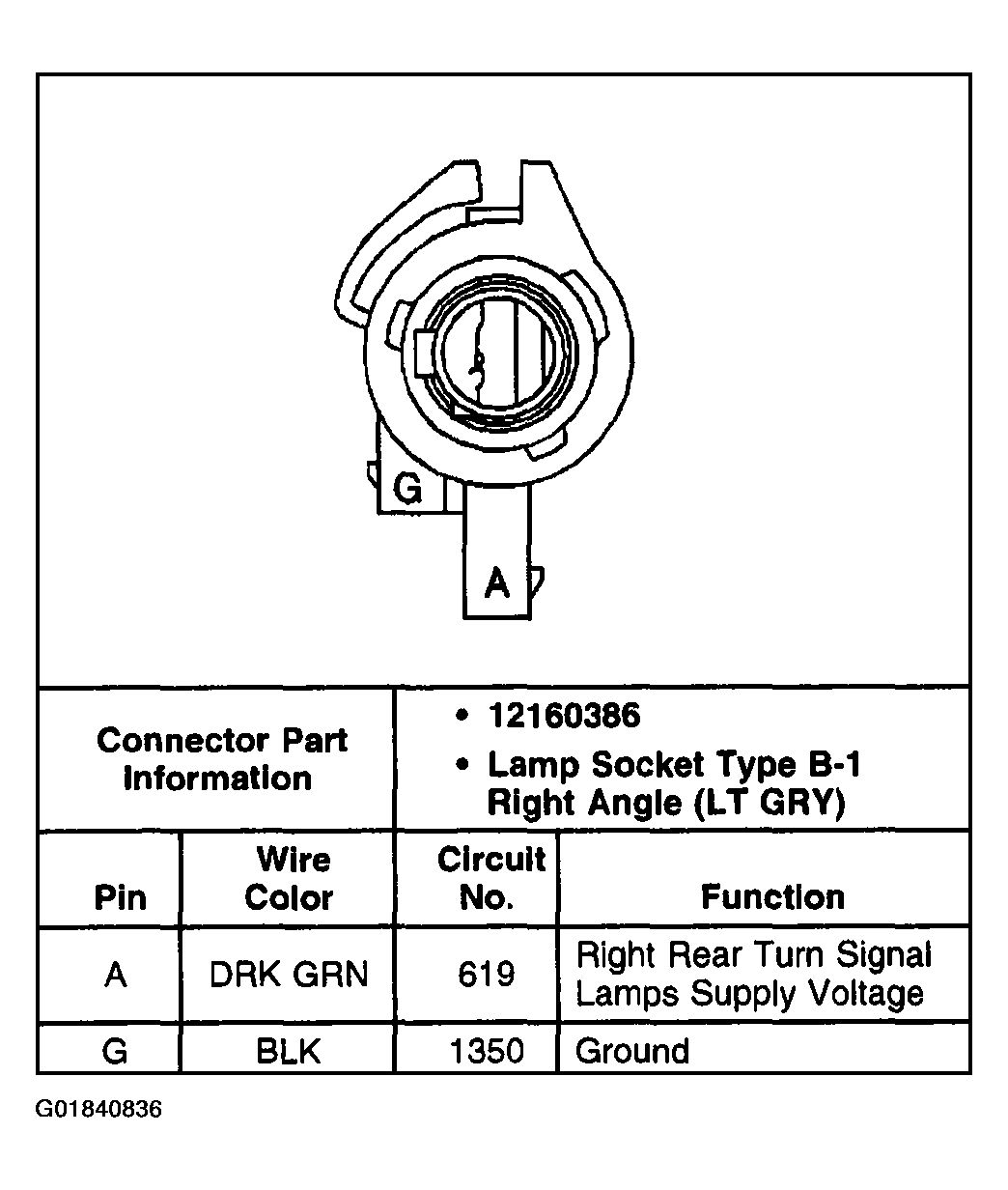

Fig 2: Turn Signal Lamp - Right Rear (Export Only)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
