Home >> Chevrolet >> 2002 >> Blazer 4D Utility, 4WD, Part Time >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting Systems >> Component Locator >> Lighting Systems Connector End Views >> Stoplamp Switch - Automatic Transmission

Stoplamp Switch - Automatic Transmission

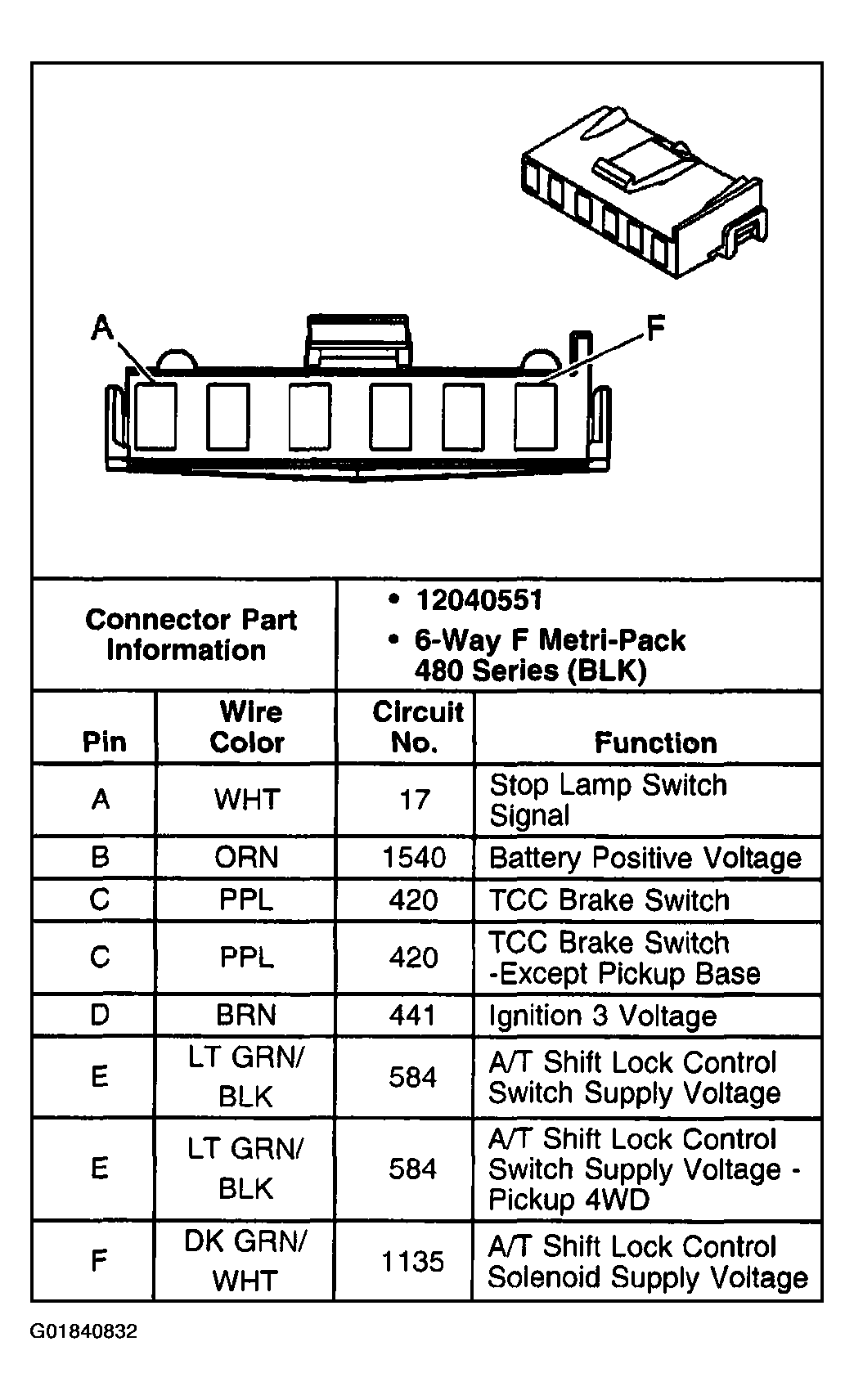

Fig 1: Stoplamp Switch - Automatic Transmission Only

G01840832

Courtesy of GENERAL MOTORS CORP.
