Lighting Systems Connector End Views
>>
Park/Turn Signal Lamp
Park/Turn Signal Lamp
Fig 1: Park/Turn Signal Lamp - Left Front
Courtesy of GENERAL MOTORS CORP.

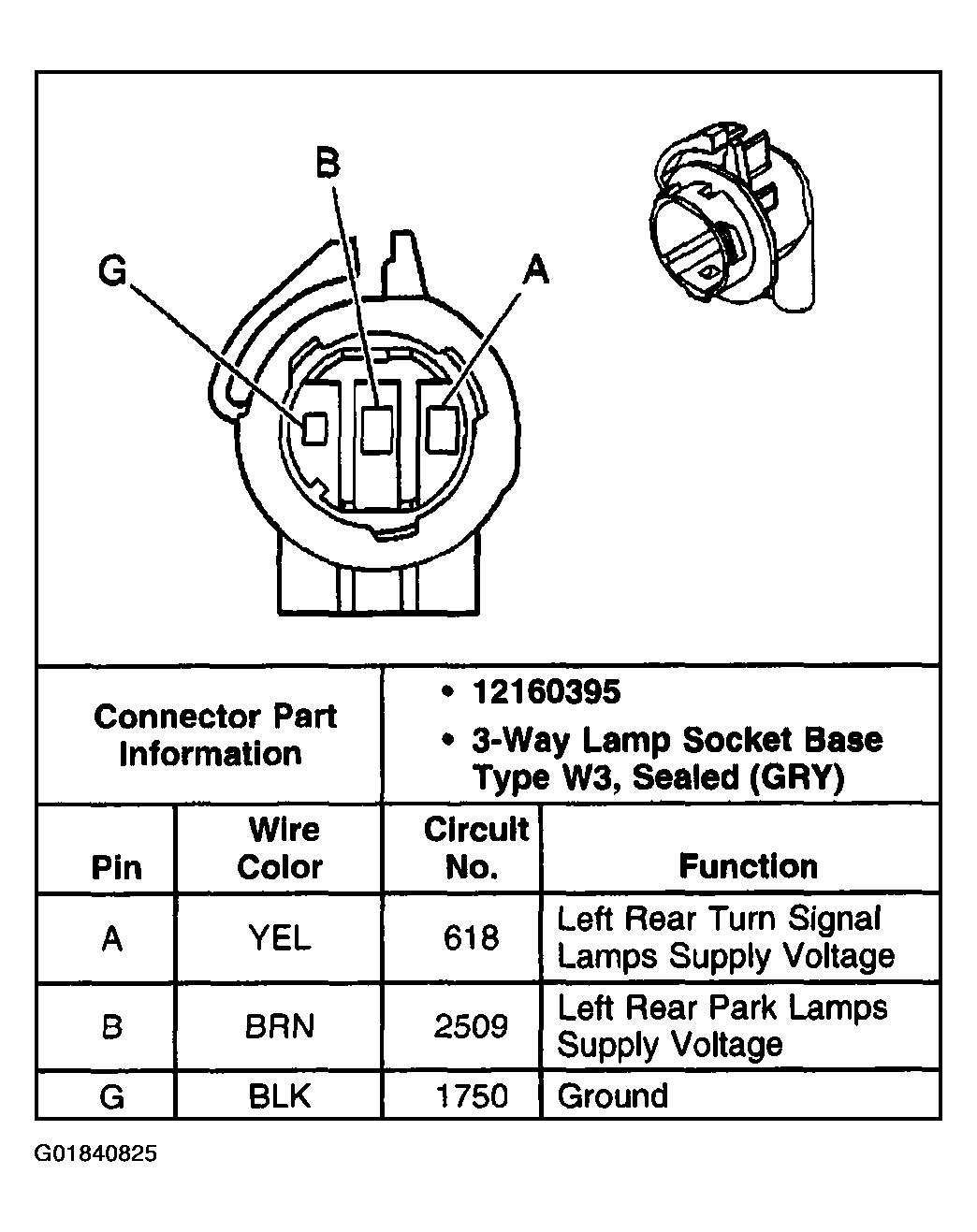

Fig 2: Park/Turn Signal Lamp - Left Rear (Pickup)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Park/Turn Signal Lamp - Left Rear (Utility)
Courtesy of GENERAL MOTORS CORP.

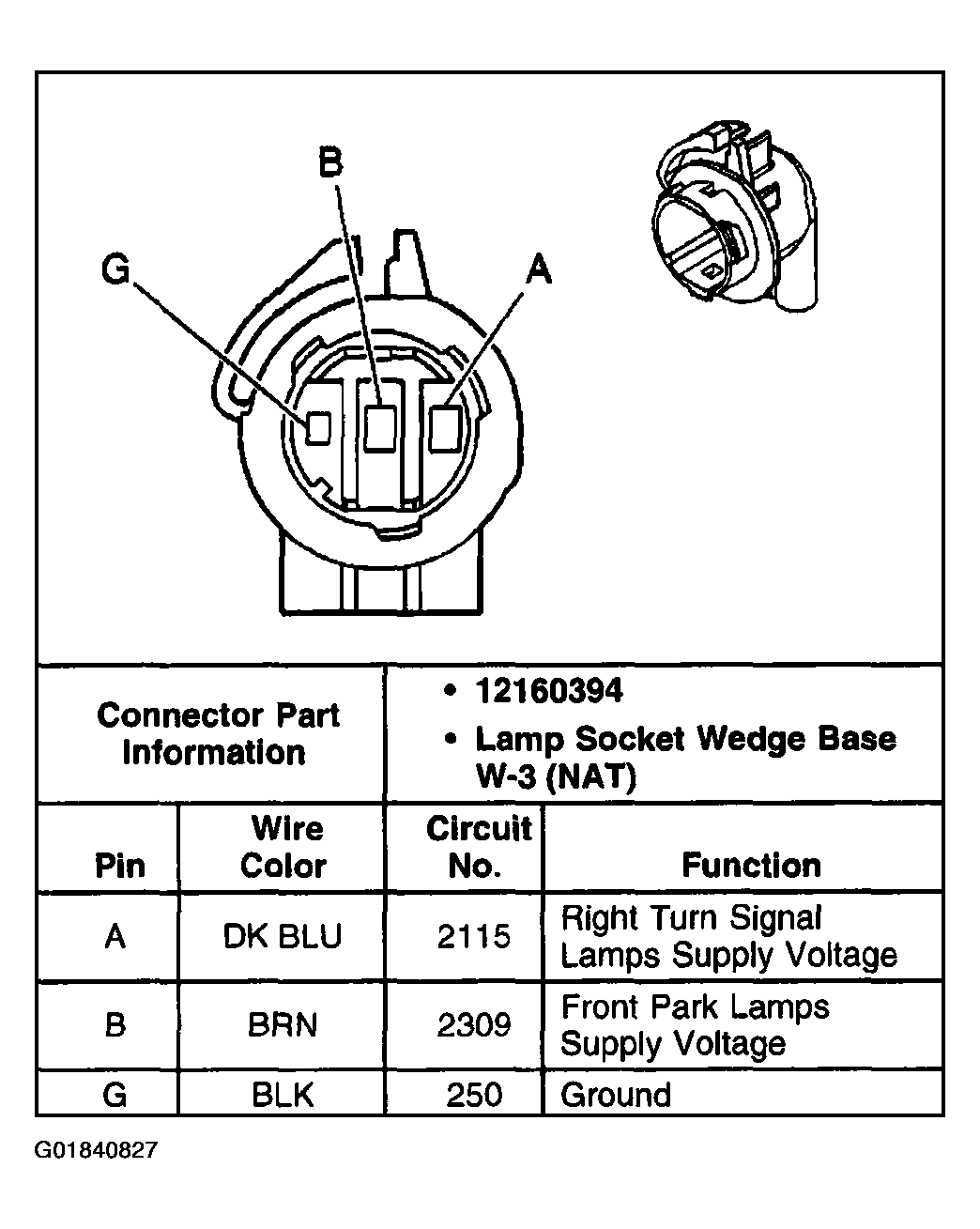

Fig 4: Park/Turn Signal Lamp - Right Front
Courtesy of GENERAL MOTORS CORP.

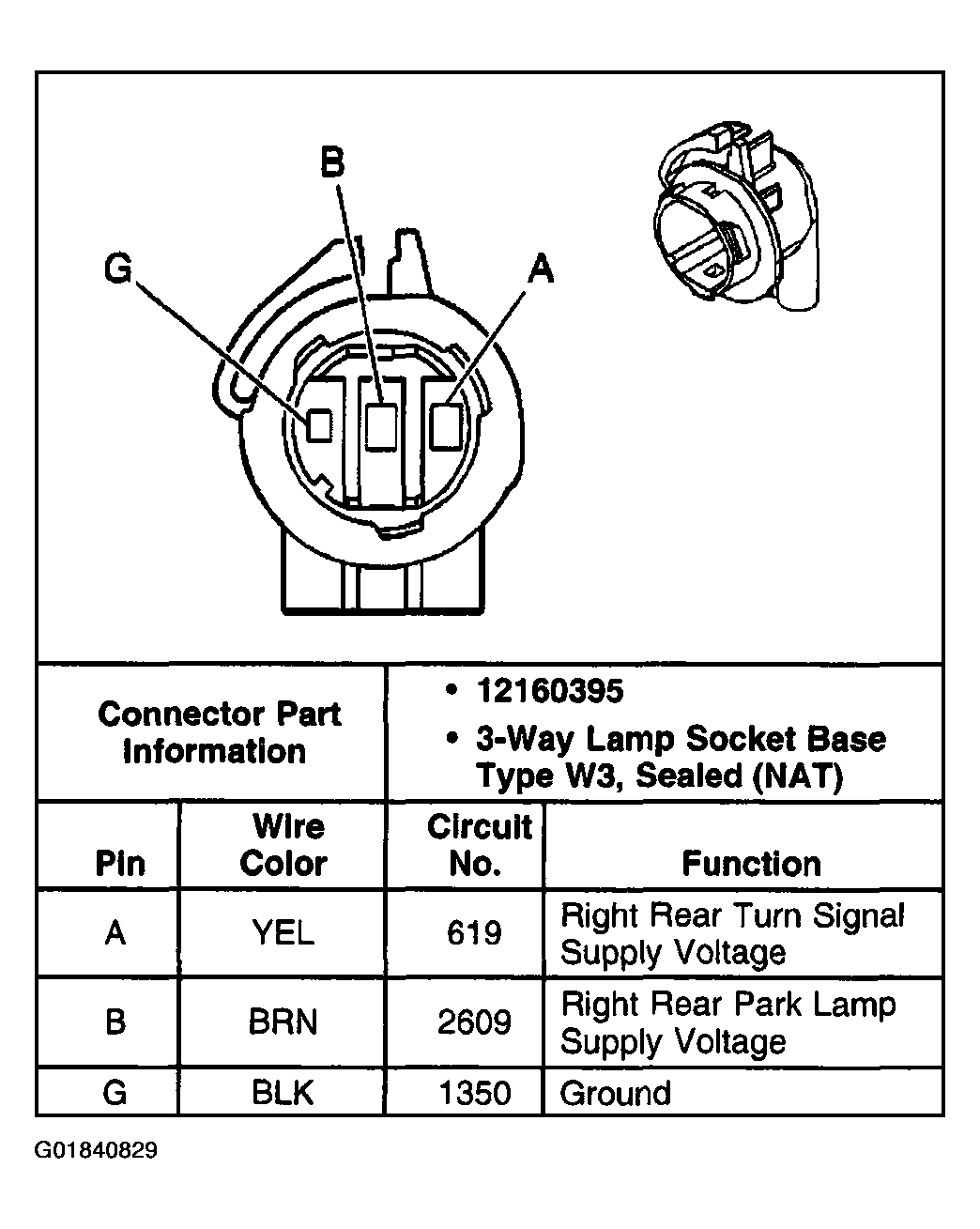

Fig 5: Park/Turn Signal Lamp - Right Rear (Pickup)
Courtesy of GENERAL MOTORS CORP.

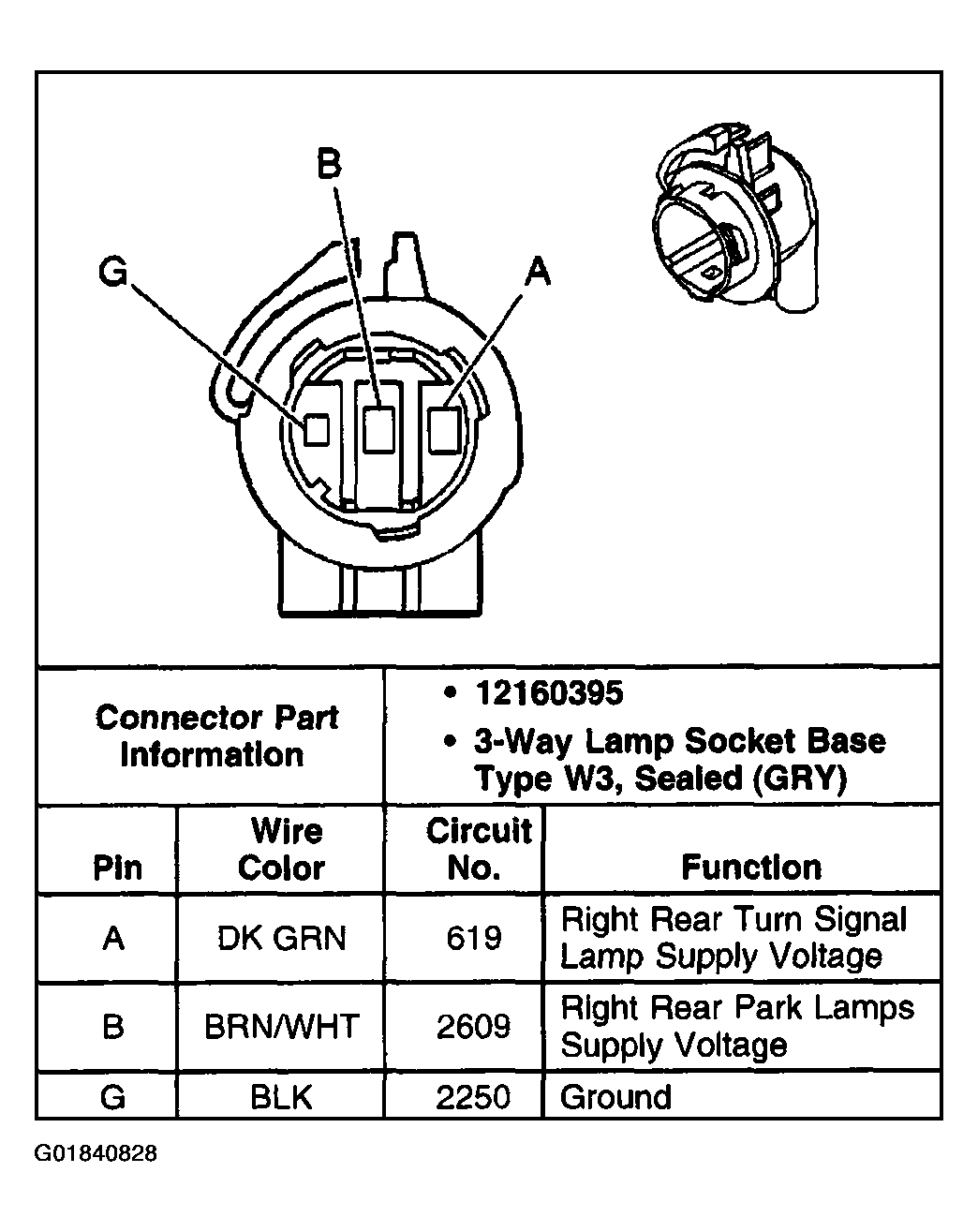

Fig 6: Park/Turn Signal Lamp - Right Rear (Utility)
Courtesy of GENERAL MOTORS CORP.
