License Lamp
License Lamp

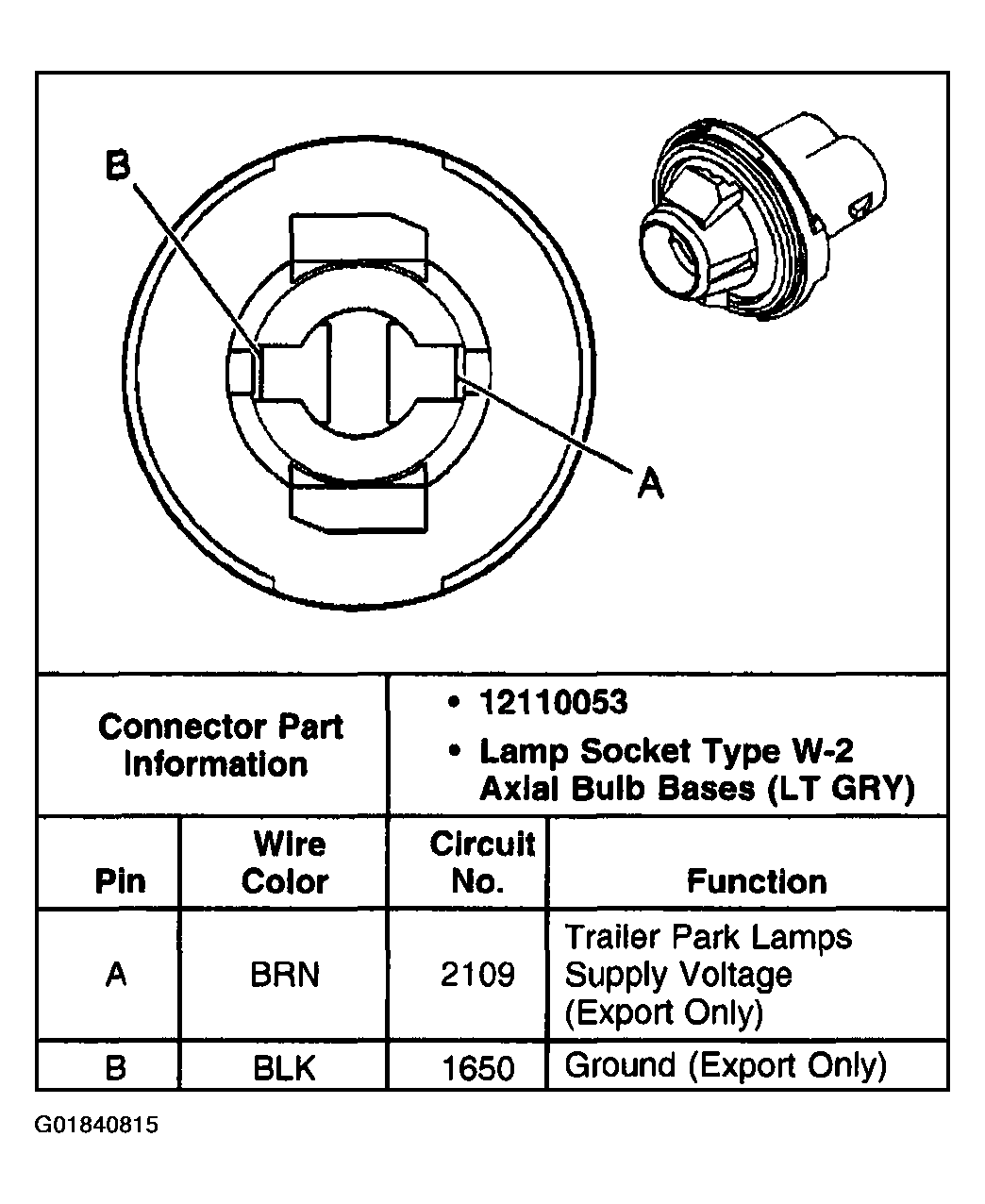

Fig 1: License Lamp - Center - Export Only
Courtesy of GENERAL MOTORS CORP.

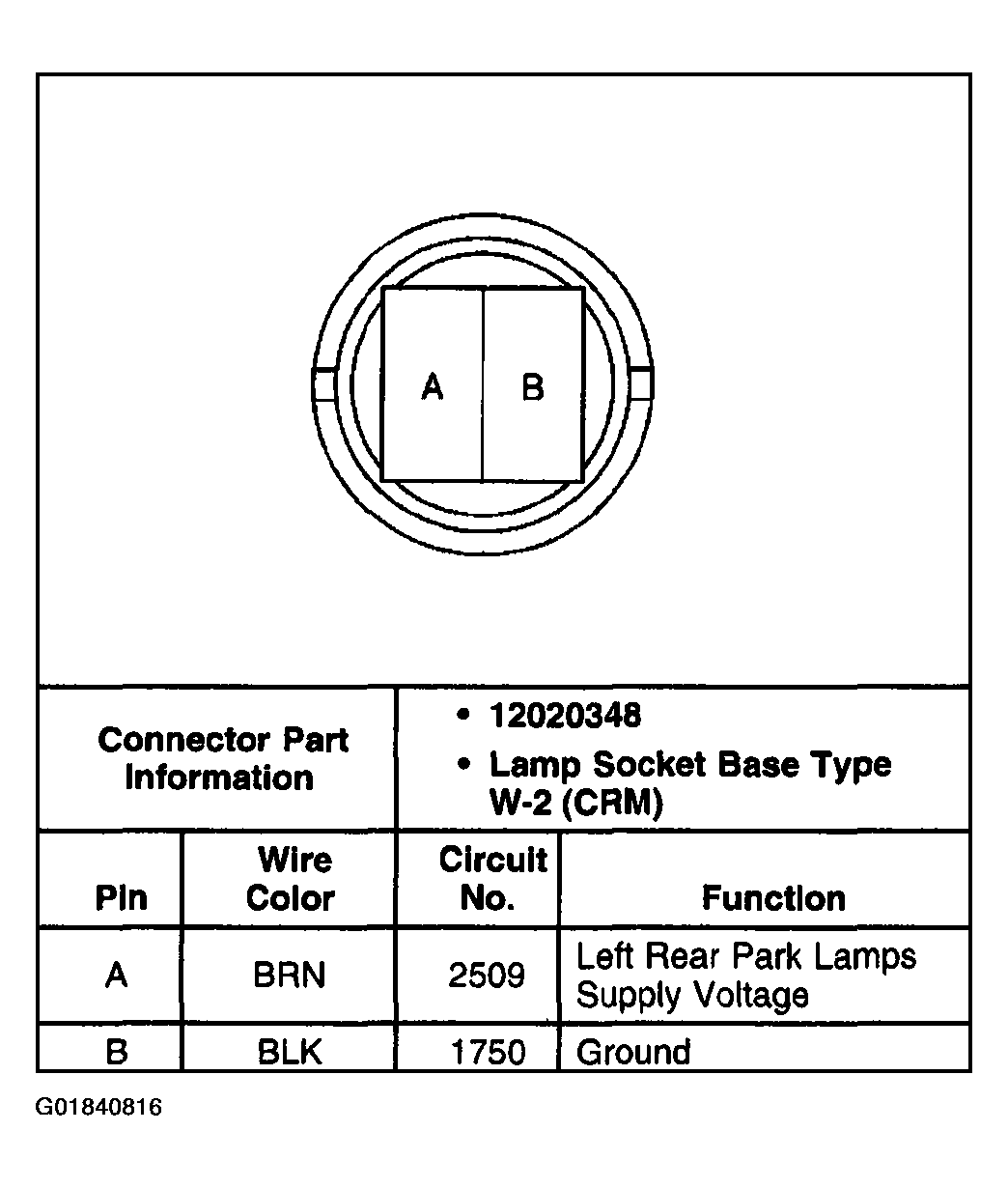

Fig 2: License Lamp - Left Rear - Pickup w/o Rear Step Bumper
Courtesy of GENERAL MOTORS CORP.

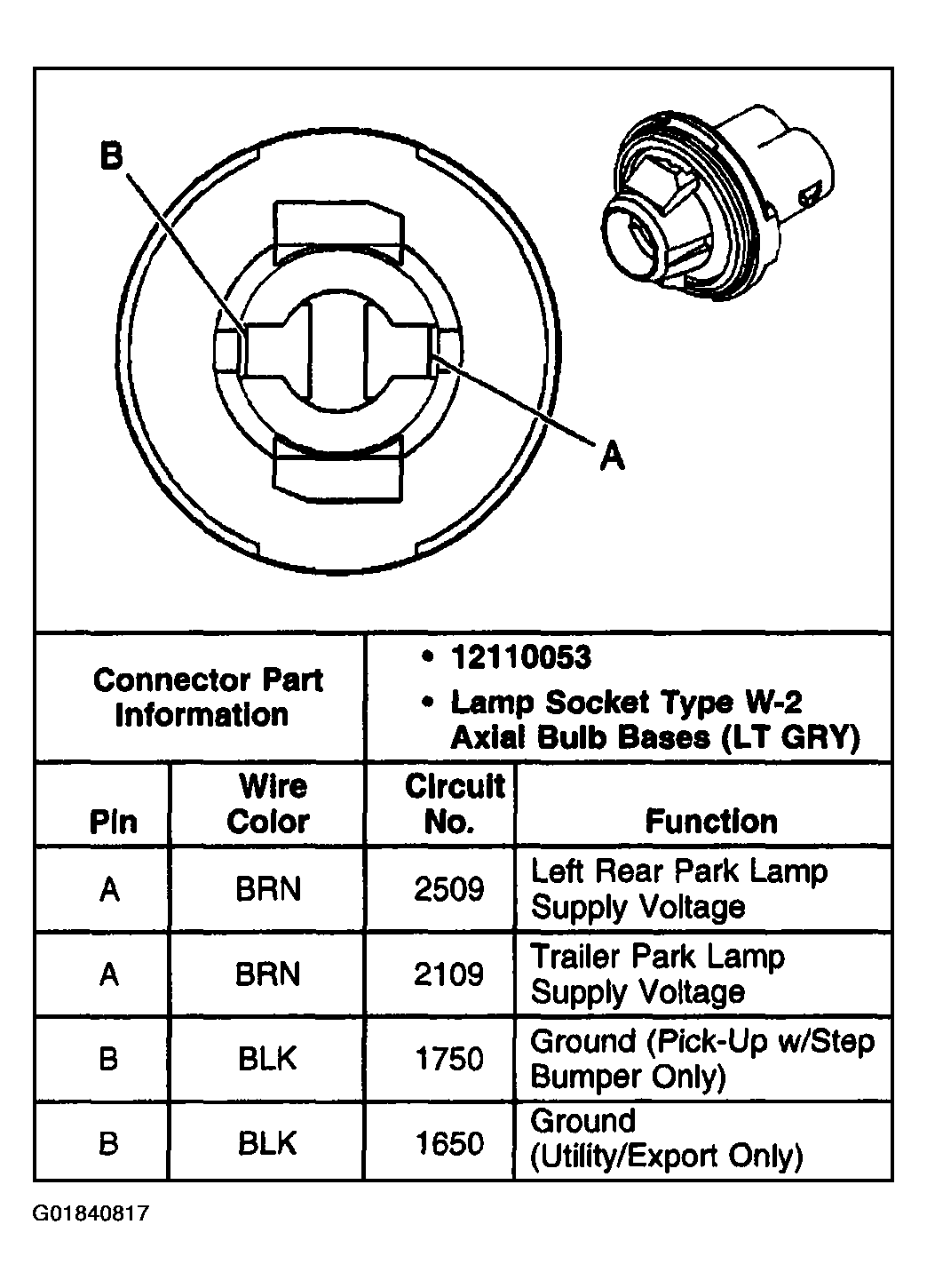

Fig 3: License Lamp - Left Rear - Utility, Export & Pickup w/ Step Bumper
Courtesy of GENERAL MOTORS CORP.

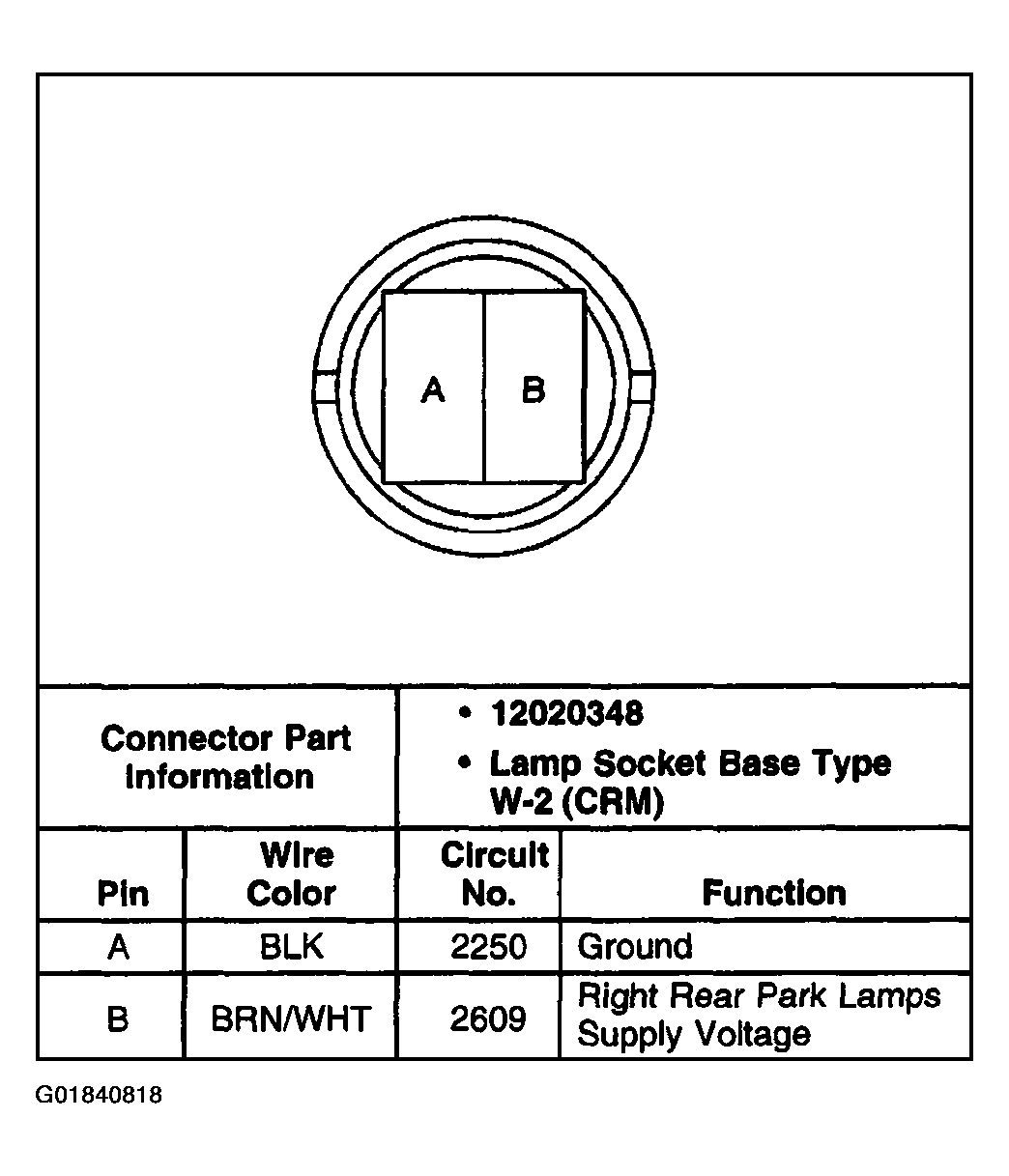

Fig 4: License Lamp - Right Rear - Pickup w/o Rear Step Bumper
Courtesy of GENERAL MOTORS CORP.

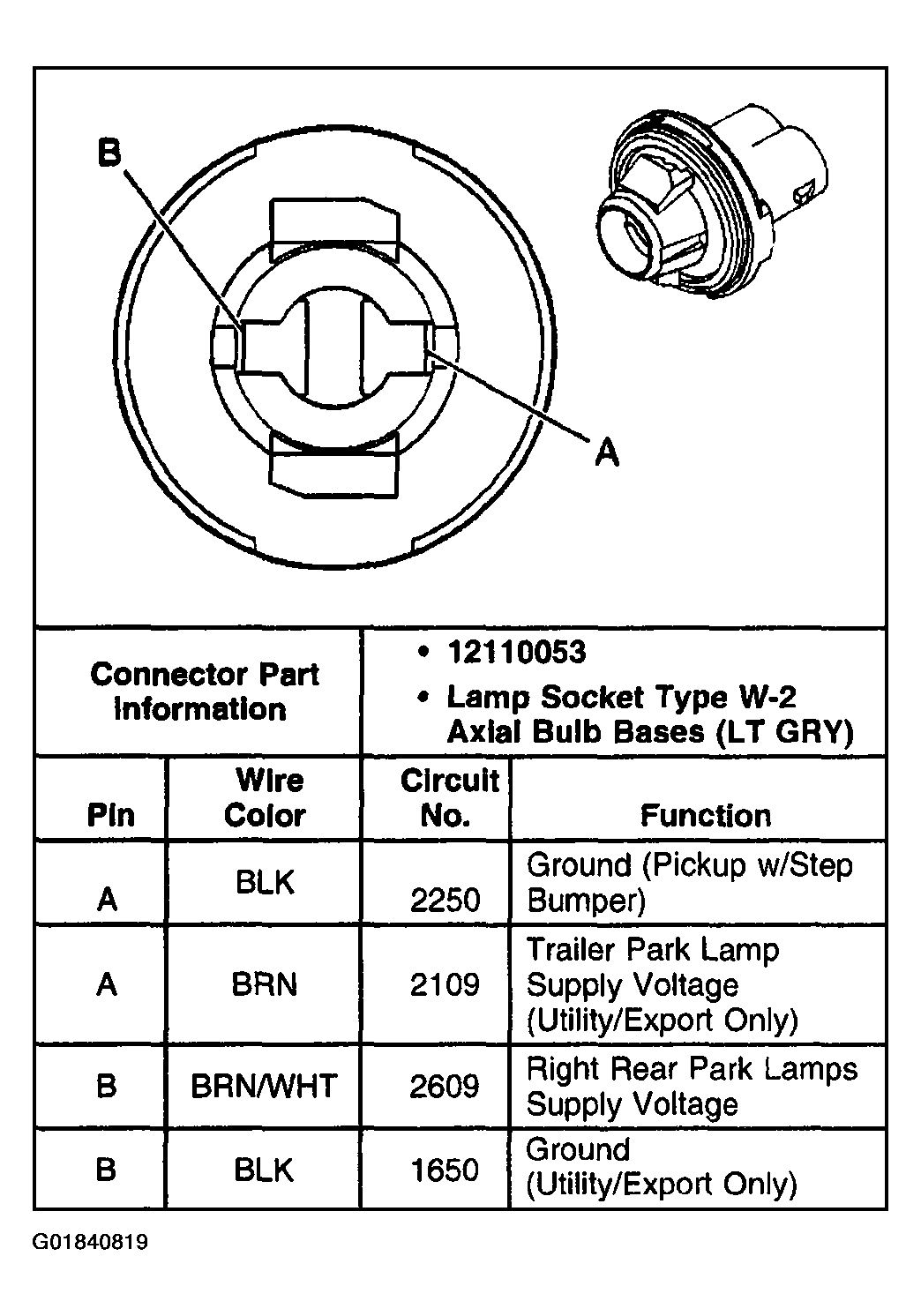

Fig 5: License Lamp - Right Rear - Utility, Export & Pickup w/ Step Bumper
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
