Lighting Systems Connector End Views: Headlamp

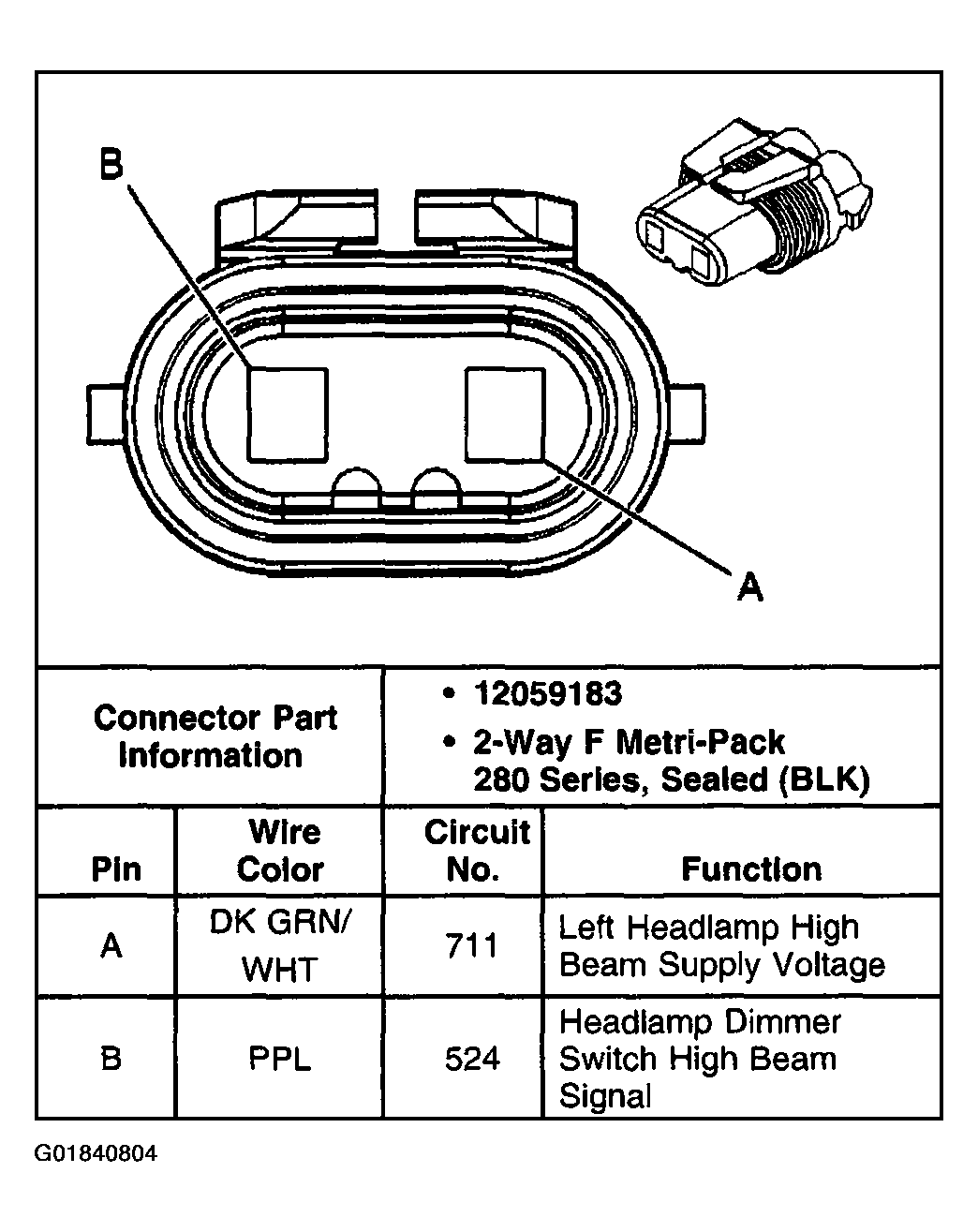

Fig 1: Headlamp - High Beam - Left

Courtesy of GENERAL MOTORS CORP.

Fig 2: Headlamp - High Beam - Right

Courtesy of GENERAL MOTORS CORP.

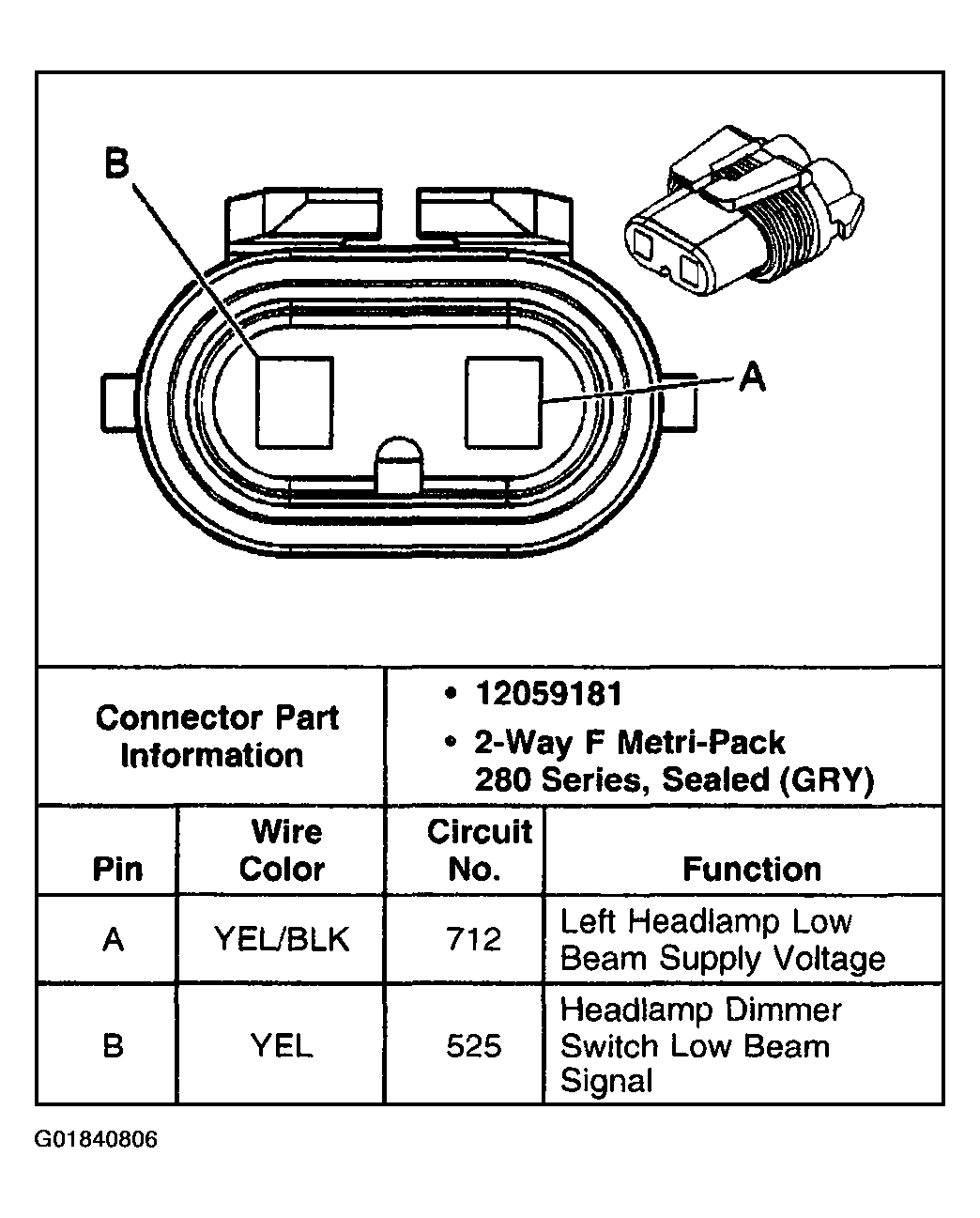

Fig 3: Headlamp - Low Beam - Left

Courtesy of GENERAL MOTORS CORP.

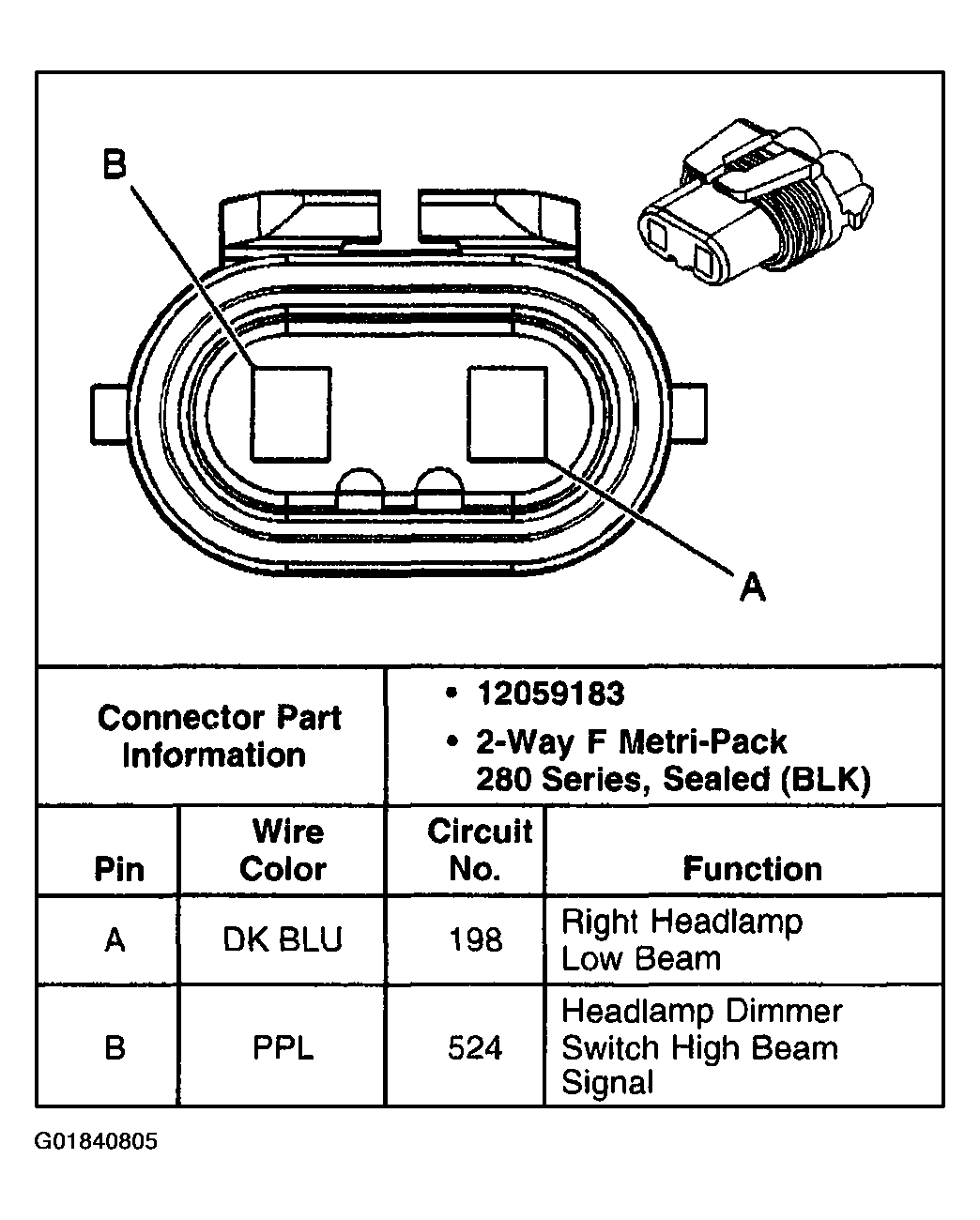

Fig 4: Headlamp - Low Beam - Right

Courtesy of GENERAL MOTORS CORP.
