Fog Lamp

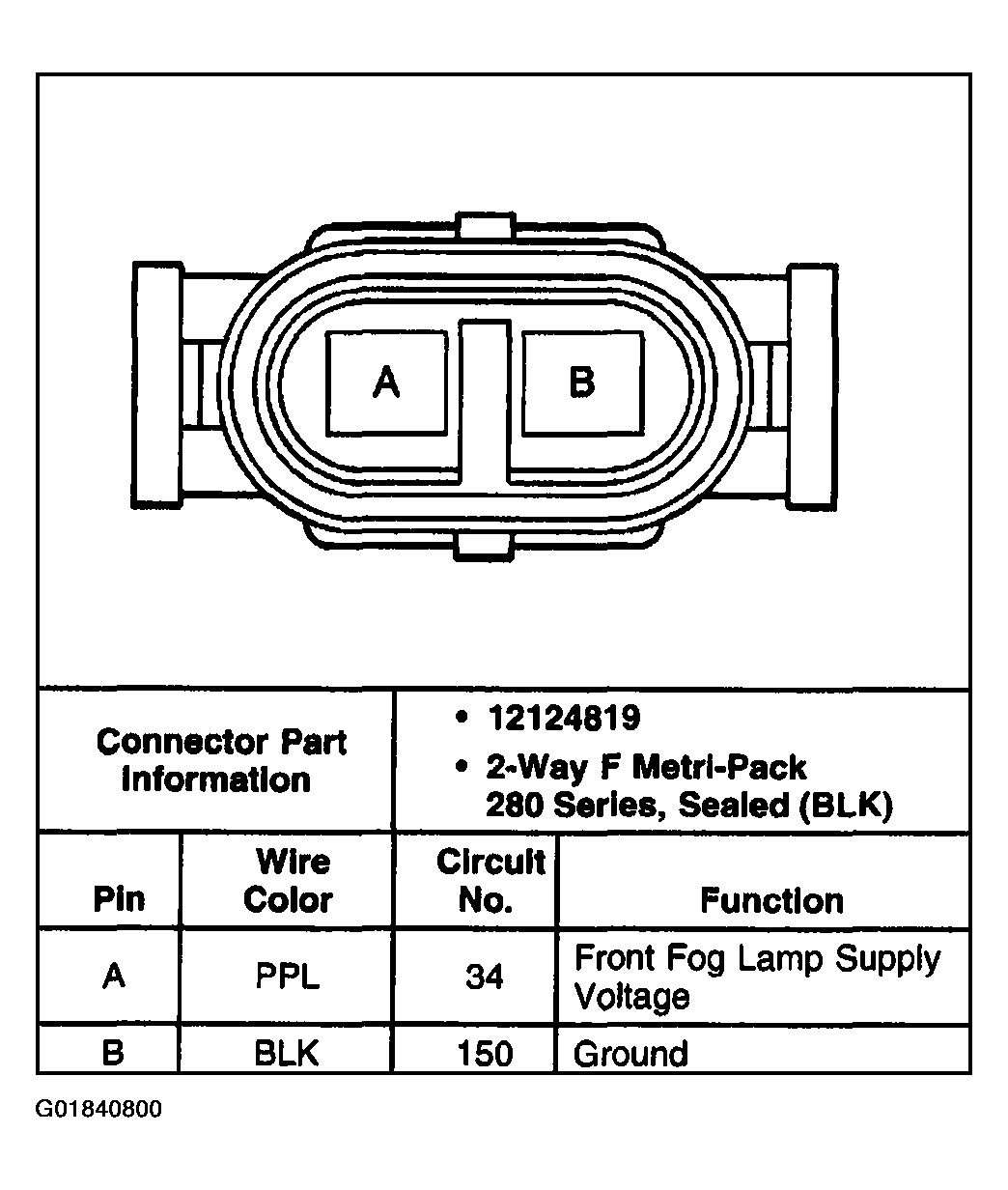

Fig 1: Fog Lamp - Left Front
G01840800Courtesy of GENERAL MOTORS CORP.

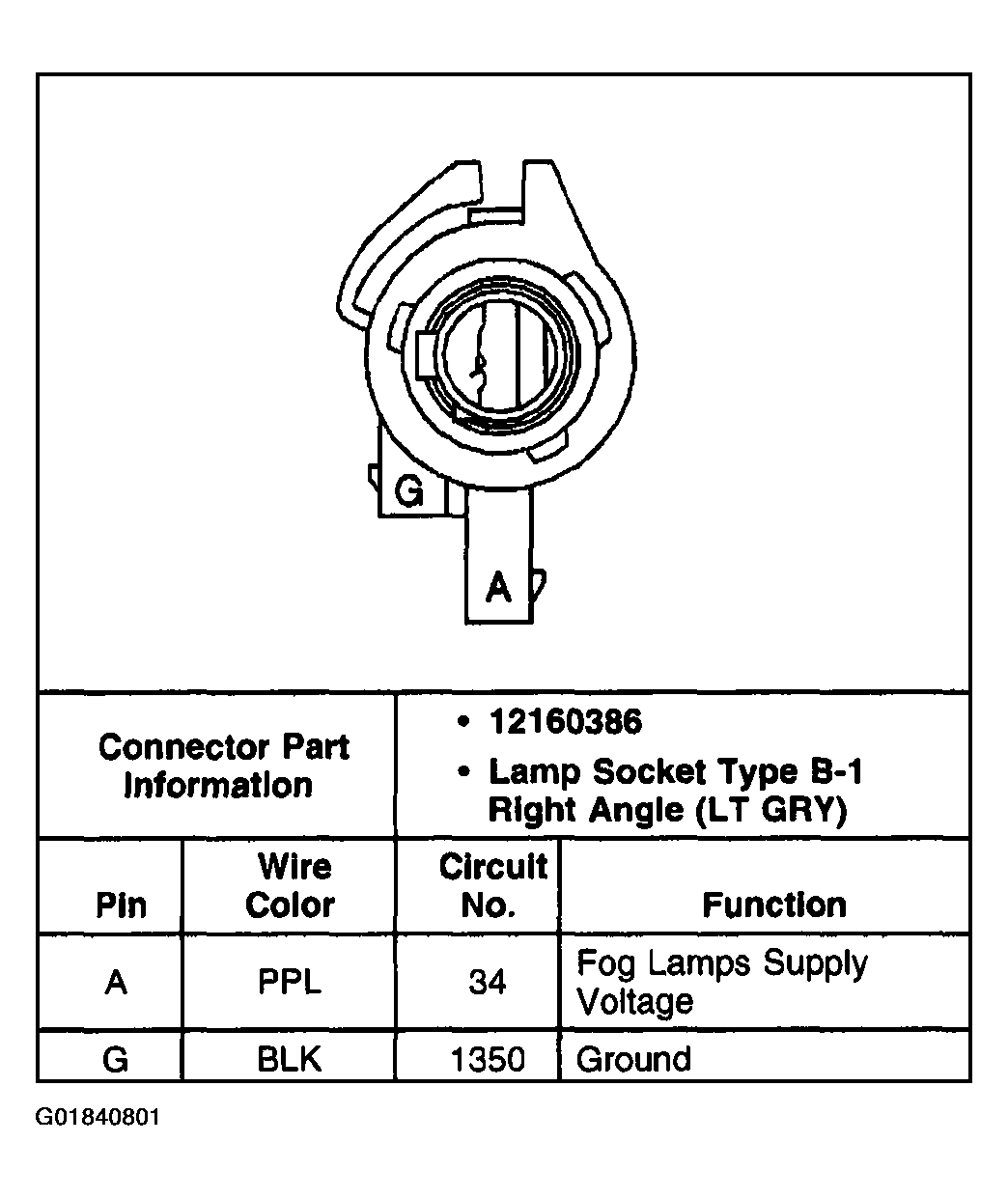

Fig 2: Fog Lamp - Left Rear/Right Rear (Export Only)
G01840801Courtesy of GENERAL MOTORS CORP.

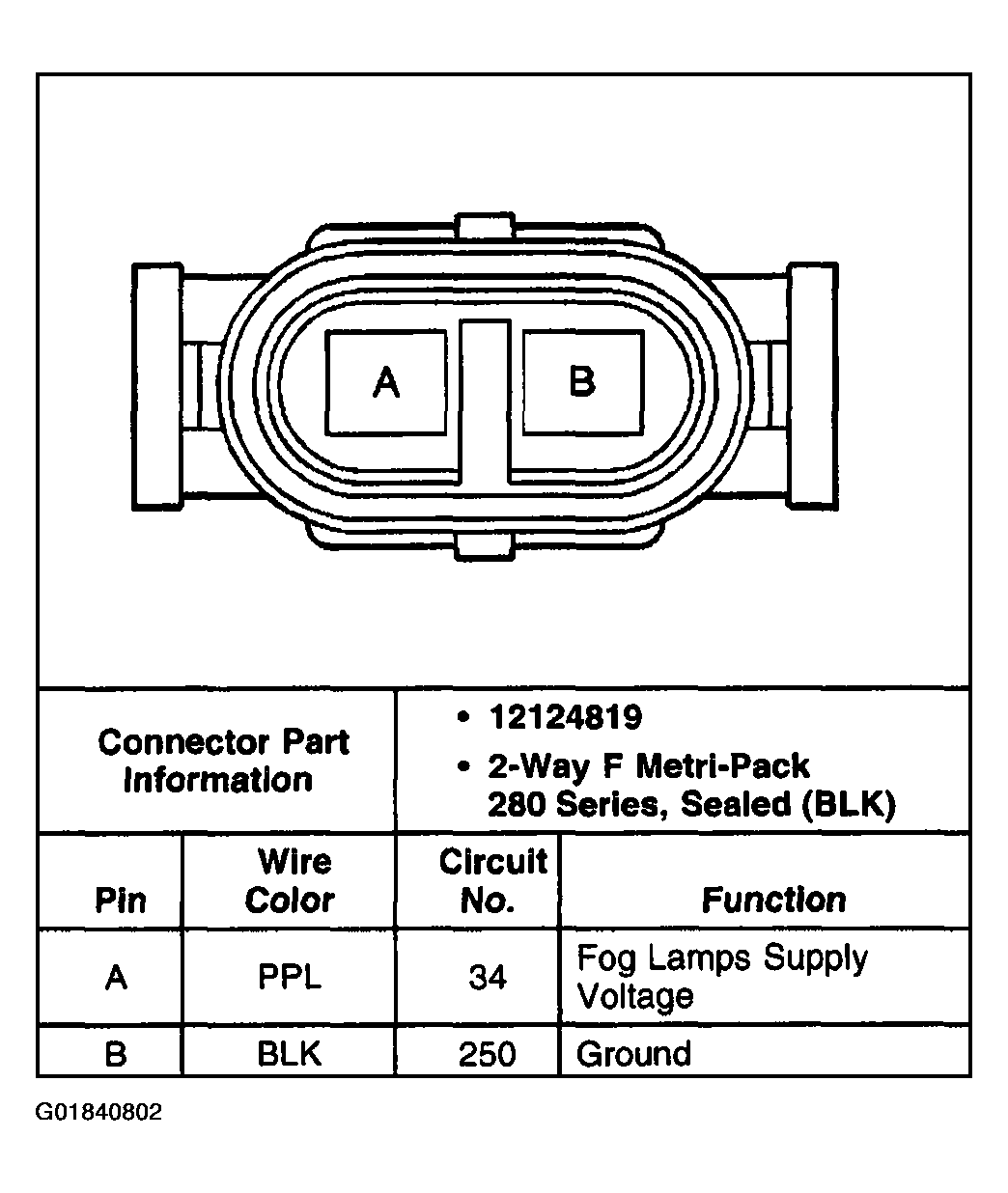

Fig 3: Fog Lamp - Right Front
G01840802Courtesy of GENERAL MOTORS CORP.

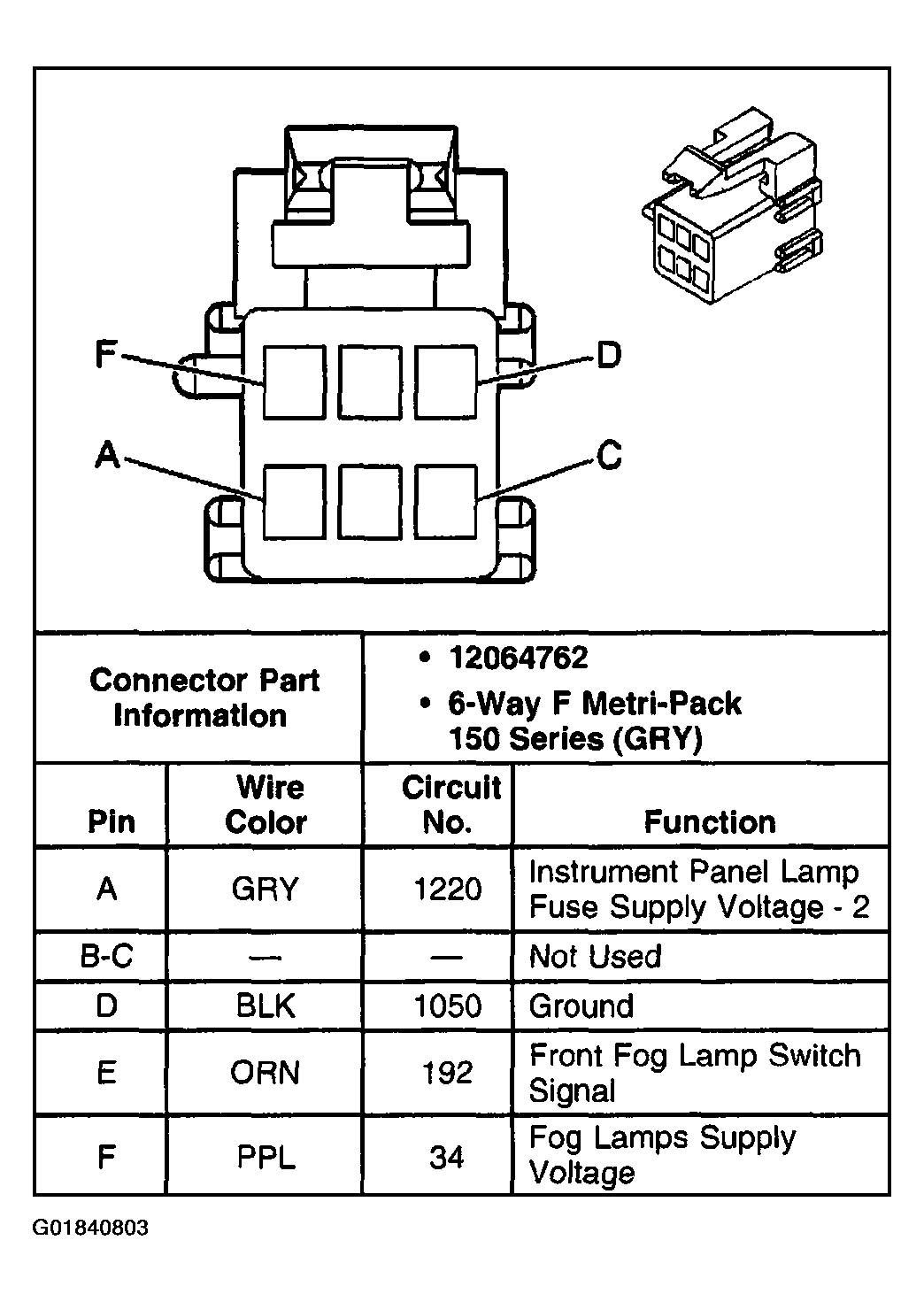

Fig 4: Fog Lamp Switch
G01840803Courtesy of GENERAL MOTORS CORP.
