Center High Mounted Stop Lamp

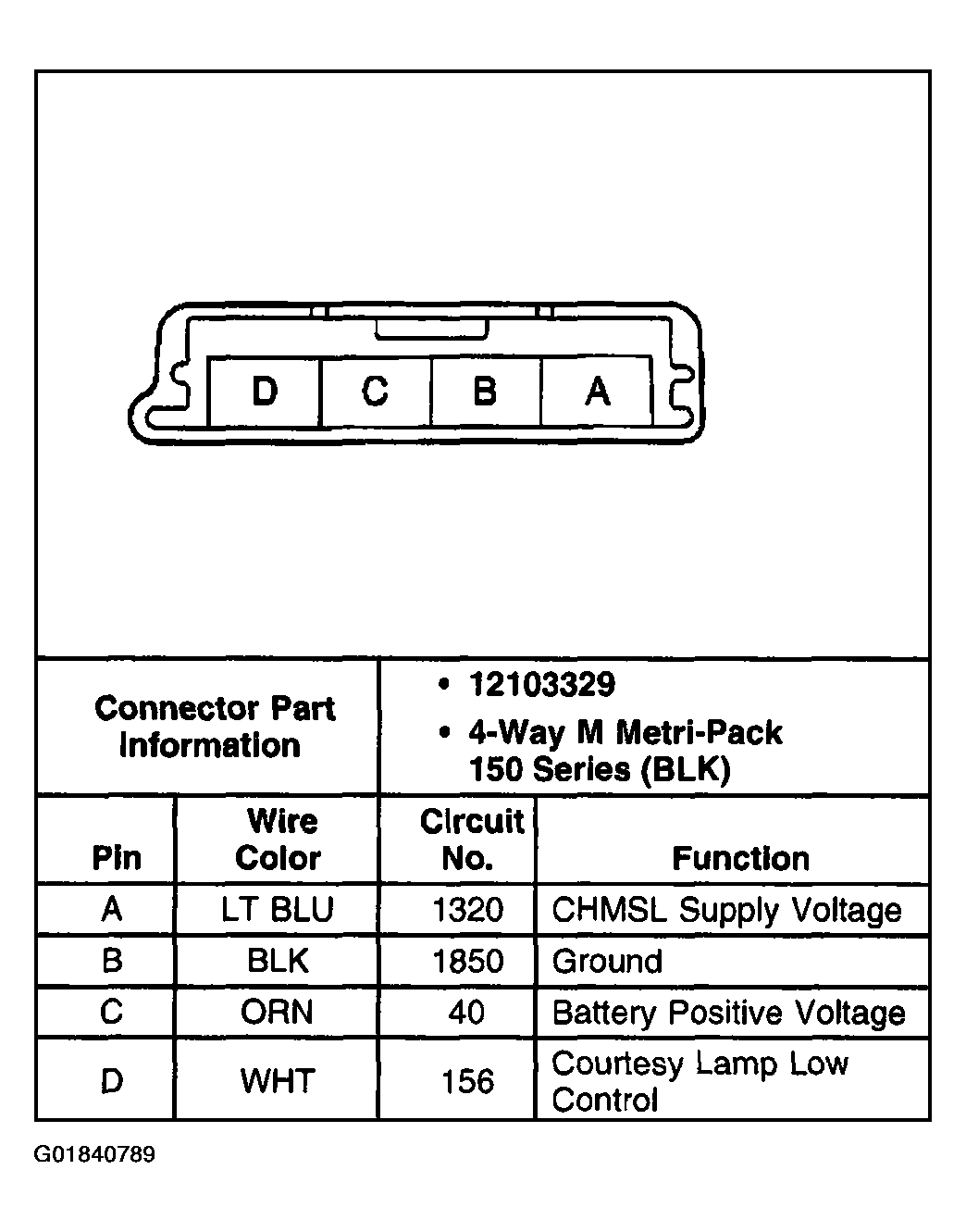

Fig 1: Center High Mounted Stop Lamp (CHMSL) - Pickup Only
G01840789Courtesy of GENERAL MOTORS CORP.

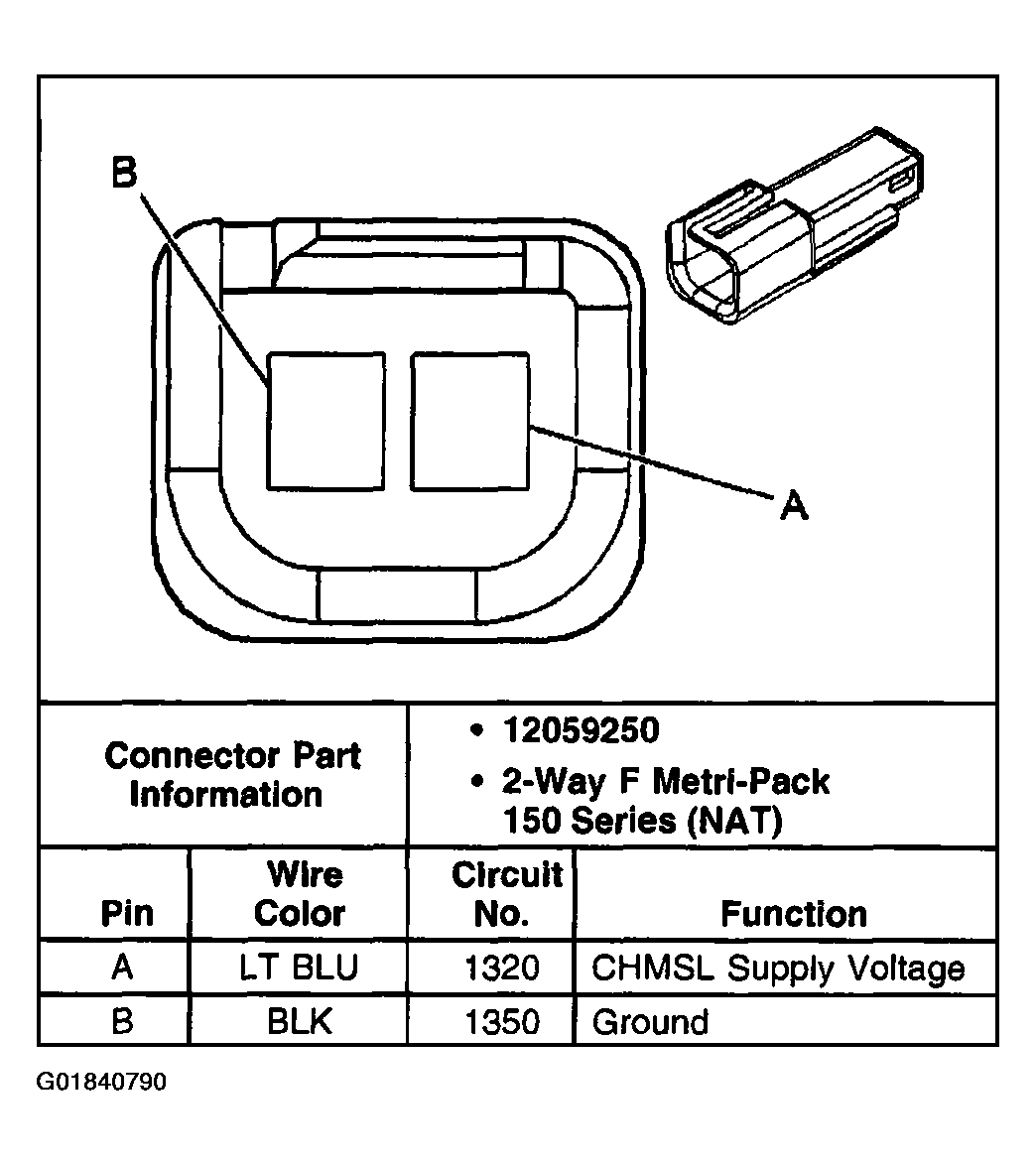

Fig 2: Center High Mounted Stop Lamp (CHMSL) - Utility w/ Endgate
G01840790Courtesy of GENERAL MOTORS CORP.
